User Manual for the Type 8370
WSM 6+ Transponder
UM-8370
Issue A Rev 1
Section 11 – Technical Specifications 33
11.2.2 External Remote Release Option Wiring Connections

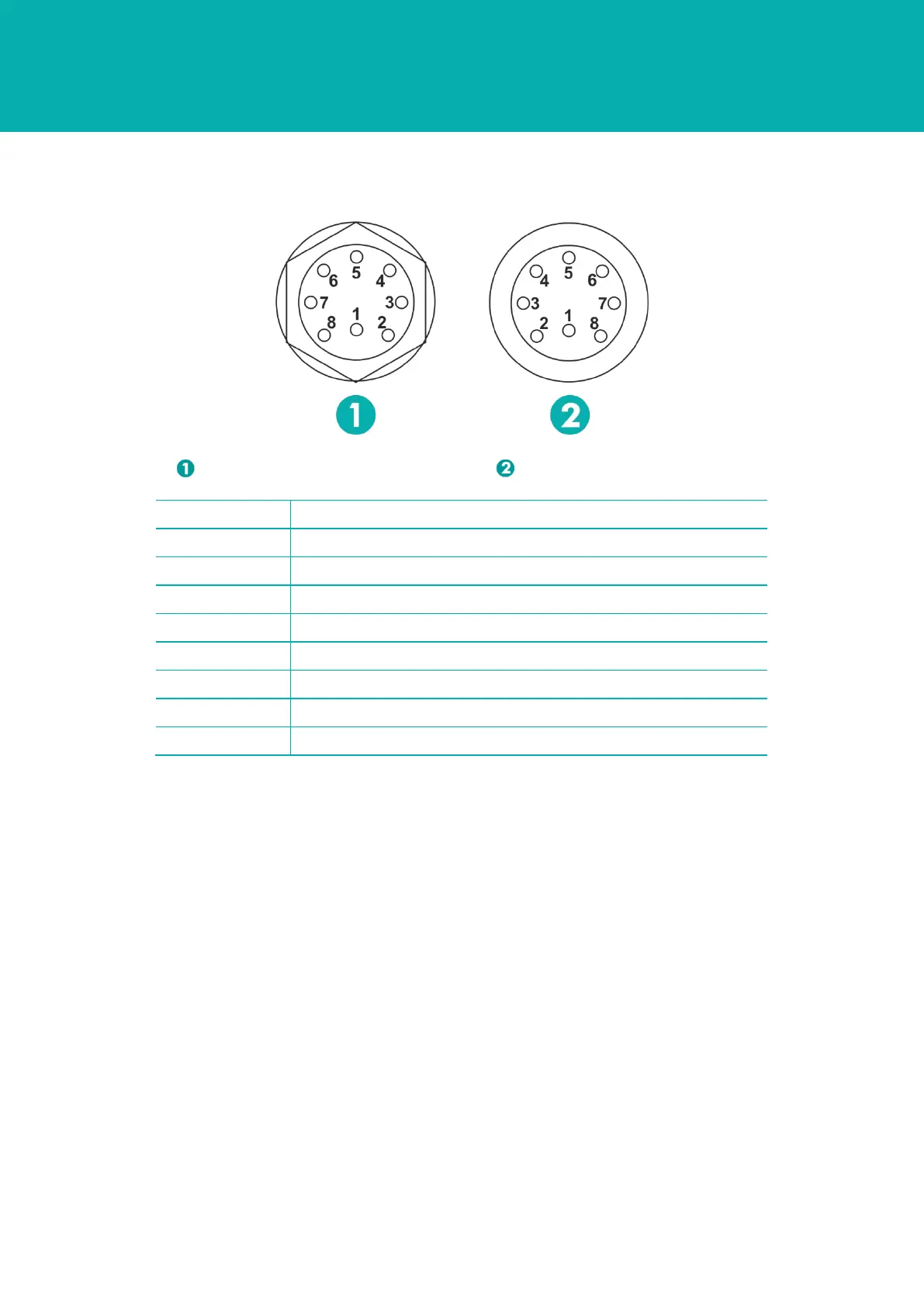

Figure 11-4 8-Way Connector Pin Out and Mating Tail
Bulkhead – Female Subconn MCBH8F Cable – Male Subconn MCIL8M
Pin Number Function
1 Trigger In / Comms In
2 0 V
3 Fast Charge / Comms out
4 External Power 24 V and trickle charge
5 Auxiliary +ve / Contact B1
6 Auxiliary -ve / Contact B2
7 Primary + ve / Contact A1
8 Primary - ve / Contact A2
