3 PS-PLAY IP to Audio Streaming Decoder
Rear Panel Connections and Operation

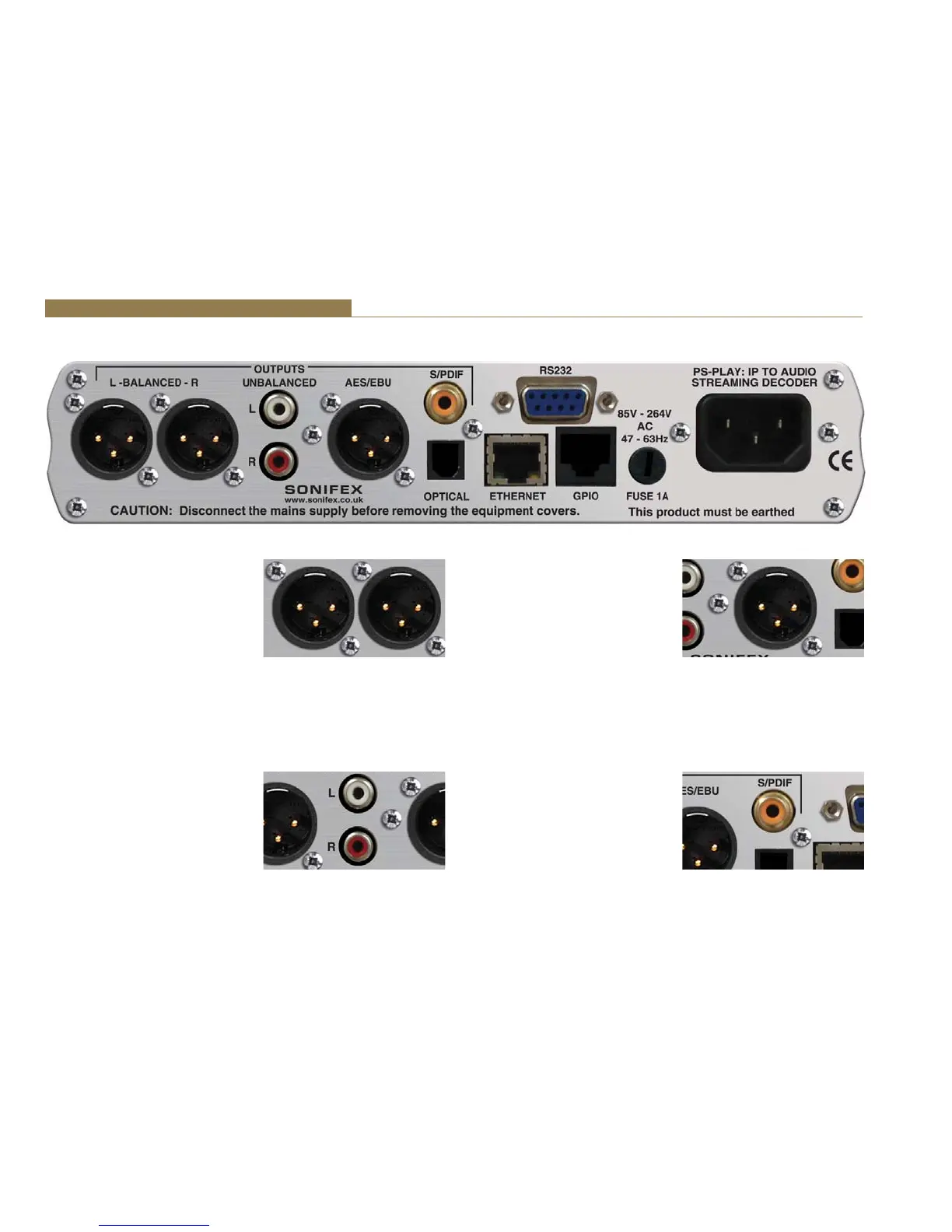

Fig 3-7: PS-PLAY Rear Panel
Fig 3-8: PS-PLAY Analogue Outputs
All audio connections are outputs on
this unit.
Balanced Analogue Outputs
The two XLR 3 pin plugs used for the
left and right channel outputs are
electronically balanced and have an
ŝŵƉĞĚĂŶĐĞŽĨфϱϬɏĂĐŚy>ZŚĂƐƚŚĞ
following connections:
Pin 1: Screen.
Pin 2: Phase.
Pin 3: Non-phase.
Unbalanced Analogue Outputs
The two left and right RCA outputs are
unbalanced and have an impedance of
фϳϱɏdŚĂLJĂƌĞĐŽŶŶĞĐƚĞĚĂƐĨŽůůŽǁƐ
Pin: Signal
Ring: Screen
AES/EBU Balanced Digital Output
The stereo digital output XLR 3 pin plug
ŚĂƐĂŶŝŵƉĞĚĂŶĐĞŽĨϭϭϬɏĂŶĚƚŚĞ
following connections:
Pin 1: Screen
Pin 2: Phase
Pin 3: Non-phase
The signals on this connector should
meet the IEC 60968 specification
S/PDIF Unbalanced Digital Output
The stereo S/PDIF input is an RCA
phono connector and is typically used
for consumer digital audio. The S/PDIF
ŝŶƉƵƚƐŚĂǀĞĂŶŝŵƉĞĚĂŶĐĞŽĨϳϱɏ
Pin: Signal
Ring: Screen
Fig 3-9: PS-PLAY RCA Phono Analogue
Outputs
Fig 3-10: PS-PLAY AES/EBU Output
Fig 3-11: PS-PLAY S/PDIF Output
