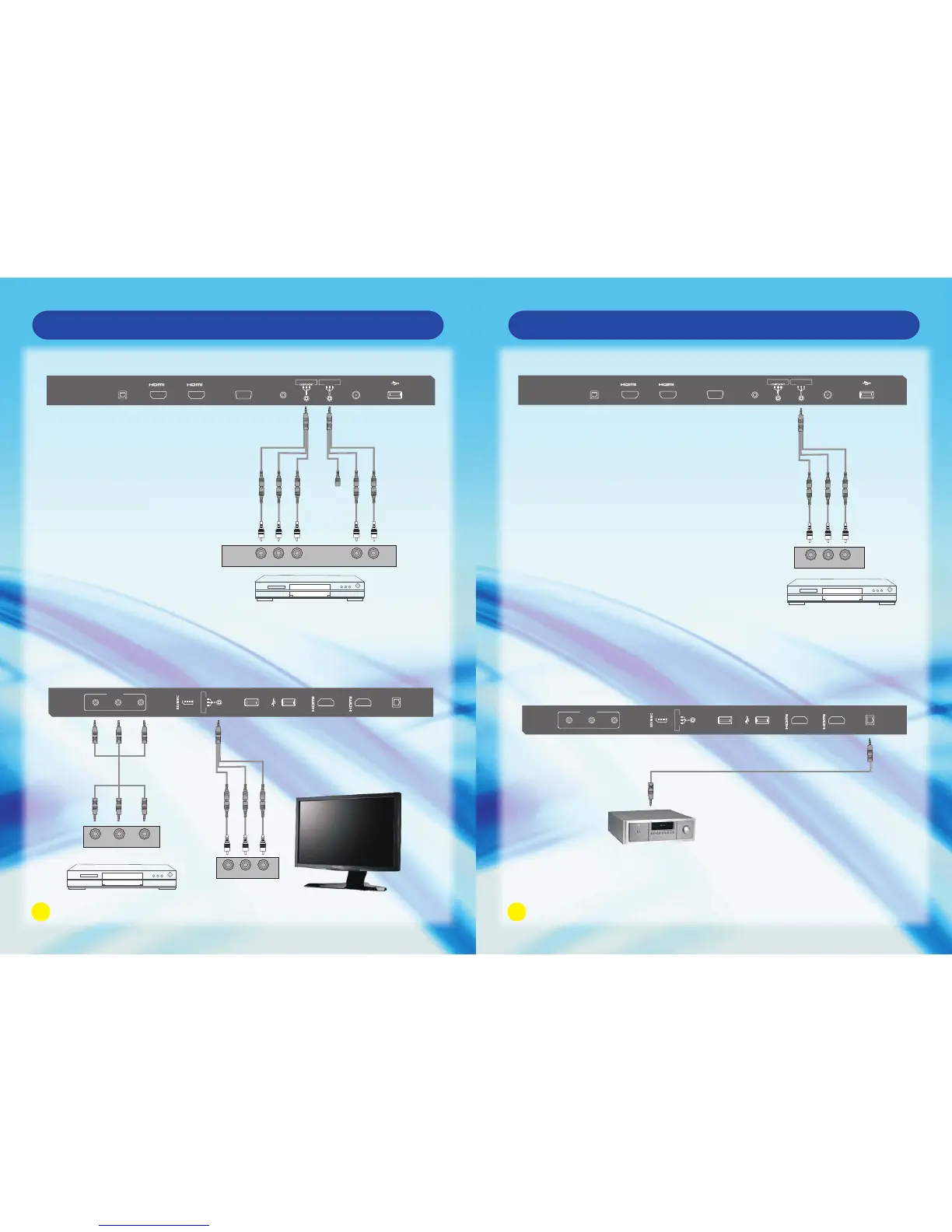

SONIQ E47S14A - Component Connection; Optical Connection

13 14
R
R
L
L
VIDEO
VIDEO
Video/Audio Output
AV Cable
Monitor
Video/Audio Output
Back side of DVD player
DVD player
(included)
Yellow
White
Red
Audio (AV) Cable
Connection and SetupConnection and Setup
Component Connection
AV IN/OUT Connection
Component Video Cable
Back side of DVD player
DVD player
(included) (included)
Green
Yellow
White
Red
Blue
Red
Audio (AV) Cable
Component (YPbPr)
Connection
ANT IN
VGA
AUDIO IN
USB
VGA
1 2
ETHERNET
Y Pb Pr
AV 1 IN
R - L - VIDEO
ANT IN
VGA
AUDIO IN
USB
VGA
1 2
ETHERNET
Y Pb Pr
AV 1 IN
R - L - VIDEO
DIGITAL
AUDIO OUT
(OPTICAL)
VIDEO
L
R
AV 2 IN
USB3.0
4
3
USB
AV OUT
R - L - VIDEO
Optical Connection
Cables are not included in package
Optical input
DIGITAL
AUDIO OUT
(OPTICAL)
VIDEO
L
R
AV 2 IN
USB3.0
4
3
USB
AV OUT
R - L - VIDEO
