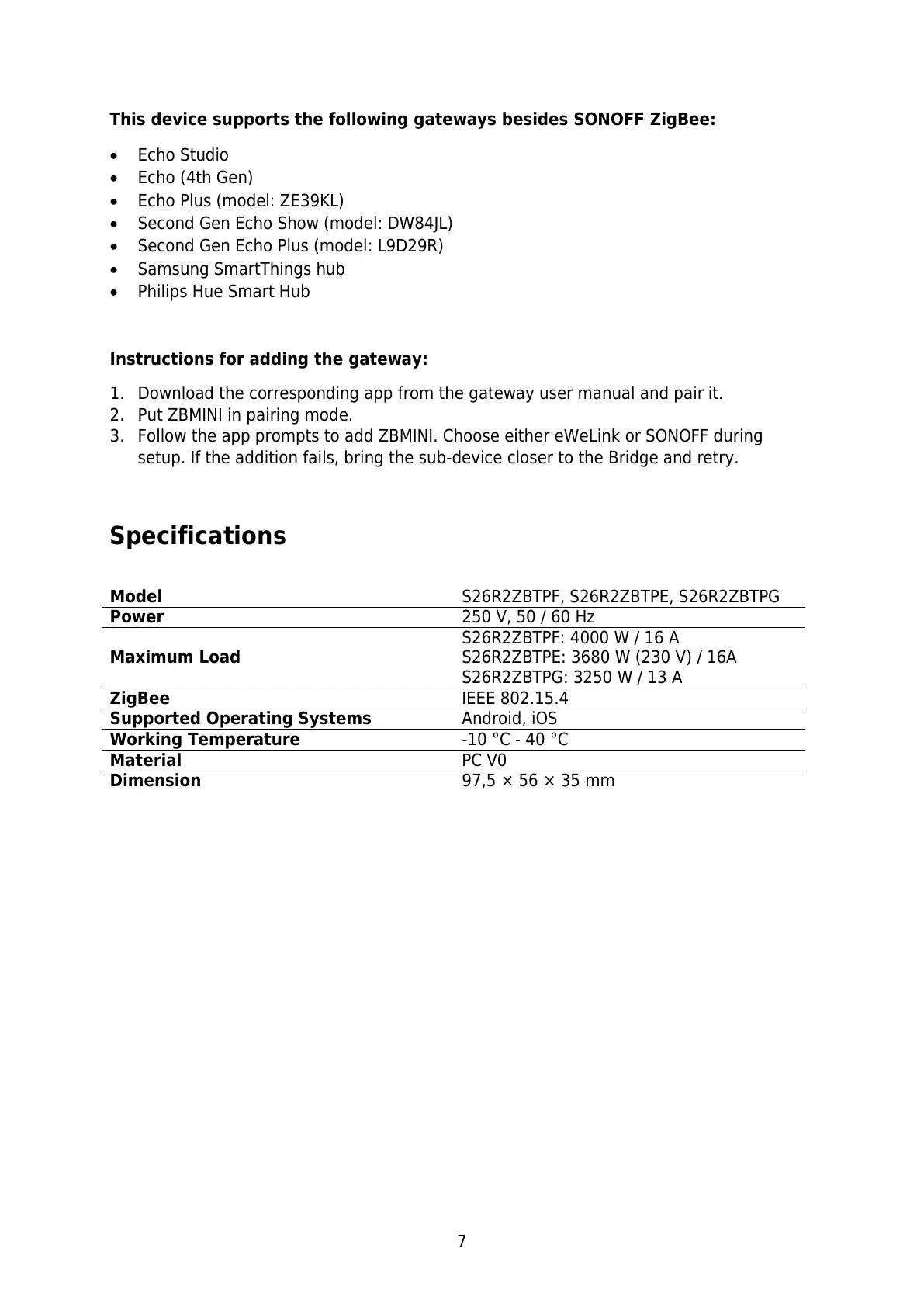

Sonoff S26R2ZBTPF - Specifications

7
This device supports the following gateways besides SONOFF ZigBee:
 Echo Studio
 Echo (4th Gen)
 Echo Plus (model: ZE39KL)
 Second Gen Echo Show (model: DW84JL)
 Second Gen Echo Plus (model: L9D29R)
 Samsung SmartThings hub
 Philips Hue Smart Hub
Instructions for adding the gateway:
1. Download the corresponding app from the gateway user manual and pair it.
2. Put ZBMINI in pairing mode.
3. Follow the app prompts to add ZBMINI. Choose either eWeLink or SONOFF during
setup. If the addition fails, bring the sub-device closer to the Bridge and retry.
Specifications
Model
S26R2ZBTPF, S26R2ZBTPE, S26R2ZBTPG
Power
250 V, 50 / 60 Hz
Maximum Load
S26R2ZBTPF: 4000 W / 16 A
S26R2ZBTPE: 3680 W (230 V) / 16A
S26R2ZBTPG: 3250 W / 13 A
ZigBee
IEEE 802.15.4
Supported Operating Systems
Android, iOS
Working Temperature
-10 °C - 40 °C
Material
PC V0
Dimension
97,5 × 56 × 35 mm
