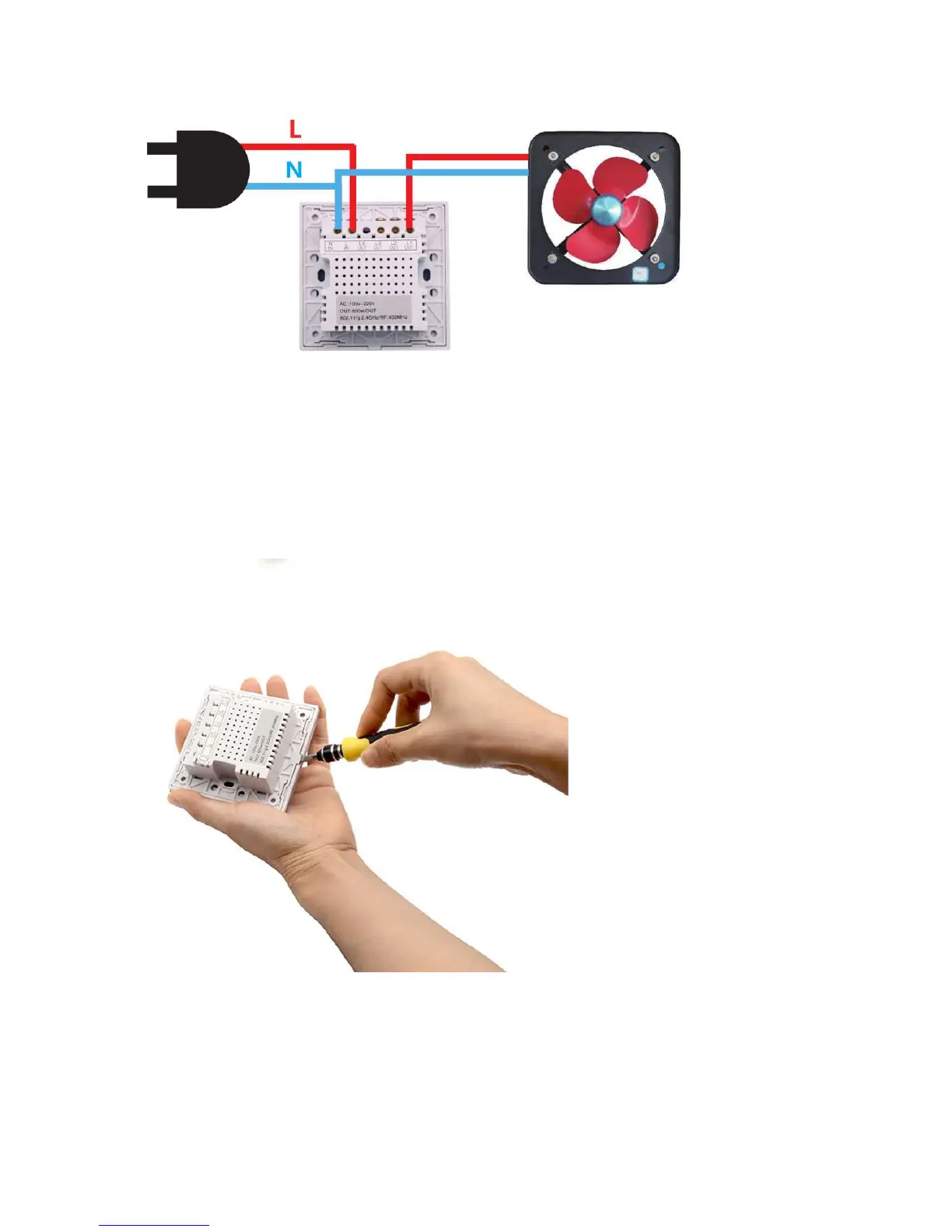

The switch must be powered up through Lin (Live input) and Nin (neutral
input). While L1 out, L2 out, L3 out, L4 out are Live output for each gang.
After connecting the wires, please use a screwdriver to open the panel. The
position is shown below:
Then use two screws to fix the back enclosure into the wall box. Then close
the panel.
