0449P300 Installation Superstatic 449 DE EN 19-01-2012 10 Sontex SA, 2605 Sonceboz, Schweiz, Switzerland

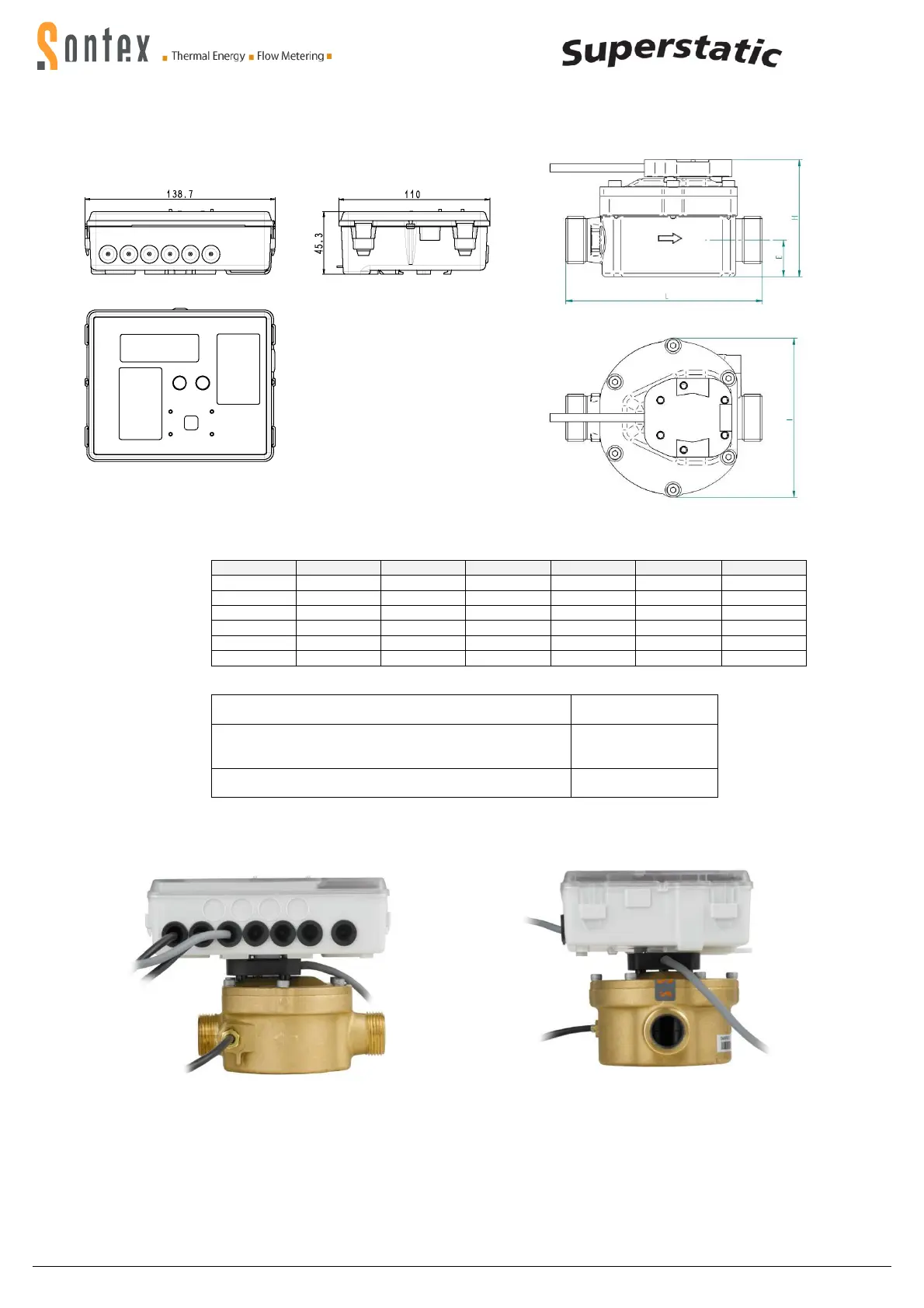

Massbilder statischer Wärmezähler Superstatic 449 Dimensions heat meter Superstatic 449
Rechenwerk / Integrator
Schwingstrahl Durchflusssensor / Fluid oscillator flow sensor
qp G PN l (mm) H (mm) L(mm) E (mm)
*0.6 m
3
/h
¾
16
70
60
110
18
1.5 m
3
/h
¾
16
89
65
110
21
1.5 m
3
/h
1”
16
89
65
130
21
*1.5 m
3
/h 1”
16 89 65 190
21
*2.5 m
3
/h 1”
16 89 65 130
21
*2.5 m
3
/h 1”
16 89 65 190
21
*In Vorbereitung / under way
Betriebstemperatur-Temperatur, dauernd /
Operating Temperature, permanent
90°C
Empfohlene Einlaufstrecken / Inlet straigt section (EN 1434)
3D für / for : L=110mm
0D für / for : L=130mm
0D für / for : L=190mm
Verbindung zwischen Durchflusssensor und Rechenwerk
Connection between flow sensor and integrator
0.8 m; fest / fix
Superstatic 449: Max. 140 x 110 x 112 [mm]
