Trouble Shooting Guide, Mechanical
4/000 21-1/FEA 209 544/116 C
Company Internal
© Sony Ericsson Mobile Communications AB
4(31)

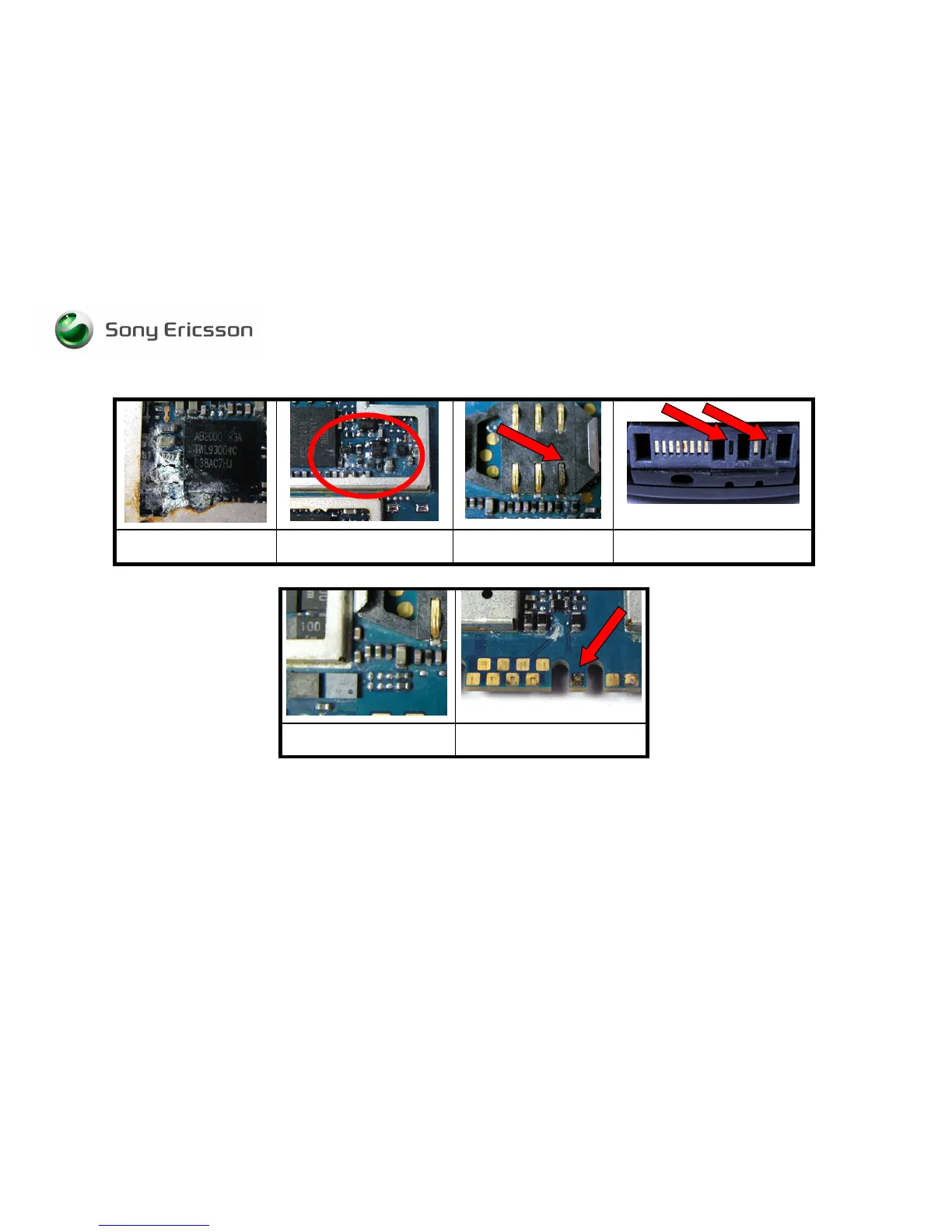

Corrosion components on
the PCB.
Corrosion components on the
PCB.
SIM reader damaged by
liquid.
System connector damaged by
liquid
Components around system
connector damaged by liquid
System connector pad(s)
damaged by liquid
1.2.2 Liquid damage sticker
In the phone there is placed a sticker that can give you a hint to see if the phone is damage by liquid or not. This sticker is located
near the SIM reader (Fig. 1.2.1) and it is possible to see it without disassemble the phone.
