AVD-K800P
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
Carry out the “S curve check” in “CD section adjustment” and check
that the S curve waveform is output several times.

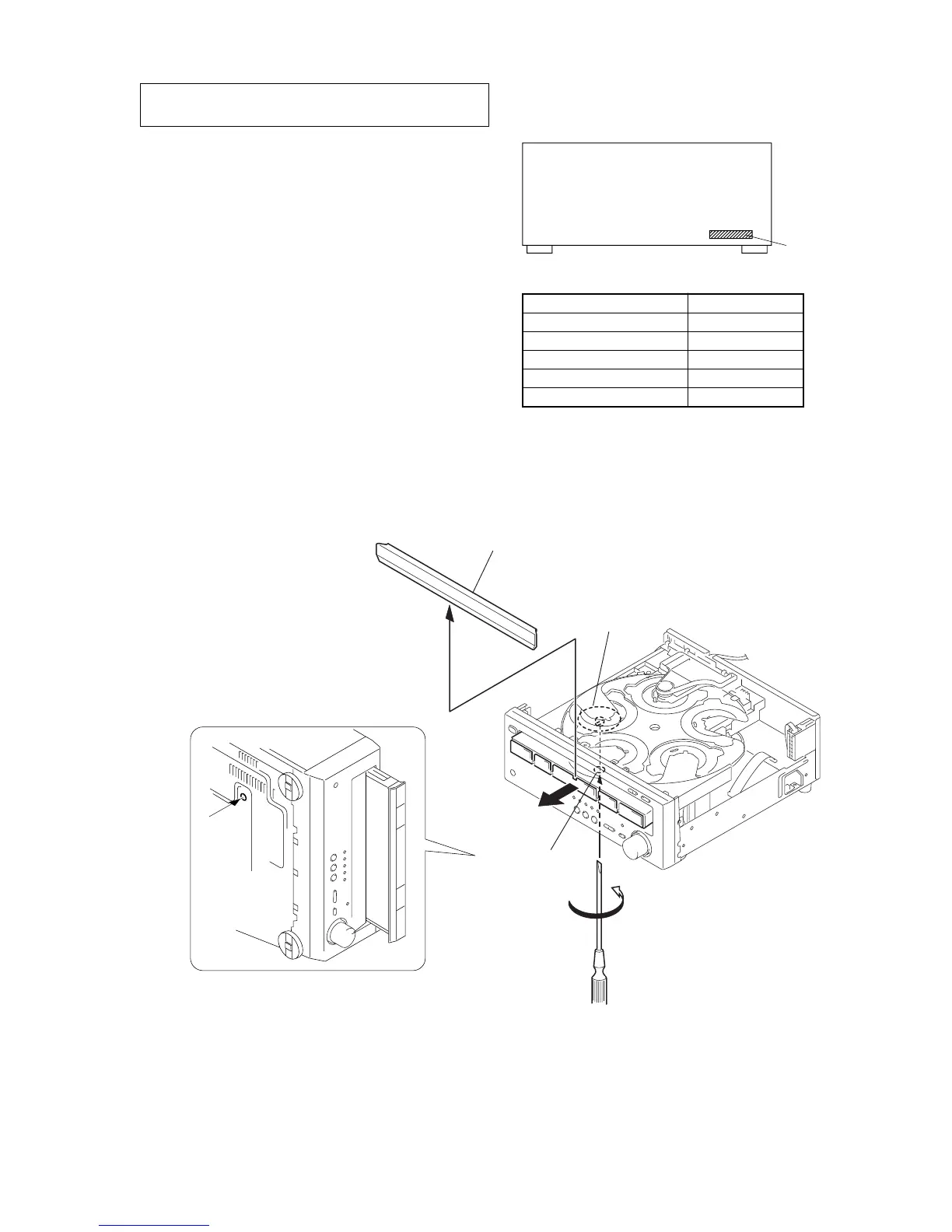

MODEL IDENTIFICATION
— BACK PANEL —
•Abbreviation
E51 : Chilean and peruvian models.
Model
US and E51 models
Canadian model
Mexican model
AEP model
UK model
PARTS No.
4-244-942-0s
4-244-942-1s
4-244-942-2s
4-244-942-3s
4-244-942-4s
HOW TO OPEN THE DISC TRY WHEN POWER SWITCH TURNS OFF
3
loading (panel)
2
table
1
Turn the gear (shaft) in the
direction of the arrow.
gear (shaft)
hole of chassis
