AVD-K800P
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

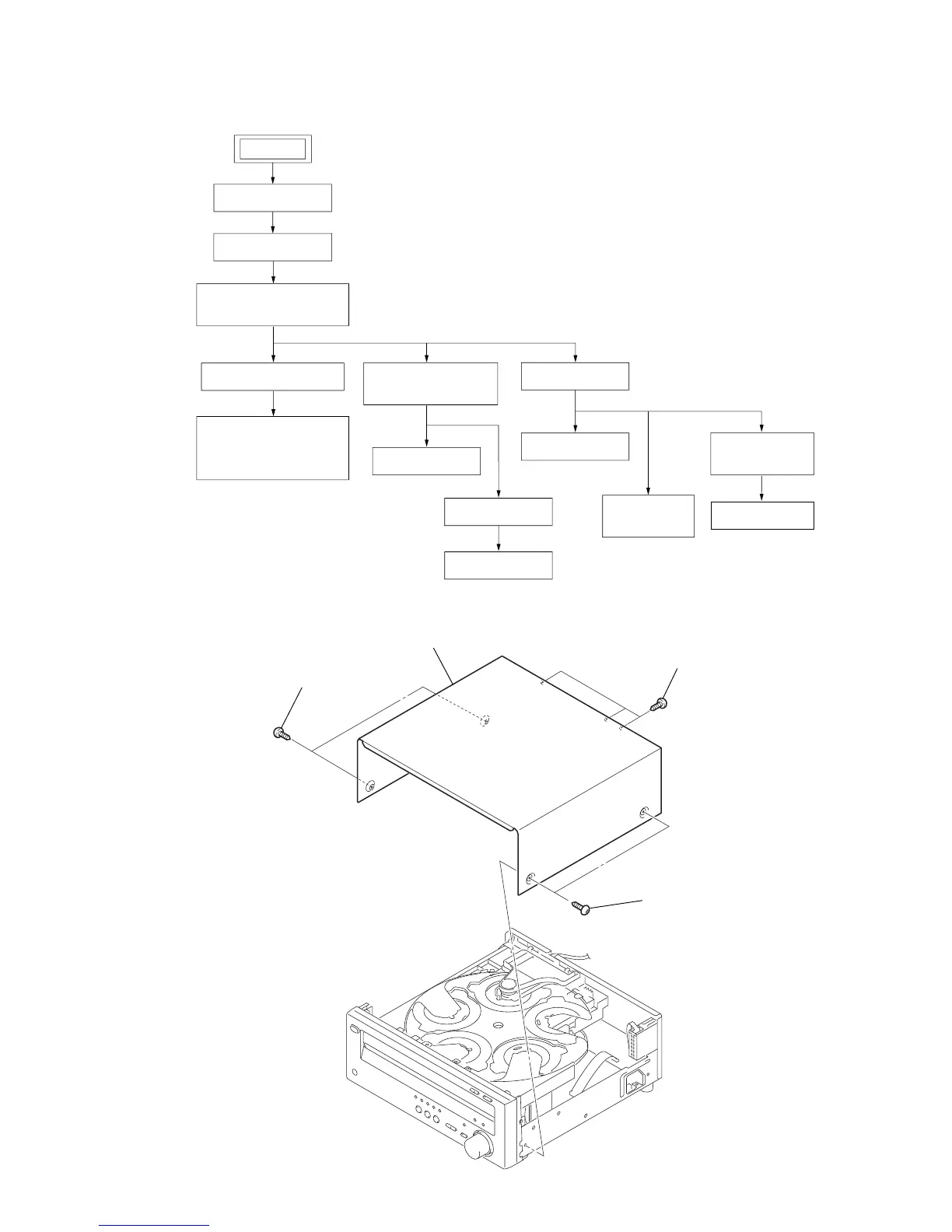

2-1. Case
• The equipment can be removed using the following procedure.
CASE
FRONT PANEL ASSY
LOADING (PANEL)
DMB03 BOARD
TABLE ASSY
MAIN BOARD
SE-130 BOARD
RF BOARD
DC FAN (FAN1)
DC MOTOR
(M001)
PICKUP UNIT
SECTION
DISPLAY BOARD,
OPEM/CLOSE BOARD,
POWER SWITCH BOARD,
HP BOARD
CD MECHANISM DECK
(CDM79-DVBU22)
TUNER UNIT (TM301),
I/O BOARD
SET
1 two screws
(CASE 3 TP2
)
2 two screws
(CASE 3 TP2)
3 three screws
(CASE 3 TP2)
4 CASE (385)
