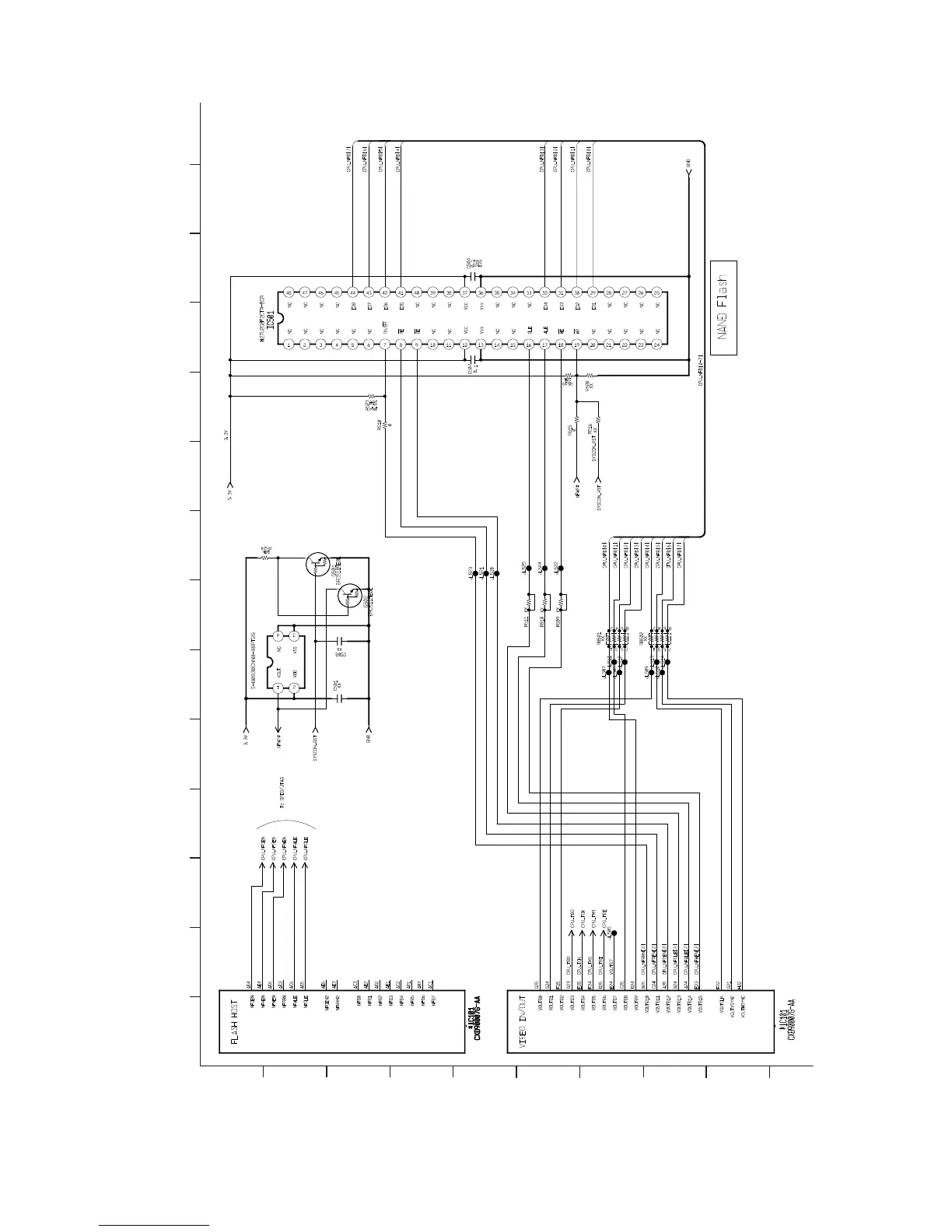

4-9. MB-143 BOARD (FLASH/HOST) SCHEMATIC DIAGRAM (5/12)  Se
e page 5-4 for printed wiring board.
- Ref. No.: MB-143 board; 10,000 series
IC503
