Sony BDP-S186 - Page 47

4-11
BDP-BX18/S185/S186

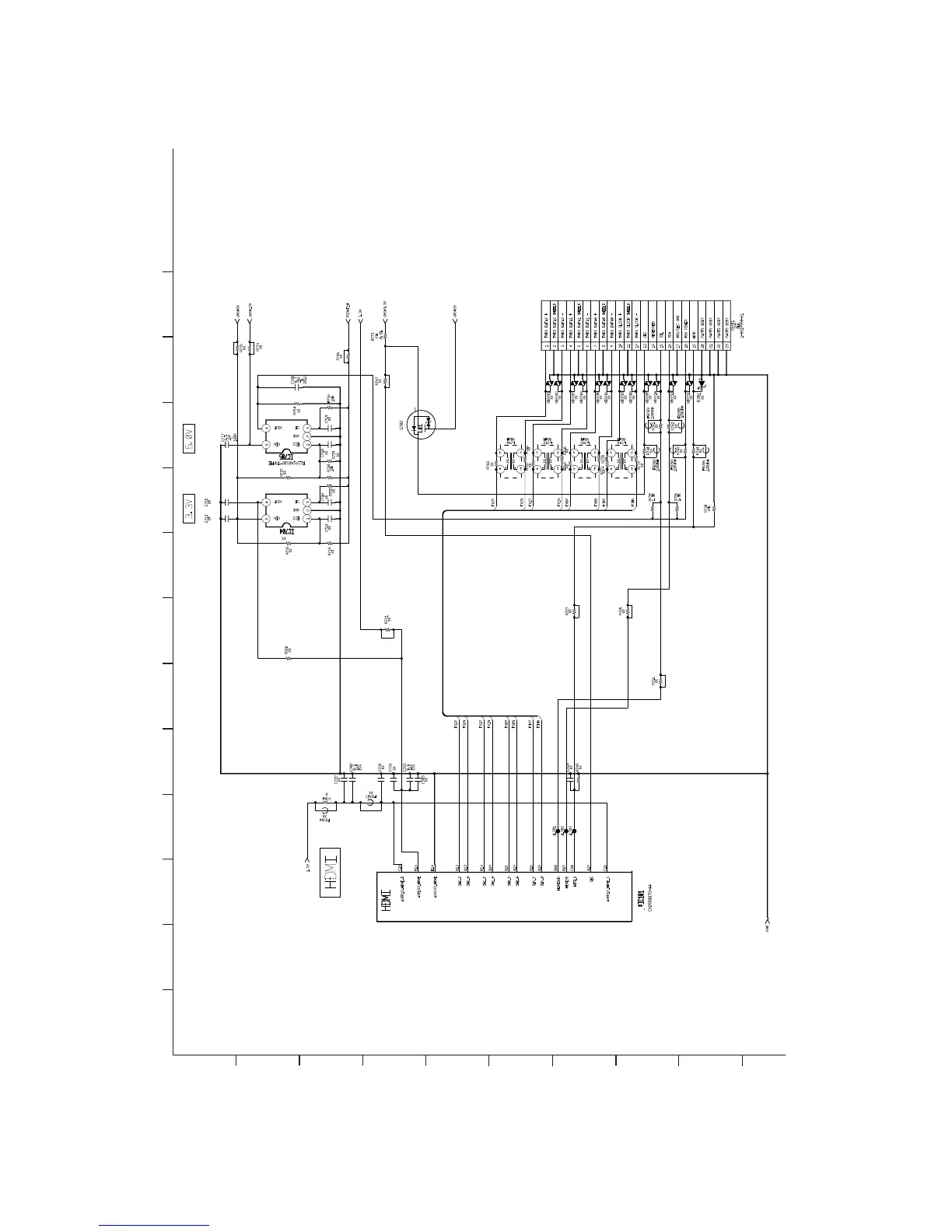

4-11. MB-143 BOARD (HDMI)
SCHEMATIC DIAGRAM (7/12)
 Se
e page 5-4 for printed wiring board.
- Ref. No.: MB-143 board; 10,000 series
