Sony BDP-S5200 Service Manual

2-1
BDP-S1200/BX120/S3200/BX320/S4200/S5200/BX520

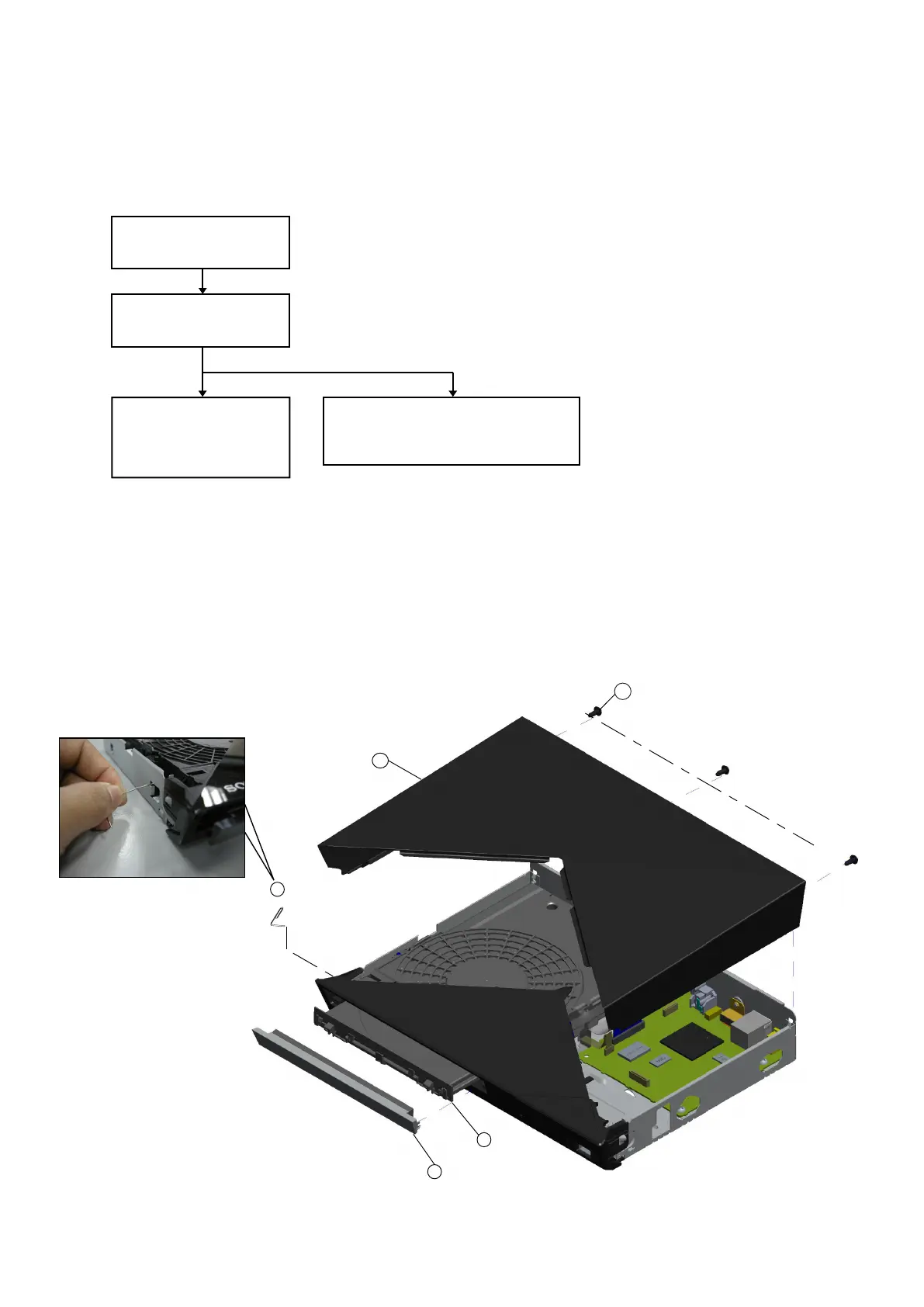

SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
Wifi Module only for S3200/BX320/S5200/BX520 Model.
2-2. UPPER CASE AND TRAY COVER ASSY
*DISC REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)
SET
2-2 UPPER CASE AND
TRAY COVER ASSY
(Page 2-1)
2-3 FRONT PANEL,
FR-1303 boards,
and Wifi Module
(Page 2-2)
2-4 MB-1301 BOARD AND BD DRIVE
(Page 2-2)
3
Insert a clip in the hole of a drive
to open a tray.
1
Three screws (Black)
+BTP 3X8 TYPE2 N-S
WLJKWHQLQJWRUTXH WRNJIFP
Tray
5
Tray cover assy
4
2
Upper case

Sony BDP-S5200 Specifications

General

Depth	199 mm
Width	265 mm
Height	43 mm
Weight	900 g
Child lock	Yes
Device type	Blu-Ray player
Product color	Black
Audio decoders	Dolby TrueHD, DSD, DTS-HD Master Audio
DVD region code	1
Blu-ray region code	A
Disc types supported	BD, BD-RE, BD-ROM, CD, CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported video modes	1080i, 1080p, 480i, 480p, 720p
Card reader integrated	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio formats supported	AAC, AC3, FLAC, HE-AAC, M4A, MKA, MP3, WAV, WMA
Image formats supported	GIF, JPEG XR, JPG, MPO, PNG
Video formats supported	3G2, 3GP, ASF, AVI, FLV, M2TS, M4V, MKV, MOV, MP4, MPEG, MPG, MTS, WMV
Analog signal format system	NTSC, PAL
On Screen Display (OSD) languages	ENG, ESP, FRE, POR
Smart TV	No
Audio output channels	7.1 channels
