Getting Started
When a component you wish to connect to the system has an HDMI
(OUT) jack
You can connect a component that has an HDMI (OUT) jack such as a set-top box/digital satellite
receiver or PLAYSTATION
®
3, etc., with an HDMI cable. An HDMI cable connection can send both
video and audio signals. By connecting the system and the component using an HDMI cable, you can
enjoy high-quality digital picture and sound via the HDMI (IN 1) or HDMI (IN 2) jack.
• Video signals from the HDMI (IN 1/2) jacks are sent to the HDMI (OUT) jack only when the “HDMI1” or
“HDMI2” function is selected.
• To send an audio signal from the HDMI (IN 1/2) jacks to the HDMI (OUT) jack, you may need to change the audio
output setting. For details, see [Audio Output] in [Audio Settings] (page 49).
Connecting the other components

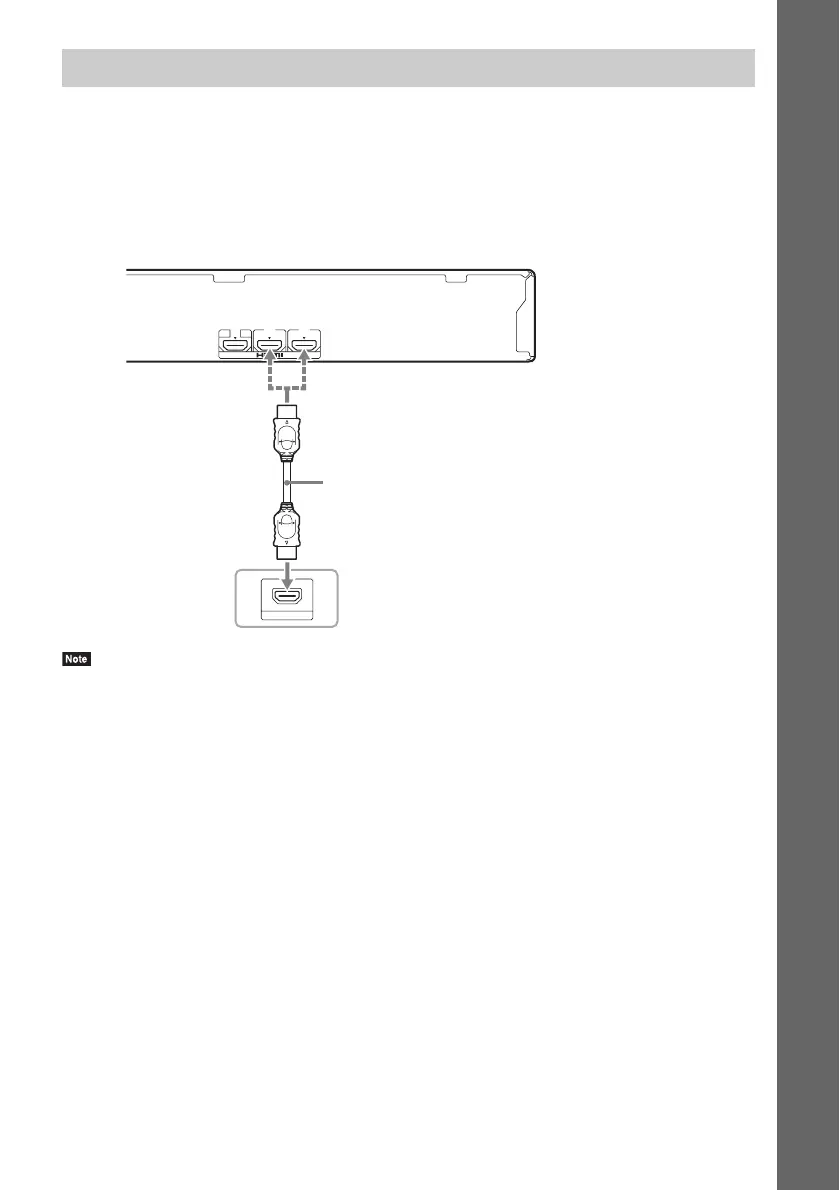

HDMI OUT
ARC
OUT
IN 1 IN 2
To the HDMI OUT jack of the set-top box/
digital satellite receiver or
PLAYSTATION
®
3, etc.
HDMI cable (supplied with Mexican and Latin
American models of BDV-T28 only)
Use HDMI (IN 1) or HDMI (IN 2).
Rear panel of the unit
