Sony BDV-E770W - Rear Panel

10
US

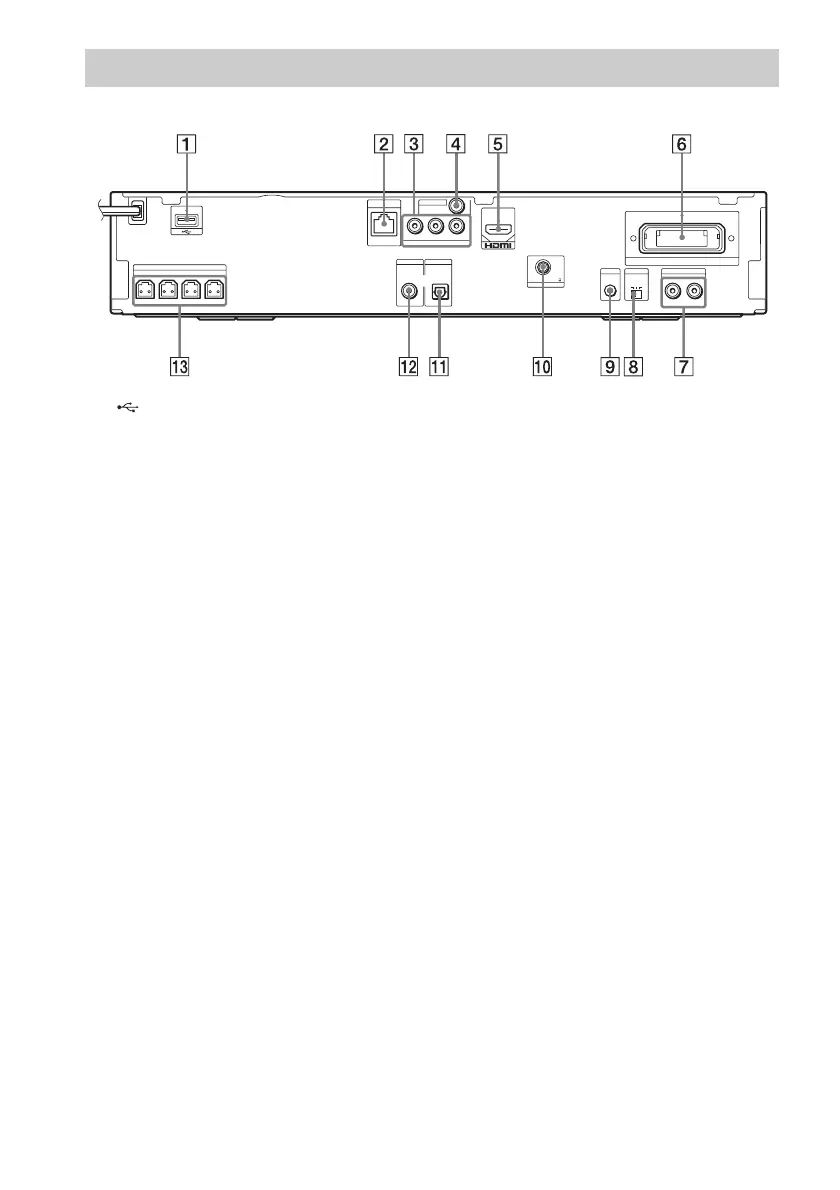

A (USB) port (page 30)
B LAN (100) terminal (page 23)
C COMPONENT VIDEO OUT jacks (page
18)
D VIDEO OUT jack (page 18)
E HDMI OUT jack (page 18)
F EZW-RT10 slot (page 22)
G AUDIO (AUDIO IN L/R) jacks (page 20)
H S-AIR ID switch (pages 24, 39)
I A.CAL MIC jack (pages 25, 45)
J ANTENNA (FM COAXIAL 75Ω) jack
(page 21)
K TV (DIGITAL IN OPTICAL) jack (page
19)
L SAT/CABLE (DIGITAL IN COAXIAL)
jack (page 20)
M SPEAKERS jacks (page 17)
Rear panel
FRONT R
SPEAKERS
FRONT L SUBWOOFER CENTER
LAN(100)
DIGITAL IN
COAXIAL
SAT/CABLE
DIGITAL IN
TV
OPTICAL
OUT
ARC
COMPONENT VIDEO OUT
VIDEO OUT
Y P B / C B P R / C R
EZW-RT10
AUDI O
AUDIO INRL
COAXIAL
ANTENNA
FM 75
S-AIR ID
ABC
A. CAL MIC
ECM-AC2
