Sony BDV-E880 - Rear Panel

13
US

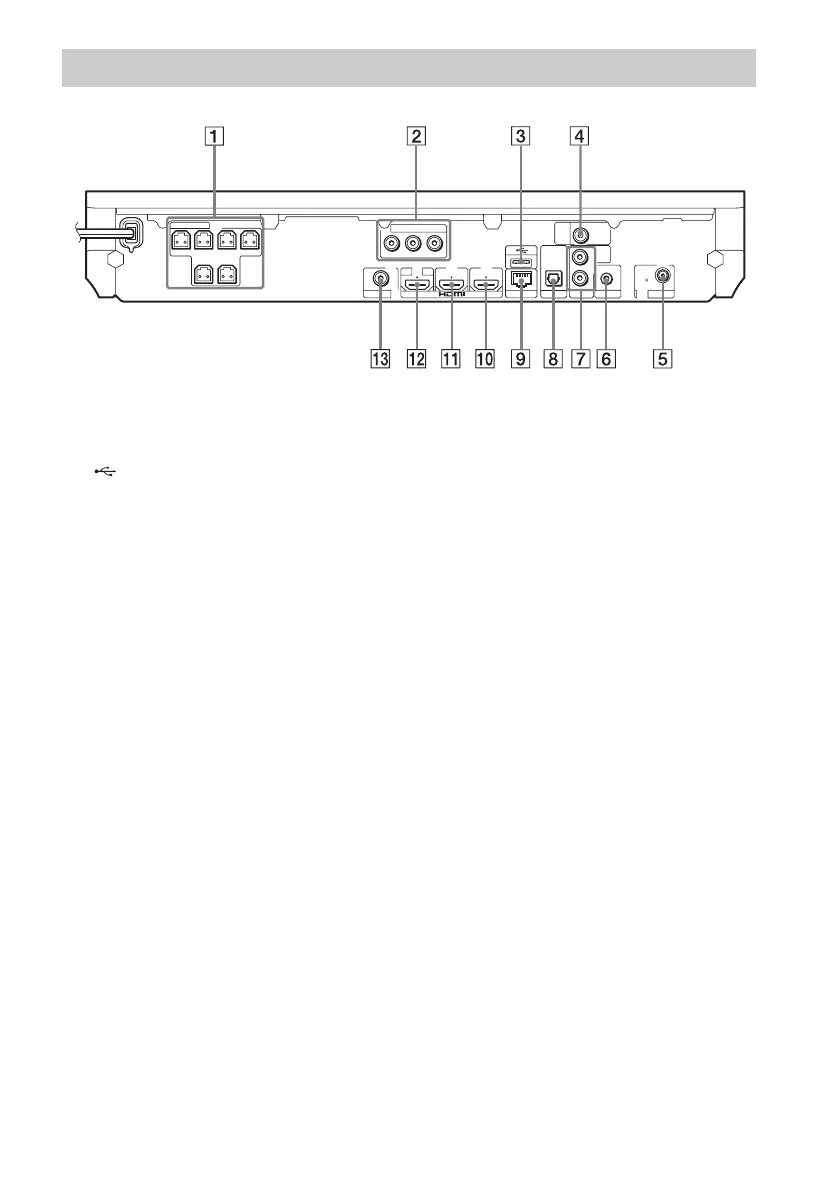

A SPEAKERS jacks (page 20)
B COMPONENT VIDEO OUT jacks (page
22)
C (USB) port (page 35)
D SAT/CABLE (DIGITAL IN COAXIAL)
jack (page 24)
E ANTENNA (FM COAXIAL 75Ω) jack
(page 26)
F A.CAL MIC jack (pages 29, 48)
G AUDIO (AUDIO IN L/R) jacks (page 24)
H TV (DIGITAL IN OPTICAL) jack (page
22)
I LAN (100) terminal (page 27)
J HDMI (IN 2) jack (page 24)
K HDMI (IN 1) jack (page 24)
L HDMI (OUT) jack (page 22)
M VIDEO OUT jack (page 22)
Rear panel
COMPONENT VIDEO OUT
Y P B P R
FRONT R FRONT L
SUR R SUR L
CENTER SUBWOOFER
SPEAKERS
VIDEO OUT
LAN (100)
ARC
OUT
IN 1 IN 2
OPTICAL
DIGITAL IN
TV
AUDIO IN
L
R
AUDIO
ANTENNA
COAXIAL
FM
75
SAT/
CABLE
COAXIAL
DIGITAL IN
ECM-AC2
A.CAL MIC
