Getting Started
Connect the system to your TV to display the image of the system on your TV, and listen to TV sound
via the system’s speakers.
Depending on the jacks and functions on your TV, select the connection method.
• When your TV has an HDMI jack that is marked “ARC
1)
”: Connection A
• When your TV has an HDMI jack: Connections A and D
• When your TV has component video input jacks: Connections B and D
• When your TV does not have jacks above: Connections C and D
1)
Audio Return Channel. For details, see “About Audio Return Channel” (page 23).
2)
The HDMI cable is supplied with BDV-E880/BDV-E980/BDV-T58 only.
3)
Available only when your TV is compatible with the Audio Return Channel function.

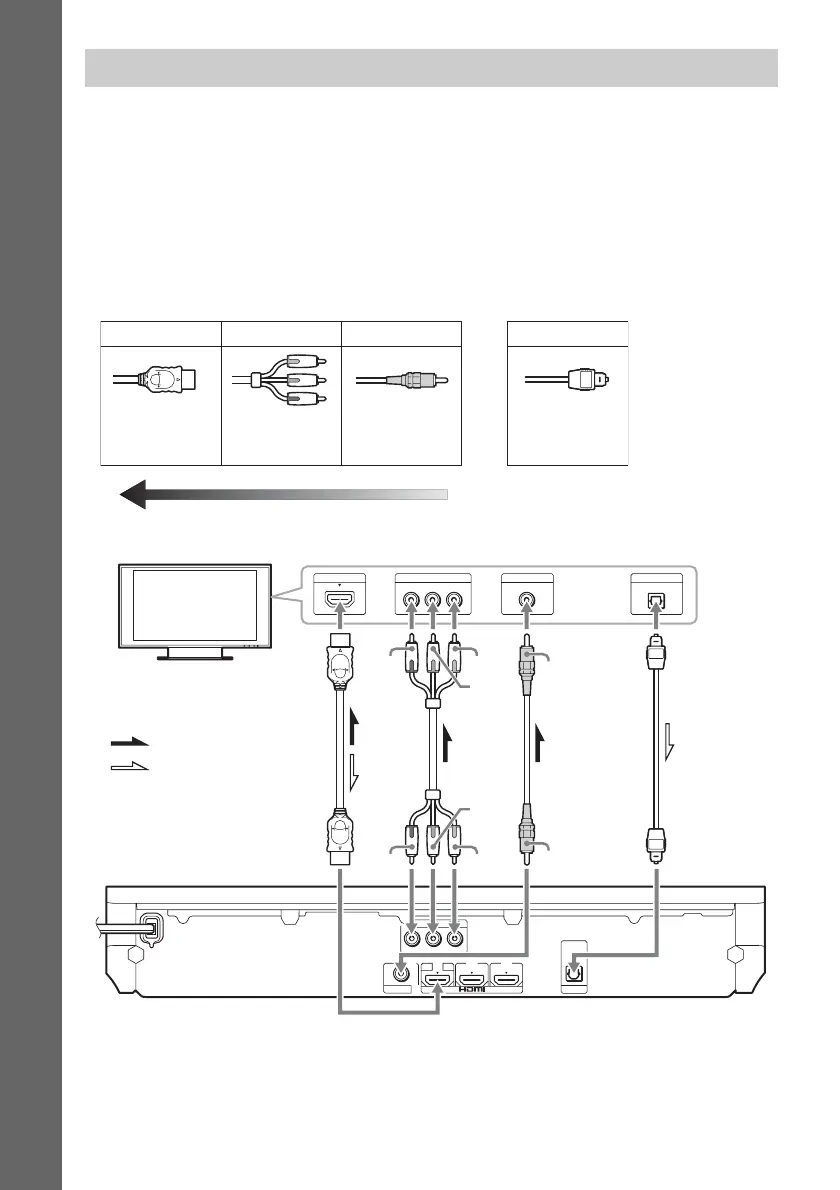

Connecting the TV
ABC D
HDMI cable
2)
Image quality
Video connections
Component
video cable
(not supplied)
Video cord
(not supplied)
Digital optical cord
(not supplied)
Audio connection
COMPONENT VIDEO IN
Y
P
B
PR
VIDEO IN DIGITAL OUT
OPTICAL
HDMI IN
COMPONENT VIDEO OUT
Y
P
B
P
R
VIDEO OUT
ARC
OUT
IN 1 IN 2
OPTICAL
DIGITAL IN
TV
ABC D
TV
Rear panel of the unit
or
Red
Blue
Green
Yellow
Red
Blue
Green
Yellow
or
: Video signal
: Audio signal
Signal flow
