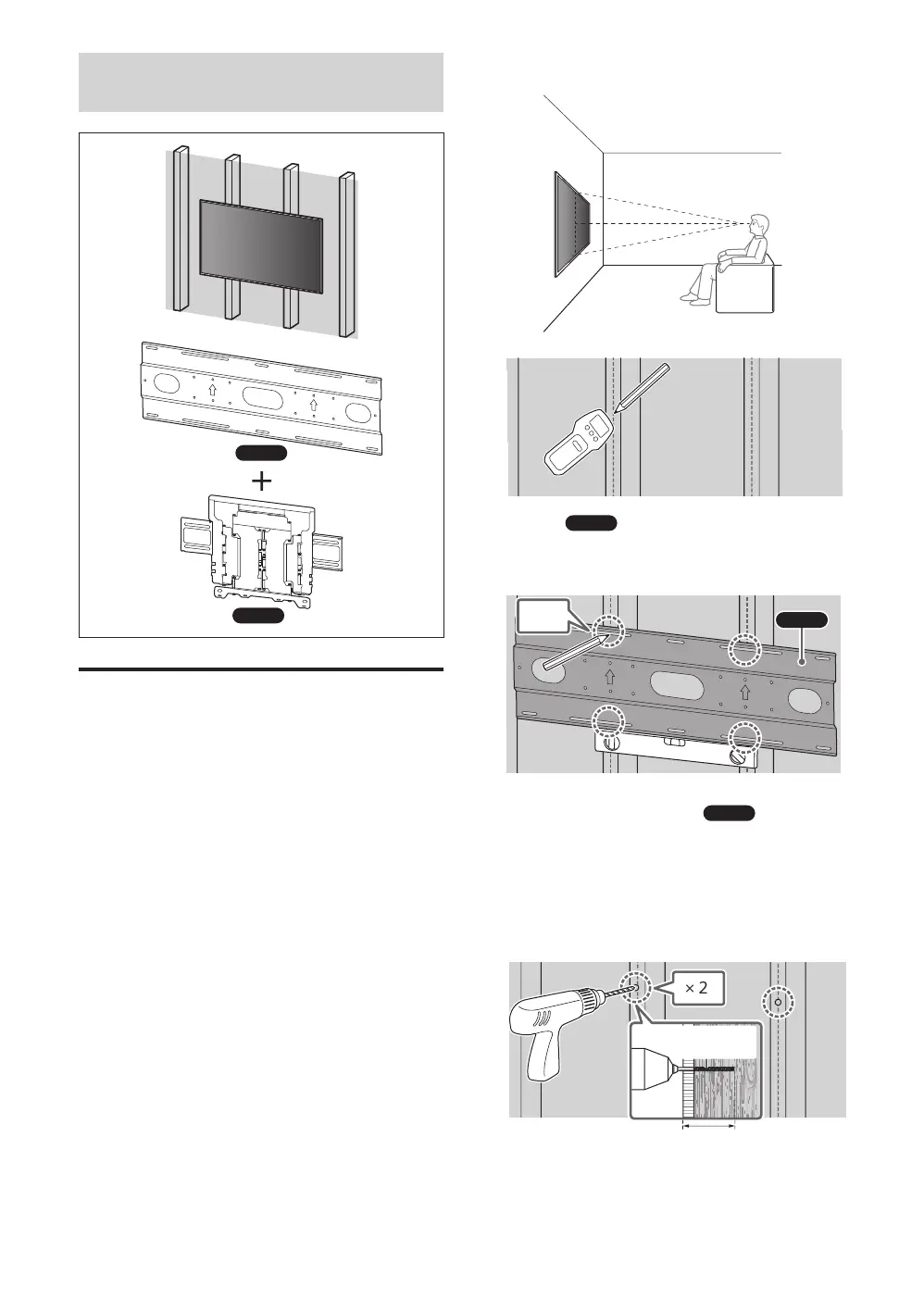

 Attaching the Wall-Mount
Bracket to the Dry Wall with Studs
WM1
WM4
Installing the Lateral Shift
Bracket to the Wall
1 Decide on the installation
location.
Make sure that the wall has enough space
for the TV and is capable of supporting a
weight of at least six times that of the TV.
• Refer “Measurement for Lateral Shift
Bracket installation on the wall” on page
20.
• Refer to your TV’s Reference Guide for the
TV’s weight.
Note

When your TV is installed on the wall, the upper
side of the TV slightly leans forward.

We recommend you to check the position of TV in
the viewing environment.
2
3 Align
WM4
to the wall and make
four marks aligned with the
studs.
× 4
WM4
Note

Use a level to check whether
WM4
is level.
4 Drill upper pilot holes on the
marks.
Make sure the location on the wall to drill
the holes are strong enough to support a
weight of at least six times that of the TV.
× 2
75mm
(3inch)
5.5mm
(7/32inch)
