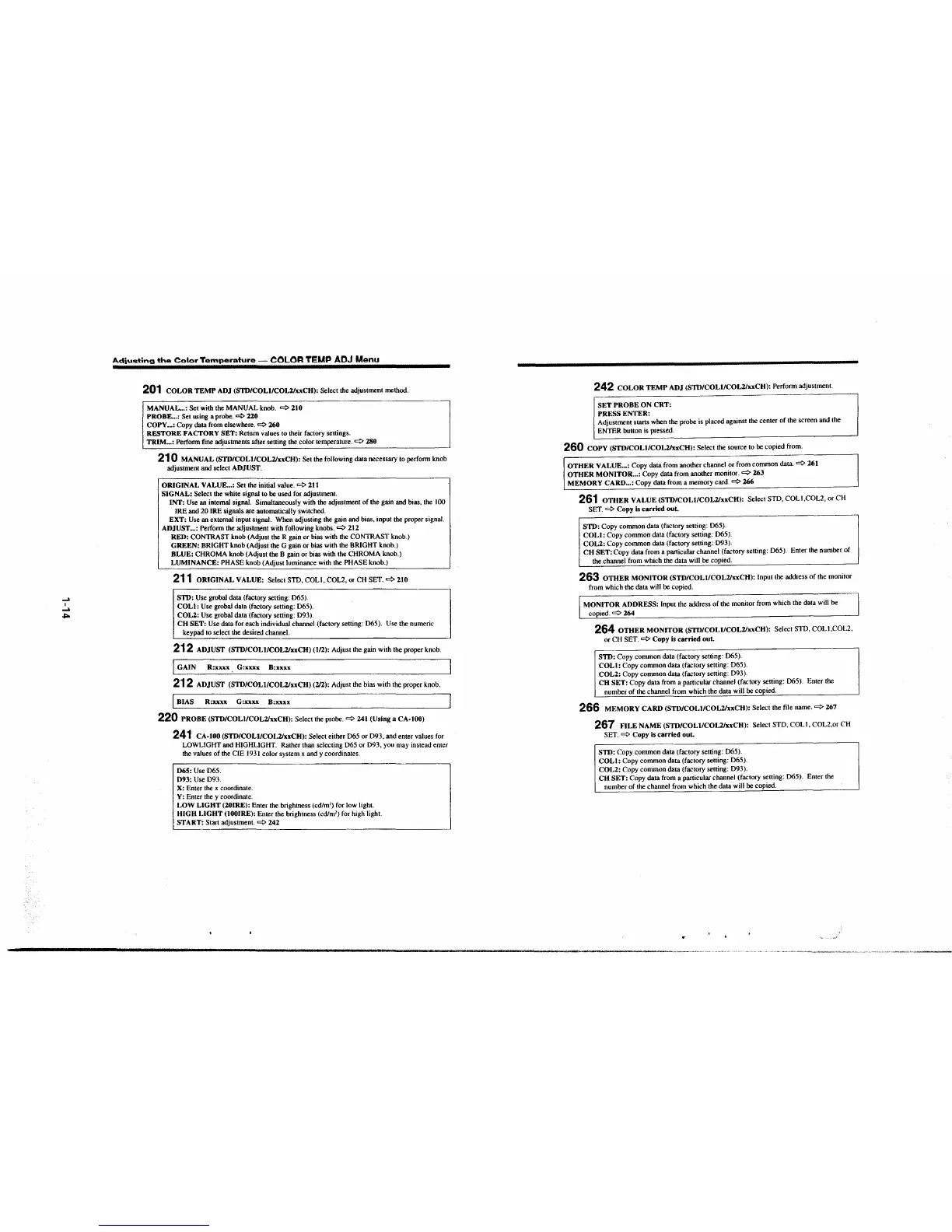

Adjusting the Color Temperature - eOLOft T~UP ADJ Menu
201 COLOR TEMP ADJ (STD/COLl/COLl/xxCH): Select the adjustment method.
MANUAL .. : Set with the MANUAL knob. s> 210
PROBE. .. :
Set using a probe. <=:> 220
COPY
... : Copy data from elsewhere.<=:> 260
RESTORE FACTORY SET: Return values to their factory settings.
TRIM ... : Perfonn fine adjustments after setting the color temperature. <=:> 280
210 MANUAL (STD/COLl/COL2/xxCH): Set the following data necessary to perform knob
adjustment
and select ADJUST.
ORIGINAL VALUE ... :
Set the initial value.<=:> 211
SIGNAL:
Select the white signal to be used for adjustment.
INT: Use an internal signal. Simultaneously with the adjustment of the gain and bias, the JOO
IRE
and 20 IRE signals are automatically switched.
EXT: Use an external input signal. When adjuSling the gain and bias, input the proper signal.
ADJUST ... : Perfonn the adjustment with following knobs.<=:> 212
RED: CONTRAST knob (Adjust the R gain or bias with the CONTRAST knob.)
GREEN: BRIGHT knob (Adjust the G gain or bias with the BRIGHT knob.)
BLUE: CHROMA knob (Adjust the B gain or bias with the CHROMA knob.)
LUMINANCE: PHASE knob (Adjust luminance with the PHASE knob.)
211 ORIGINAL VALUE: Select STD, COL I, COL2, or CH SET. s> 2IO
STD: Use grobal data (factory setting: D65).
COLI: Use grobal data (factory setting: D65).
COL2: Use grobal data (factory setting: D93).
CH SET: Use data for each individual channel (factory setting: D65). Use the numeric
keypad to select the desired channel.
212 ADJUST (STD/COLl/COL2/xxCH) (1/2): Adjust the gain with the proper knob.
I GAIN R:xxxx G:xxxx B:xxxx
212 ADJUST (STD/COLl/COL2/xxCH) (2/2): Adjust the bias with the proper knob.
I BIAS R:xxxx G:xxxx B:xxxx
220 PROBE (STD/COLl/COL2/xxCH): Select the probe.<=:> 241 (Using a CA-IOO)
241 CA-100 (STD/COLl/COL2/xxCH): Select either D65 or D93, and enter values for
LOWLIGHT and HIGHLIGHT. Rather than selecting D65 or D93, you may instead enter
the values of the CIE 193
J color system x and y coordinates.
D65: Use D65.
D93: Use D93.
X: Enter the x coordinate.
Y: Enter the y coordinate.
LOW LIGHT (201RE): Enter the brightness (cd/m') for low light.
HIGH LIGHT (lOOIRE): Enter the brightness (cd/m
1
)
for high light.
START: Start adjustment.<=:> 242
242 COLOR TEMP ADJ (STD/COLl/COL2/xxCH): Perform adjustment.
SET PROBE ON CRT:
PRESS ENTER:
Adjustment starts when the probe is placed against the center of the screen and the
ENTER button is pressed.
260 COPY (STD/COLl/COL2/xxCH): Select the source to be copied from.
OTHER VALUE ... : Copy data from another channel or from common data.<=:> 261
OTHER MONITOR ... : Copy data from another monitor. <=:> 263
MEMORY CARD ... :
Copy data from a memory card. <=:> 266
261 OTHER VALUE (STD/COLl/COL2/xxCH): Select STD, COL 1,COL2, or CH
SET. <=:>
Copy is carried out.
STD:
Copy common data (factory setting: D65).
COLI: Copy common data (factory setting: D65).
COL2: Copy common data (factory setting: D93 ).
CH SET: Copy data from a particular chaMel (factory setting: D65). Enter the number of
the channel from which the data will be copied.
263 OTHER MONITOR (STD/COLl/COL2/xxCH): Input the address of the monitor
from which the data will be copied.
MONITOR ADDRESS: Input the address of the monitor from which the data will be
COjlied. S) 264
264 OTHER MONITOR (STD/COL1/COL2/xxCH): Select STD, COL J ,COL2,
or CH SET. <=:>
Copy Is carried out.
STD:
Copy common data (factory setting: D65).
COLI: Copy common data (factory setting: D65).
COL2: Copy common data (factory setting: D93).
CH SET: Copy data from a particular channel (factory setting: D65J. Enter the
number of the
chaMel from which the data will be CO.!'_ied.
266 MEMORY CARD (STD/COLl/COL2/xxCH): Select the file name.<=:> 267
267 FILE NAME (STD/COLl/COL2/xxCH): Select STD, COL I, COL2,or CH
SET.
<=:> Copy is carried out.
STD:
Copy common data (factory setting: D65J.
COLI: Copy common data (factory setting: D65J.
COL2: Copy common data (factory setting: D93 ).
CH SET: Copy data from a particular channel (factory setting: D65J. Enter the
number of the channel from which the data will be copied.
