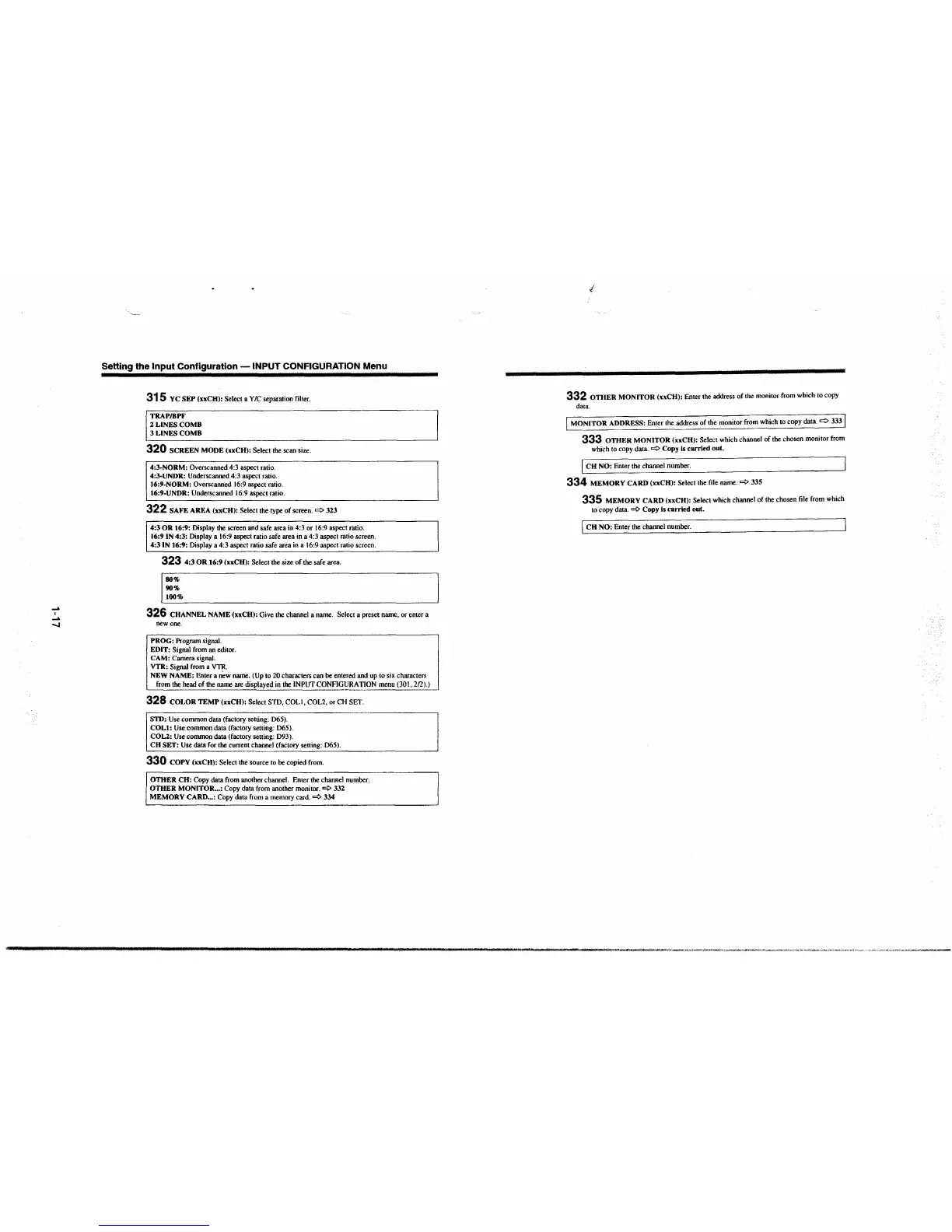

Setting the Input Configuration - INPUT CONFIGURATION Menu
315 YC SEP (xxCH): Select a Y/C separation filter.
[
TRAP/BPF
2LINESCOMB
3LINESCOMB
320 SCREEN MODE (xxCH): Select the scan size.
4:3-NORM: Overscanned 4:3 aspect ratio.
4:3-UNDR: Underscanned 4:3 aspect ratio.
16:9-NORM: Overscanned 16:9 aspect ratio.
16:9-UNDR: Underscanned 16:9 aspect ratio.
322 SAFE AREA (xxCH): Select the type of screen.
~
323
4:3 OR 16:9: Display
the screen and safe area in 4:3 or 16:9 aspect ratio.
16:9 IN 4:3: Display a 16:9 aspect ratio safe area in a 4:3 aspect ratio screen.
4:3 IN 16:9: Display a 4:3 aspect ratio safe area in a 16:9 aspect ratio screen.
323 4:3 OR 16:9 (xxCH): Select the size of the safe area.
[
80%
90%
100%
326 CHANNEL NAME (xxCH): Give the channel a name. Select a preset name, or enter a
new one.
PROG: Program signal.
EDIT: Signal from an editor.
CAM: Camera signal.
VTR: Signal from a VTR.
NEW NAME: Enter a new name. (Up to 20 characters can be entered and up to six characters
from the head of the name are displayed in the INPUT CONFIGURATION menu (301.
2(1).)
328 COLOR TEMP (xxCH): Select STD, COLI, COL2, or CH SET.
STD: Use common data
(factory setting: 065).
COLI: Use common data
(factory setting: 065).
COL2: Use common data
(factory setting: D93).
CH SET: Use data for the current channel
(factory setting: 065).
330 COPY (xxCH): Select the source to be copied from.
OTHER CH: Copy data from another channel. Enter the channel number.
OTHER MONITOR ... : Copy data from another monitor.
~
332
MEMORY CARD ... : Copy data from a memory card.~ 334
./_
332 OTHER MONITOR (xxCH): Enter the address of the monitor from which to copy
data.
MONITOR ADDRESS: Enter the address of the monitor from which to copy data.
~
333
333 OTHER MONITOR (xxCH): Select which channel of the chosen monitor from
which to copy data.
~
Copy Is carried out.
[ CH NO: Enter the channel number.
334 MEMORY CARD (xxCH): Select the file name.
~
335
335 MEMORY CARD (xxCH): Select which channel of the chosen file from which
to copy data.
~
Copy Is carried out.
[ CH NO: Enter
the channel number.
