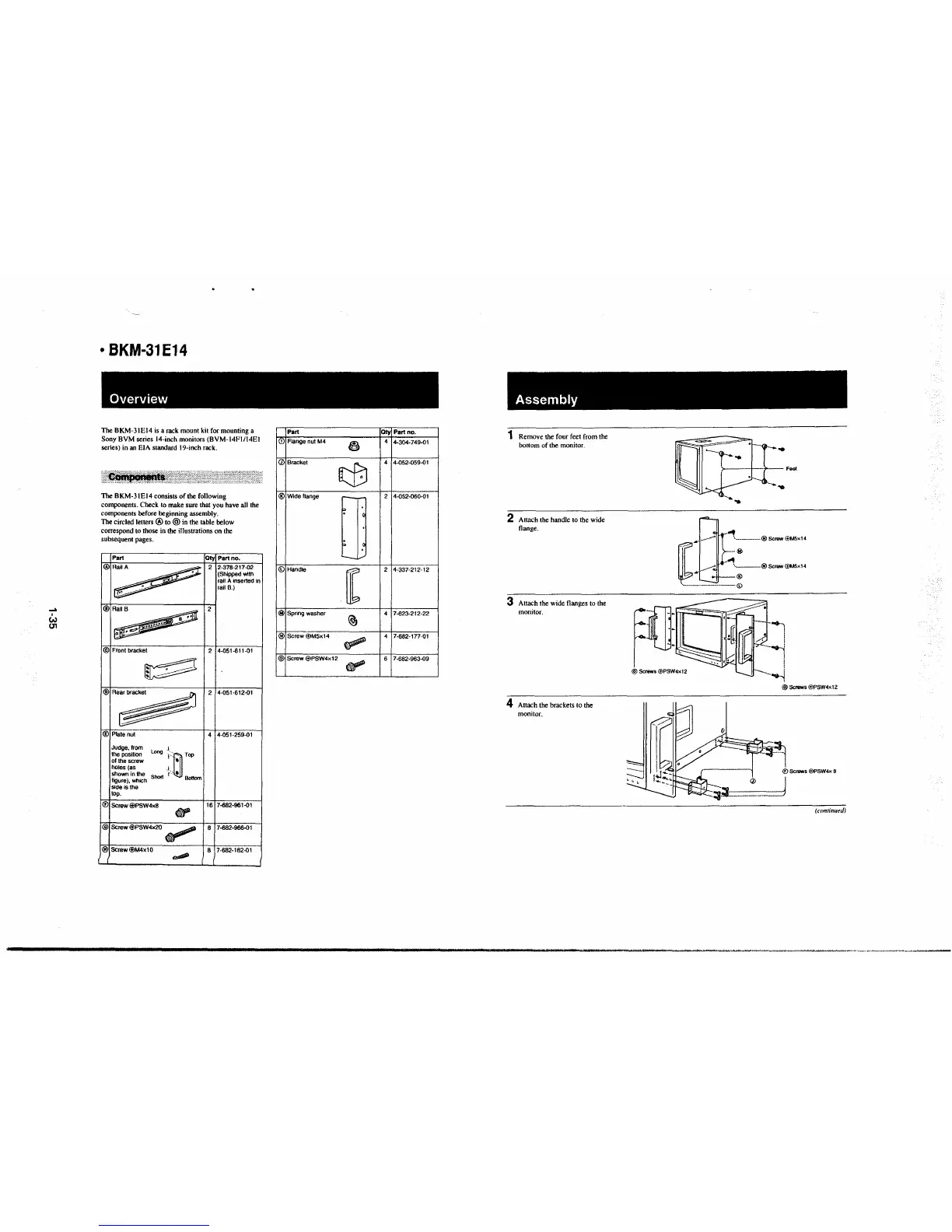

• BKM-31E14
Overview
The BKM-31El4 is a rack mount kit for mounting a
Sony BVM series 14-inch monitors (BVM-14Fl/14E1
series) in an EIA standard 19-inch rack.
The BKM-31El4 consists of the following
components. Check to make sure that you have all the
components before beginning assembly.
The circled letters
@ to @ in the table below
correspond to those in the illustrations on the
subsequent pages.
Part
Qty
Pan no.
@~
2 2-378-217-02
(Shipped with
rail A inserted in
railB.)
e•
@~
2
...
t- .........
D ,. .. f&:?
© Front bracket
2 4-051-611-01
~
®~
2 4-051-612-01
® Plate nut
4 4-051-259-01
Judge,
from .\
the posrtion Long 1::~ Top
of the screw •
holes (as -1
:~:;. i~':h Shof1 r:· • Bottom
side ts the
top.
® Screw @PSW4x8
16 7-682-961-01
011'
@ Screw@PSW4x20
~
8 7-682-968-01
® Screw @M4x10
8 7-682-162·01
,,,,,.,,.
Part
Qty
Part no.
CD Flange nut M4
'®
4 4-304-749-01
Q) Bracket
tfJ
4 4-052-059-01
® Wide flange
~
2 4-052-060-01
© Handle
[
2 4-337-212-12
® Spring washer
~
4 7-623-212·22
® Screw@M5x14
~
4 7-682-177-01
@ Screw@PSW4x12
~
6 7-682-963-09
Assembly
1 Remove the four feet from the
bottom of the monitor.
2 Attach the handle 10 the wide
flange.
3 Attach the wide flanges to the
monitor.
4 Attach the brackets to the
monitor.
..
>----+-·+-- Feel
..
11
t
'·····-·--·--® Screw ®M5x14
@
..,
--® Screw (t)M5xl4
®
-····-·····--···---········ (9
1
-.J
i
~
@ 5cl'9WS ®PSW4x12
-~1
~
..
. ® Screws @PS
~
j
I7-~_;;f ____________ _
(nmtinuedJ
To Next Page
