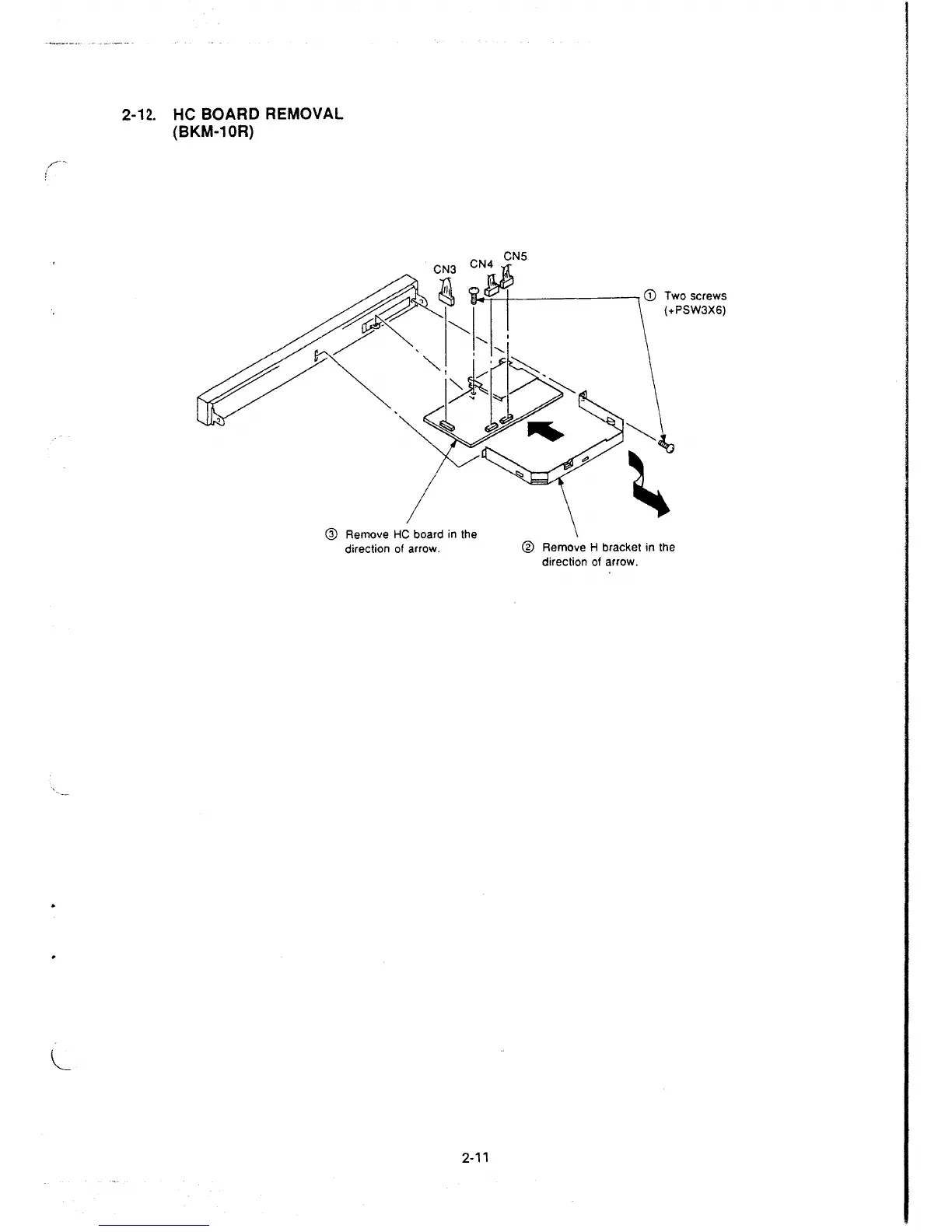

2-12. HC BOARD REMOVAL
(BKM-10R)
--.:.--+--------, CD Two screws
@ Remove HC board in the
direction of arrow.
2-11
(+PSW3X6)
@ Remove H bracket in the
direction of arrow.
