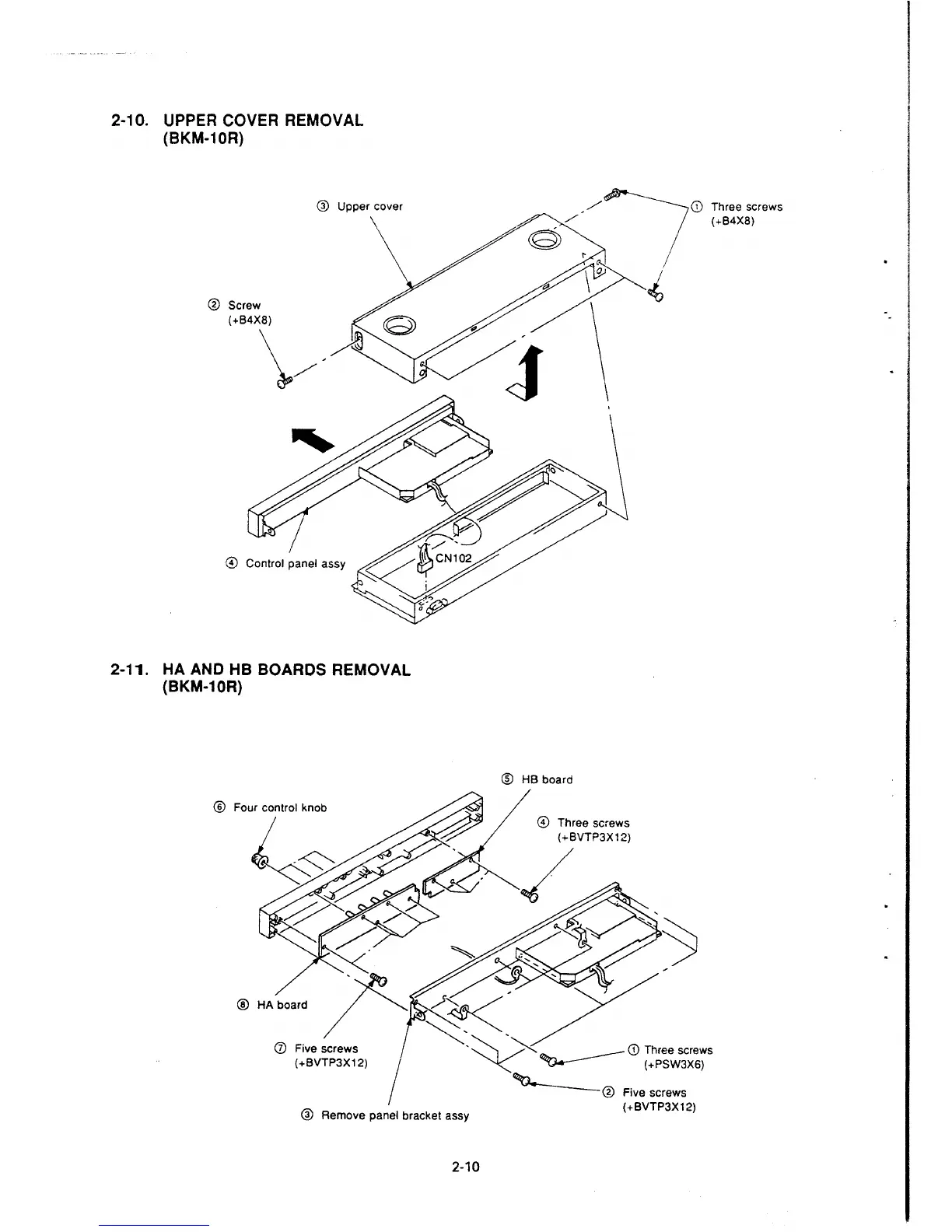

2-10. UPPER COVER REMOVAL
(BKM-10R)
@ Upper cover
© Control panel assy
2-11. HA AND HB BOARDS REMOVAL
(BKM-10R)
@ HA board
@ Remove panel bracket assy
2-10
® HB board
© Three screws
(+BVTP3X12)
./
-® Five screws
(+BVTP3X12)
