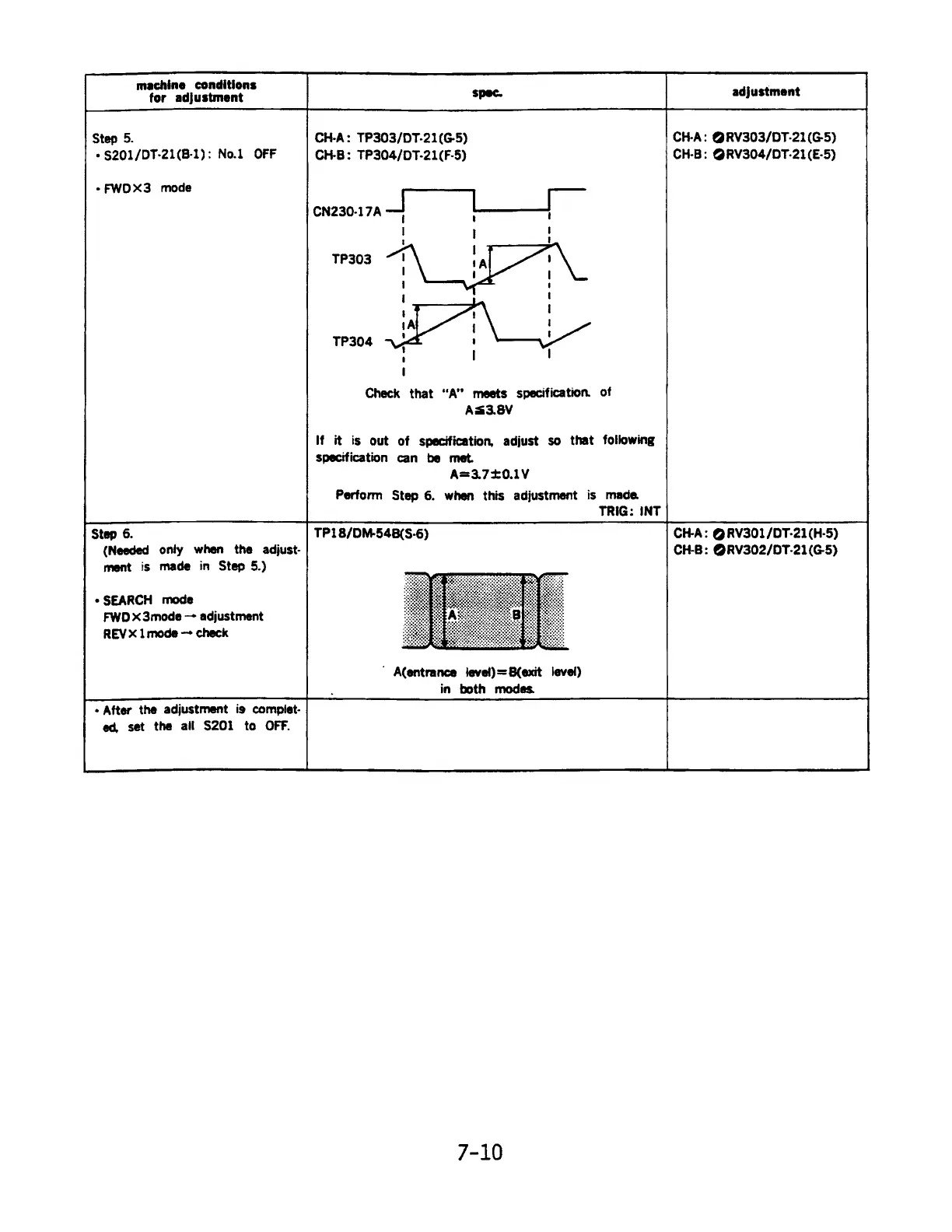

Sony BVU-950 - Page 71

machine conditions
for adjustment
spec.
adjustment
Step 5.
© §201/DT-21(B-1): No.1 OFF
CH-A: TP303/DT-21(G5)
CH-B: TP304/DT-21(F-5)
CH-A: @RV303/0T-21(G-5)
CH-B: @RV304/DT-21(E-5)
eFWOX3 mode TO ST
CN230-17A
! 3 !
I i |
1 '
j ‘
' i |
1A { !
’ ¢
TP304 '
| I
(
Check that “A” meets specification. of
Aai3.8V
If it is out of specification, adjust so that following
specification can be met
A=3.7£0.1V
Pertorm Step 6. when this adjustment is made.
TRIG: INT
Step 6. TP18/0M-548(S-6) CH-A: @RV301 /DT-21(H-5)
(Needed only when the adjust-
ment is made in Step 5.)
«SEARCH mode
FWD X 3mode -— adjustment
REV X 1 mode — check
' A(entrance level)=8(exit level)
in both modes.
CH-B: @RV302/DT-21(G-5)
- After the adjustment ig compiet-
ed, set the all S201 to OFF.
7-10
