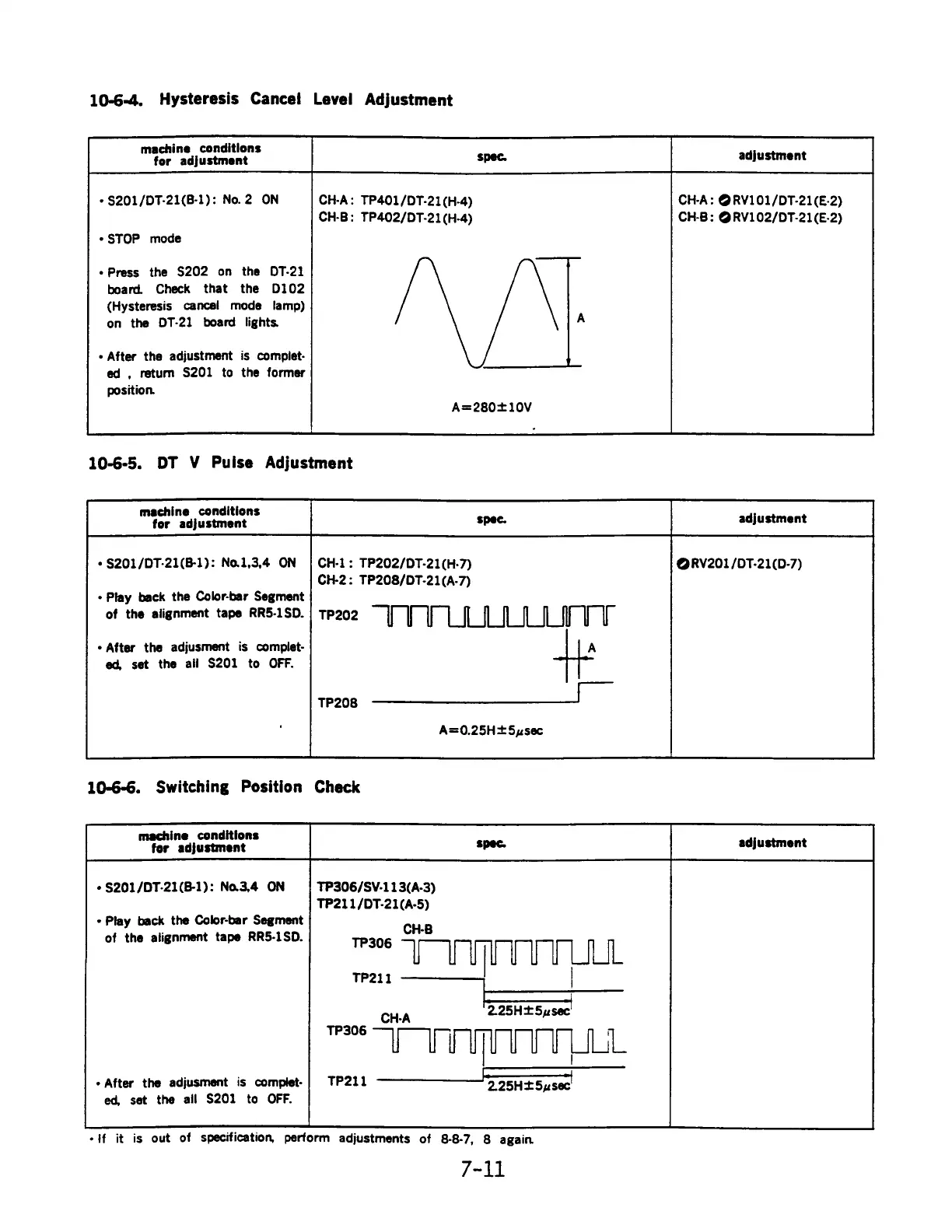

10-6-4. Hysteresis Cancel Level Adjustment
machine conditions
for adjustment
spec.
adjustment
¢ §201/DT-21(B-1): No.2 ON
*STOP mode
«Press the S202 on the DT-21
board. Check that the D102
(Hysteresis cancel mode lamp)
on the OT-21 board lights.
¢ After the adjustment is compilet-
ed , return S201 to the former
position.
CH-A: TP401/0T-21(H-4)
CH-B: TP402/DT-21(H-4)
CH-A: @RV101/DT-21(E-2)
CH-B: @RV102/DT-21(E-2)
A=2802110V
10-6-5. DT V Puise Adjustment
machine conditions
for
adjustment
spec.
adjustment
¢ §201/DT-21(B-1): No.1,3,4 ON | CH-1: TP202/DT-21(H-7) Q@RV201 /OT-21(D-7)
CH-2: TP208/DT-21(A-7)
¢ Play back the Color-bar Segment
of the alignment tape RR5-1SD. | TP202 | | | | | | | | ] I | |
¢
After
the
adjusment
is
compiet-
A
ed, set the all S201 to OFF.
TP208 =
A=0.25H+5ysec
10-6-6. Switching Position Check
machine conditions
for
adjustment
spec.
adjustment
¢ $201 /DT-21(8-1): No.3,4 ON TP306/SV-113(A-3)
TP211/DT-21(A-5)
¢ Play back the Color-bar Segment HW
of the alignment tape RR5-1SD. TP306 STATA
TP211 |
CHA '225H+ Sysec
lum" ANNAN UL
|
- After the adjusment is compiet-| TP211 MD 25HsS asec
ed, set the ail S201 to OFF.
-if
it
is
out
of
specification,
perform
adjustments
of
8-8-7,
8
again
7-11
