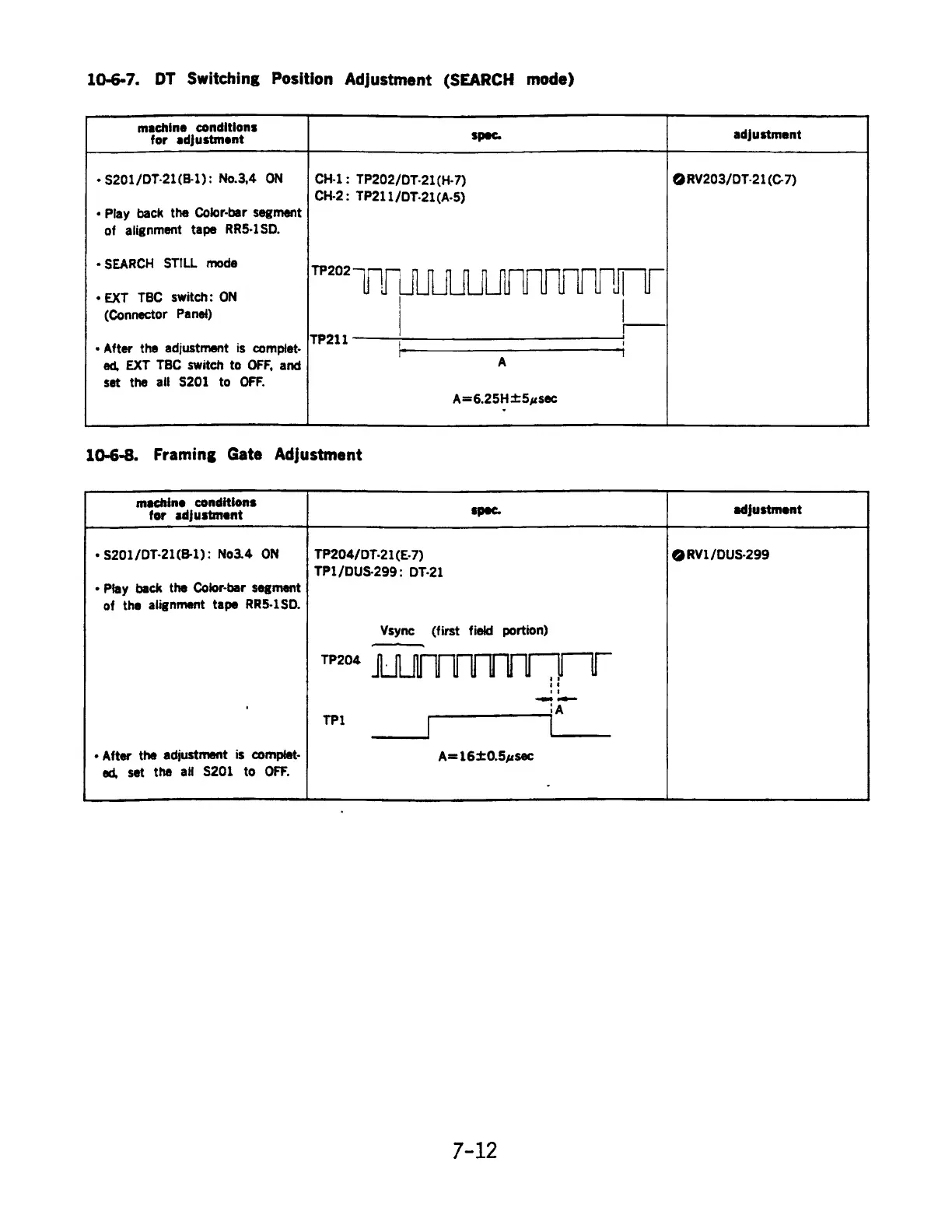

10-6-7. DT Switching Position Adjustment (SEARCH mode)
machine conditions
for adjustment spec. adjustment
¢ §201/DT-21(B-1): No.3,4 ON CH-1 : TP202/0T-21(H-7) @RV203/DT-21(C-7)
CH-2: TP211/0T-21(A-5)
«Play back the Color-bar segment
of alignment tape RR5-1SD.
« SEARCH STILL mode TP202 mm
*EXT TBC switch: ON UUUULUL | | | | |
(Connector
Panel)
|
«After the adjustment is compiet- ve2il -—— _
ed, EXT TBC switch to OFF, and A
set the all S201 to OFF.
A=6.25H+5yzsec
10-6-8. Framing Gate Adjustment
machine conditions
for adjustment spec. adjustment
¢ §201/DT-21(8-1): No3.4 ON TP204/DT-21(E-7) @RV1/DUS-299
¢ Play back the Color-bar segment
of the alignment tape RR5-1SD.
° After the adjustment is cornpiet-
ed, set the all S201 to OFF.
TP1/DUS-299: DT-21
Vsync (first field portion)
res 1D Im
‘
I
=o
TP1
|
A=16+0.5ysec
7-12
