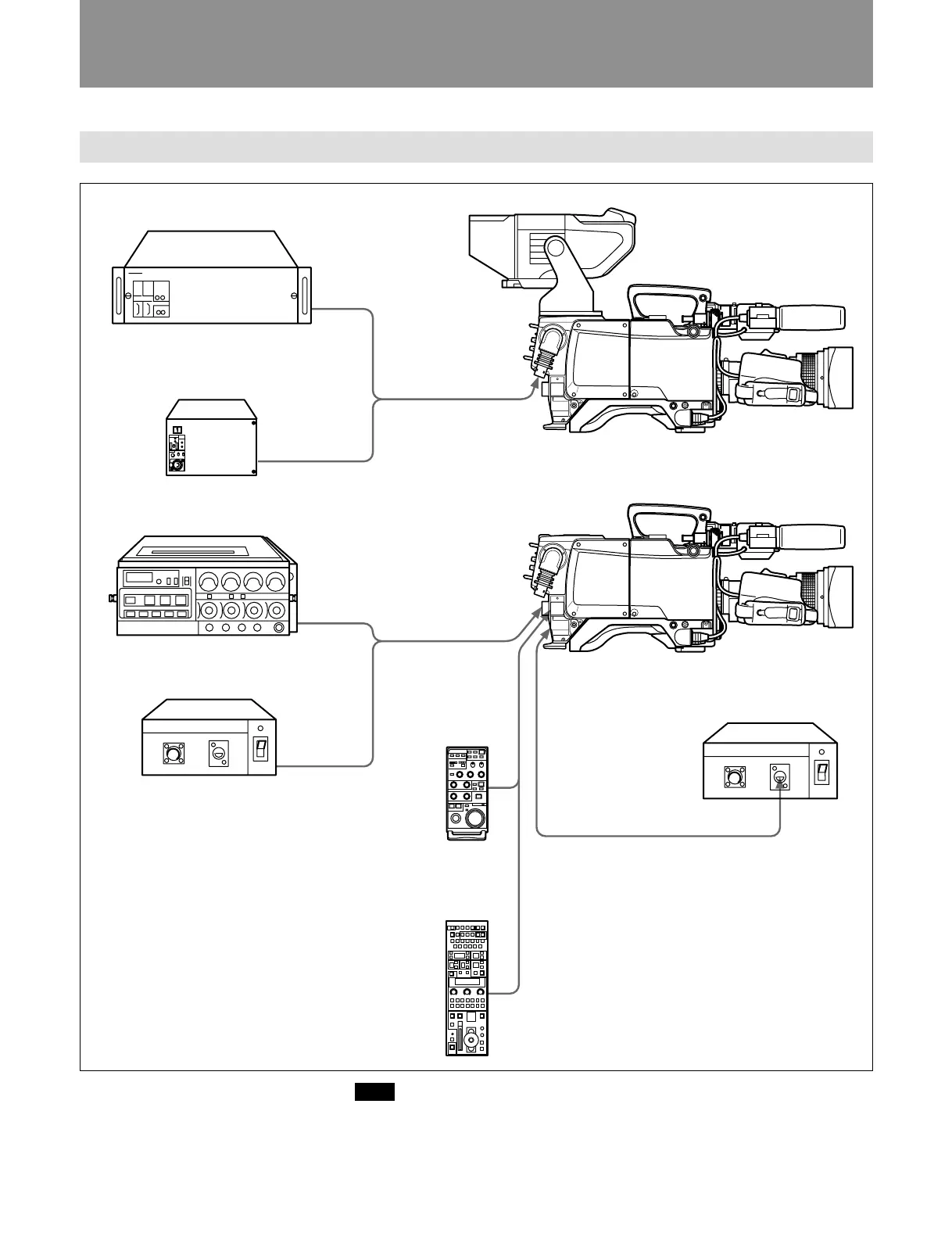

Connections
Connectable Equipment
CCU-700A/700AP Series Camera Control Unit
To the CAMERA
connector
BVF-55/55CE 5-inch Viewfinder
CCU-550/550P Series Camera Control Unit
Triax cable
BVW-50/50P/DVW-250/250P Portable VTR
To the CAMERA
connector (26-pin)
To the VTR
connector (26-pin)
Camera cable
To the REMOTE
connector
To the DC IN connector
AC-550/550CE AC Adaptor
RM-B150
Remote Control Unit
AC-550/550CE AC Adaptor
To the CAMERA
connector (14-pin)
DC cord (supplied with
the AC-550/550CE)
To the DC OUT
connector
Note
When a Camera Control Unit is connected, do not connect other
equipment to the VTR connector. If a Camera Control Unit and portable
VTR are connected simultaneously, the camera will not operate normally.
To the triax
cable connector
RCP-700 series
Remote Control
Unit
