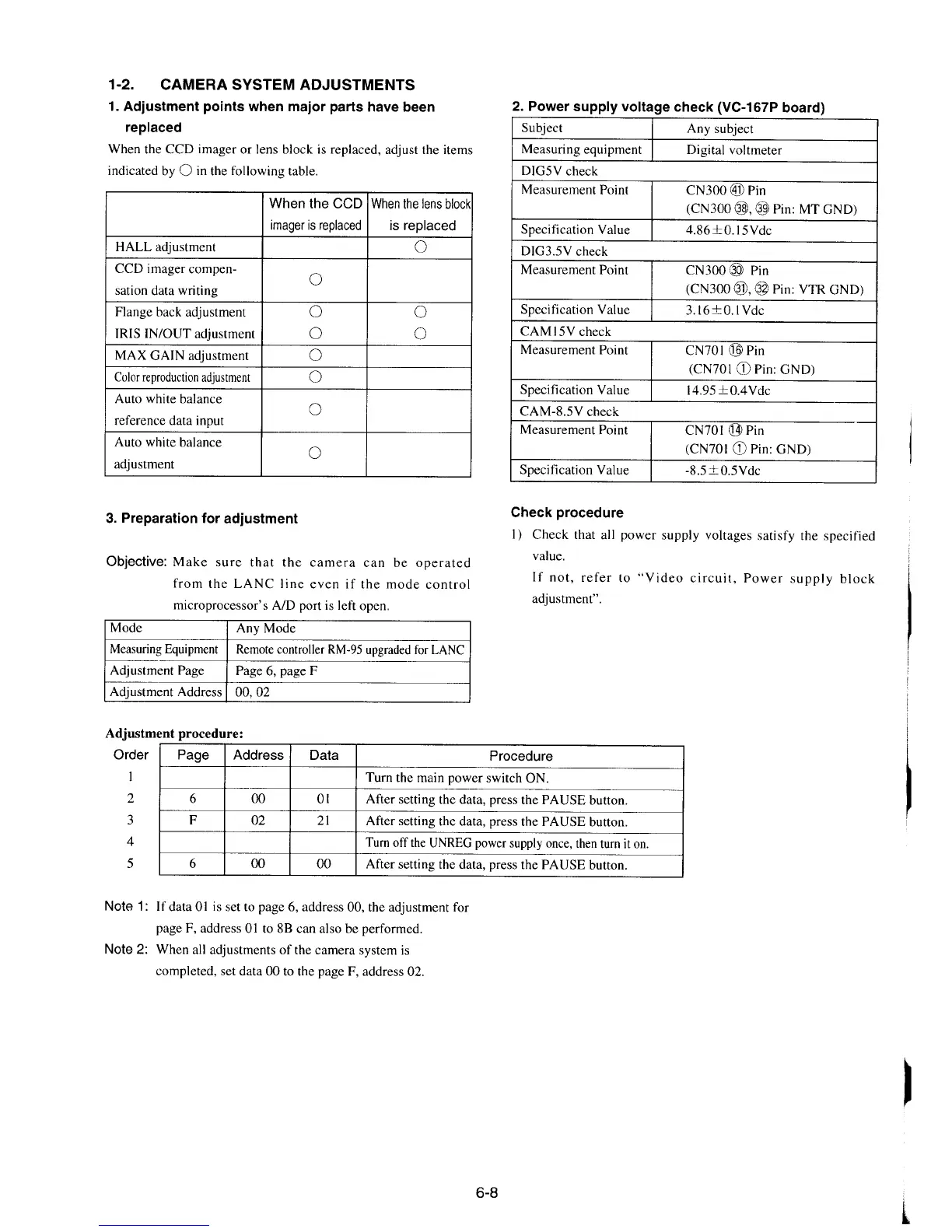

Sony CCD-TR330E - Adjustment Points When Major Parts Have Been Replaced; Preparation for Camera System Adjustment; Power Supply Voltage Check(VC-167 P Board)
