Sony CCD-TR330E - Removal of CF-40 Board; Removal of PW-108 Board

276 pages

Save Page as PDF

To Next Page

To Previous Page

Main Page

Specifications1
Checking Supplied Accessories2
Safety Check-Out2
Table of Contents3
How to Remove Cassette if the Main Power Cannot be Switched on5
Checking Your Model Number6
Charging and Installing the Battery Pack6
Inserting a Cassette8
Camera Recording9
Hints for Better Shooting11
Checking the Recorded Picture12
Connections for Playback13
Playing Back a Tape14
Using Alternate Power Sources15
Shooting with Backlighting17
Recording with the Date or Time17
Using the PROGRAM AE Function18
Shooting Scenery in Several Short Takes19
Superimposing a Title19
Using the Steady Shot Function20
Using the Wide Mode Function20
Editing Onto Another Tape21
Changing the Mode Settings21
Changing the Lithium Battery in the Camcorder23
Playback Modes24
Tips for Using the Battery Pack24
Resetting the Date and Time24
Notes on the Battery Case26
Notes on Charging26
Notes on the Terminals26
Maintenance Information and Precautions27
Using Your Camcorder Abroad30
Identifying the Parts31
Remote Controller Parts33
Attaching the Shoulder Strap33
Remote Control Direction34
Preparing the Remote Commander34
Using the Remote Commander34
To Watch the Demonstration35
In the Viewfinder35
Warning Indicators36
Disassembly37
Removal of F Panel Assy, MA-238 Board and Microphone37
Removal of Cabinet Assy37

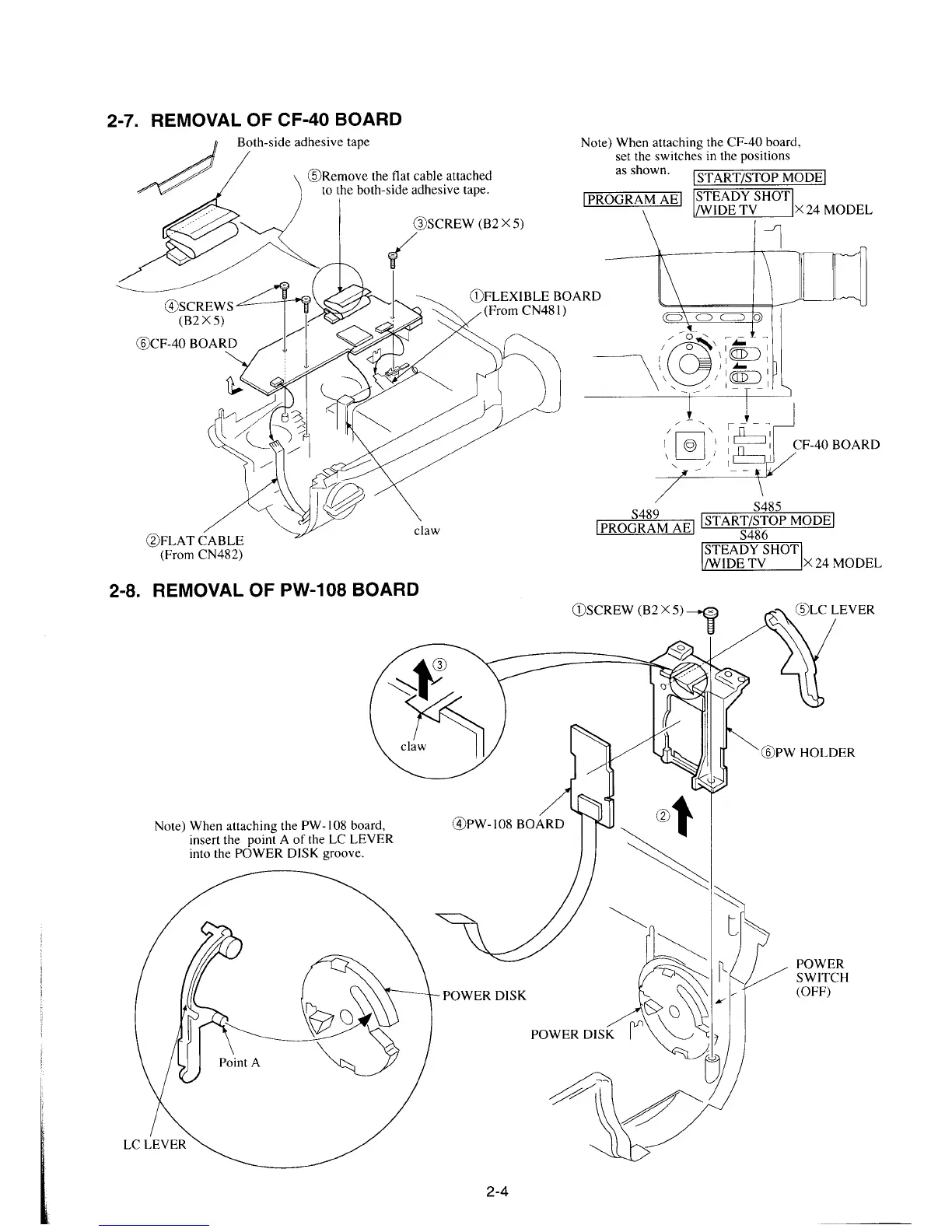

Removal of CF-40 Board38
Removal of PW-108 Board38
Removal of EVF Block Assy39
Removal of CRT Assy and VF-87P Board39
Internal Views40
Circuit Boards Location41
Overall Block Diagram42
Camera Block Diagram45
Video/Audio Block Diagram48
System Control Block Diagram51
Servo Block Diagram53
Mode Control/Evf Block Diagram56
Power Block Diagram59
Printed Wiring Boards and Schematic Diagrams62
Frame Schematic Diagram62
Precautions Upon Replacing CCD Imager71
VC-167P, FP-249 Schematic Diagrams92
VC-167P, MA-238 Schematic Diagrams95
DD-80P Printed Wiring Board100
DD-80P, VC-167P Schematic Diagrams102
FP-249 Printed Wiring Board105
VC-167P Printed Wiring Board108
CF-40, PW-108 Printed Wiring Boards112
CF-40, PW-108 Schematic Diagram115
VF-87P, JK-129, CD-139 Printed Wiring Boards and Schematic Diagram121
VF-87P Schematic Diagram127
TZ-3 (Steady Shot) Printed Wiring Board129
TZ-3 Schematic Diagram131
Repair Parts List134
Exploded Views134
Cabinet(L), F Panel Section View135
Cabinet(R) Section View136
EVF Section Parts137
Main Section Parts138
Cassette Compartment Block Section Parts139
LS Chassis Block Section Parts140
Mechanism Chassis Block Section Parts141
Electrical Parts List142
Camera Section Adjustment158
Camera Section Adjustment Switch Settings159
Camera Section Adjustment Subject159
Adjustment Remote Commander (RM-95 Upgraded)161
Page F Address List163
Adjustment Points When Major Parts Have Been Replaced165
Preparation for Camera System Adjustment165
Power Supply Voltage Check(VC-167P Board)165
Initialization of Page F Data166
V SUB Adjustment167
VRG Adjustment167
Page F Data Modification168
28 Mhz Crystal Oscillator Adjustment169
Hall Adjustment171
Flange Back Adjustment173
Picture Frame Setting175
Color Reproduction Adjustment176
IRIS IN/OUT Adjustment177
MAX Gain Adjustment178
Auto White Balance Reference Data Input179
Auto White Balance Adjustment180
White Balance Check181
Camera-Shaking Correction Adjustment182
Electronic Viewfinder System Adjustments (VF-87P Board)183
Arrangement Diagram for Adjustment Parts185
Mechanism Section Adjustments186
How to Operate Mechanism after the Cassette Compartment Is Removed186
Tape Path Adjustment187
Video Section Adjustment188
Preparations before Adjustment189
Adjustment Points When Major Parts Are Replaced192
Power Supply System Adjustment192
Servo System Adjustments199
SYNC Level and BURST Level Adjustments199
Switching Position Adjustment200
Capstan FG Offset Adjustment201
Playback Frequency Response Characteristics Adjustment202
DEMD out Level Adjustment203
YD out Level Adjustment204
PB Chroma Level Check205
PB y out Level Adjustment206
FE OSC Check207
Emphasis Input Level Adjustment208
Y FM Deviation Adjustment(Note)209
Y FM Carrier Frequency Adjustment210
Chroma Emphasis Fo Adjustment211
REC y Level Adjustment212
Rec L Level Adjustment213
Rec C Level Adjustment214
Audio System Adjustment215
1.5Mhz Deviation Adjustment216
BPF Fo Adjustment217
Overall Signal Level and Distortion Check218
Overall Noise Level Check218
Arrangement Diagram for Adjustment Parts VC-167P Board219
For Camera Color Reproduction Adjustment (CCD-TR330E Model)220
B-Mechanism: Contents222
Table of B-Mechanism Know-How226
Tape Not Wound231
No Eject (Trouble with M Slider at Unloading)237
Threading Not Completed (Change V-Shaped Drum Base)244
Damage to Tape Due to Slack of T Side Tape253
Tape Not Ejected (Capstan Motor Not Rotating)255
Unification of Improvements "T. Reel Height Change" for the Trouble of Reel Does Not Wind Tape273
Specification Change of B Mechanism Reel Table Torque274
Remedy When Grease Is Attached to Tape275
