Sony CDP-557ESD - Page 21

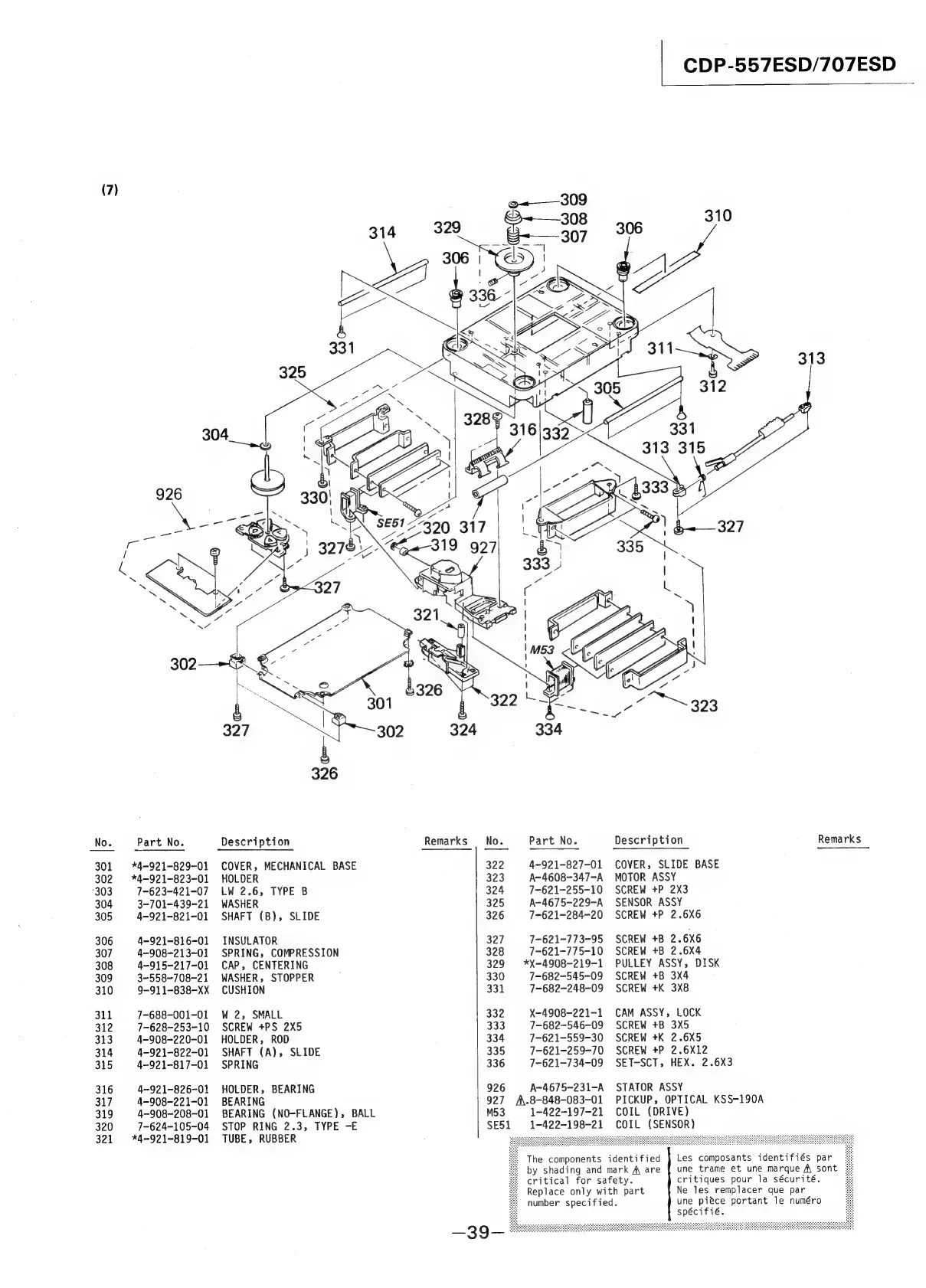

(7)
No.
301
302
‘303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
319
320
321
Part No.
*4-921-829-01
*4-921-823-01
7-623-421-07
3-701-439-21
4-921-821-01
4-921-816-01
4-908-213-01
4-915-217-01
3-558-708-21
9-911-838-XX
7-688-001-01
7-628-253-10
4-908-220-01
4-921-822-01
4-921-817-01
4-921-826-01
4-908-221-01
4-908-208-01
7-624-105-04
*4-921-819-01
Description
COVER, MECHANICAL BASE
HOLDER
LW 2.6, TYPE B
WASHER
SHAFT (B), SLIDE
INSULATOR
SPRING, COMPRESSION
CAP, CENTERING
WASHER, STOPPER
CUSHION
Wo2;, SMALL
SCREW +PS 2X5
HOLDER, ROD
SHAFT (A), SLIDE
SPRING
HOLDER, BEARING
BEARING
BEARING (NO-FLANGE), BALL
STOP RING 2.3, TYPE —-E
TUBE, RUBBER
Remarks No.
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
926
927
M53
SE51
—39—
7
r-/-
Part No.
4-921-827-01
A-4608-347-A
7-621-255-10
A-4675-229-A
7-621-284-20
7-621-773-95
7-621-775-10
*X-4908-219-1
7-682-545-09
7-682-248-09
X-4908-221-1
7-682-546-09
7-621-559-30
7-621-259-70
7-621-734-09
A-4675-231-A
A\.8-848-083-01
1-422-197-21
1-422-198-21
The components identified
by shading and mark A are
critical for safety.
Replace only with part
number specified.
Description
CDP-557ESD/707ESD
313
Remarks
COVER, SLIDE BASE
MOTOR ASSY
SCREW +P 2X3
SENSOR ASSY
SCREW +P 2.6X6
SCREW +B 2.6X6
SCREW +B 2.6X4
PULLEY ASSY, DISK
SCREW +B 3X4
SCREW +K 3X8
CAM ASSY, LOCK
SCREW +B 3X5
SCREW +K 2.6X5
SCREW +P 2.6X12
SET-SCT, HEX. 2.6X3
STATOR ASSY
PICKUP, OPTICAL KSS-190A
COIL (DRIVE)
COIL (SENSOR)
Les composants identifiés par
une trame et une marque A sont
critiques pour la sécurité.
Ne les remplacer que par
une piéce portant le numéro
spécifié
