Sony CDP-557ESD - Section 1: Disassembly; Nut of Volume Removal

CDP-557ESD/707ESD

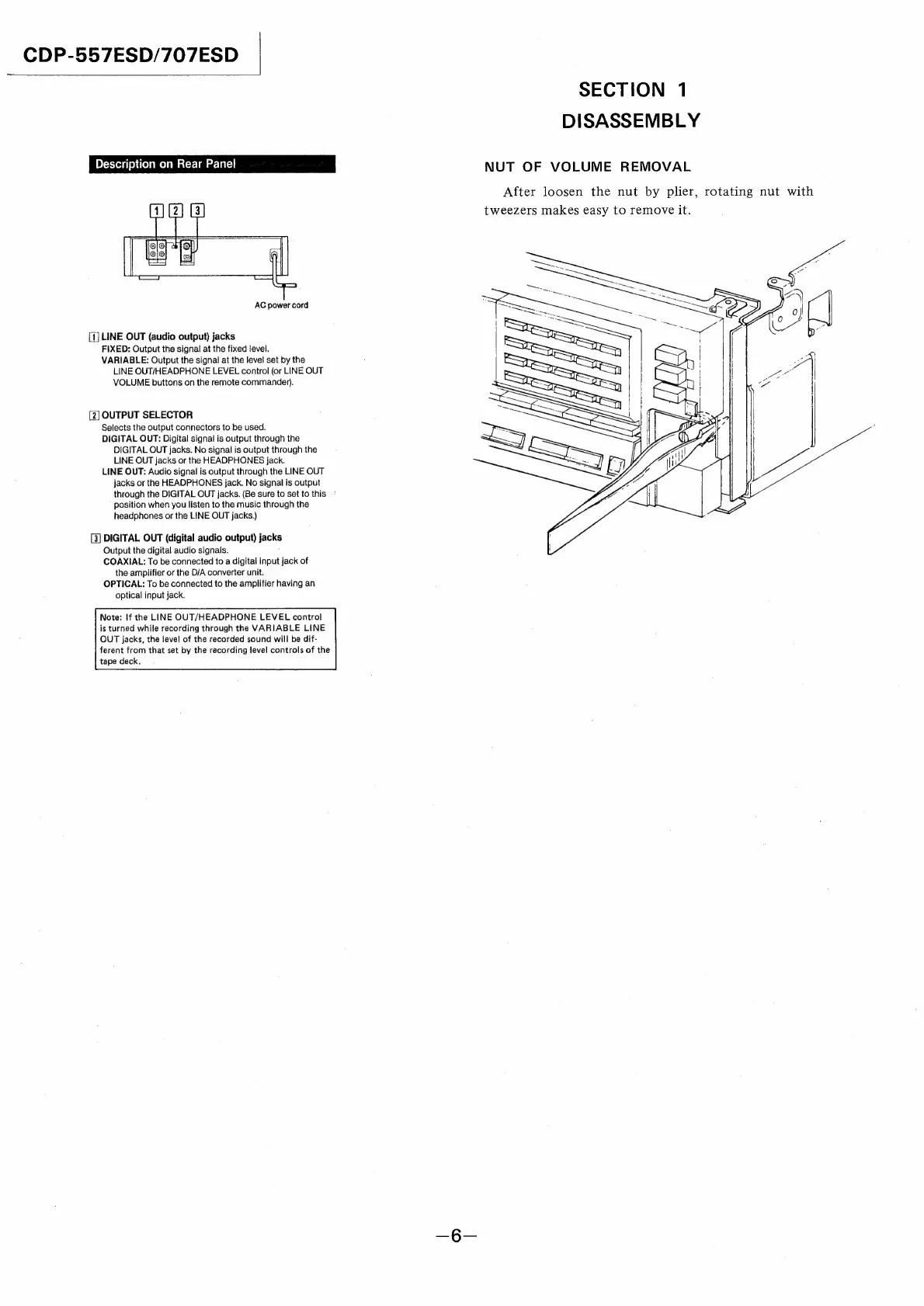

SECTION 1
DISASSEMBLY
NUT OF VOLUME REMOVAL
After loosen the nut by plier, rotating nut with
tweezers makes easy to remove it.
AC power cord
(1] LINE OUT (audio output) jacks
FIXED: Output the signal at the fixed level.
VARIABLE: Output the signal at the level set by the
LINE OUT/HEADPHONE LEVEL control.(or LINE OUT
VOLUME buttons on the remote commander).
[2] OUTPUT SELECTOR
Selects the output connectors to be used.
DIGITAL OUT: Digital signal is output through the
DIGITAL OUT jacks. No signal is output through the
LINE OUT jacks or the HEADPHONES jack.
LINE OUT: Audio signal is output through the LINE OUT
jacks or the HEADPHONES jack. No signal is output
through the DIGITAL OUT jacks. (Be sure to set to this
position when you listen to the music through the
headphones or the LINE OUT jacks.)
[3] DIGITAL OUT (digital audio output) jacks
Output the digital audio signals. ;
COAXIAL: To be connected to a digital input jack of
the amplifier or the D/A converter unit.
OPTICAL: To be connected to the amplifier having an
optical input jack.
Note: If the LINE OUT/HEADPHONE LEVEL control
is turned while recording through the VARIABLE LINE
OUT jacks, the level of the recorded sound will be dif-
ferent from that set by the recording level controls of the
tape deck.
