Sony CDP-C265 - SECTION 5. EXPLODED VIEWS; 5-1. FRONT PANEL AND CASE SECTIONS

NOTE:
¢ Items marked “ * ” are not stocked since they are
seldom required for routine service. Some delay
SECTION 5
EXPLODED VIEWS
e Hardware (# mark) list and accessories and
packing materials are given in the last of this
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
should be anticipated when ordering these items. parts list.
* -XX, -X mean standardized parts, so they may ¢ Abbreviation
have some difference from the original one. CND_ : Canadian model
¢ The mechanical parts with no reference number G : German model
in the exploded views are not supplied. SP _: Singapore model
MY _ : Malaysia model
AUS _ : Australian model

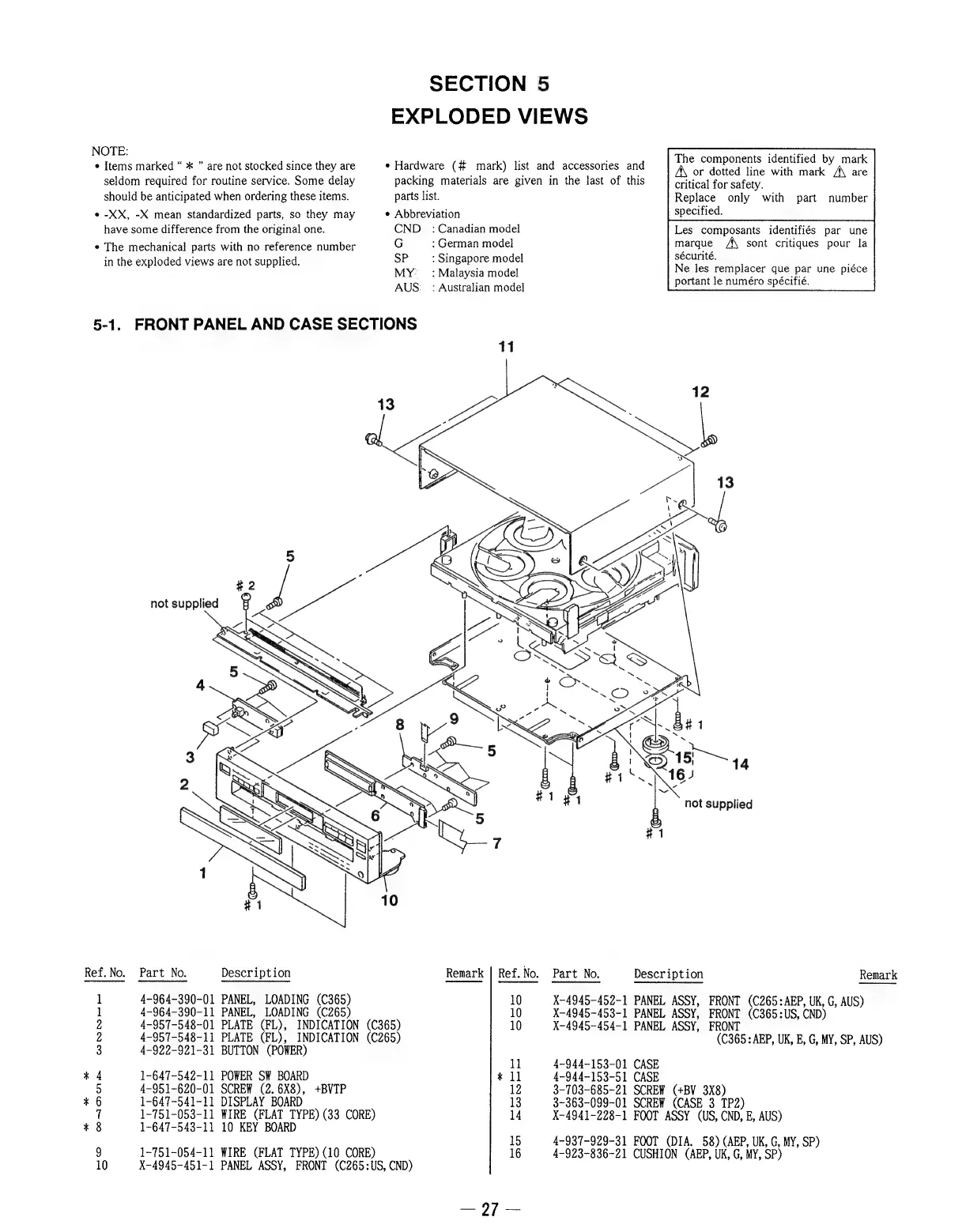

5-1. FRONT PANEL AND CASE SECTIONS
Ref.No. Part No.
4-964-390-01 PANEL, LOADING (C365)
4-964-390-11 PANEL, LOADING (C265)
4-957-548-01 PLATE (FL), INDICATION (C365)
4-957-548-11 PLATE (FL), INDICATION (C265)
4-922-921-31 BUTTON (POWER)
1-647-542-11 POWER SW BOARD
4-951-620-01 SCREW (2. 6X8), +BVTP
1-647-541-11 DISPLAY BOARD
1-751-053-11 WIRE (FLAT TYPE) (33 CORE)
1~647-543-11 10 KEY BOARD
1-751-054-11 WIRE (FLAT TYPE) (10 CORE)
0 X-4945-451-1 PANEL ASSY, FRONT (C265:US, CND)
Description
KO CONDONE wrroee
Remark | Ref. No.
10
10
10
Part No.
Les composants identifiés par une
marque /\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
not supplied
Description
X-4945-452-1 PANEL ASSY, FRONT (C265:AEP, UK, G, AUS)
X-4945-453-1 PANEL ASSY, FRONT (C365:US, CND)
X-4945-454-1 PANEL ASSY, FRONT
(C365: AEP, UK, E, G, MY, SP, AUS)
Remark
4-944-153-01 CASE
4-944-153-51 CASE
3-703-685-21 SCREW (+BV 3X8)
3-363-099-01 SCREW (CASE 3 TP2)
X-4941-228-1 FOOT ASSY (US, CND, E, AUS)
4-937-929-31 FOOT (DIA. 58) (AEP, UK, G, MY, SP)
4-923-836-21 CUSHION (AEP, UK, G, MY, SP)
