Sony CDP-C265 - 5-2. BACK PANEL AND DISK TABLE SECTION

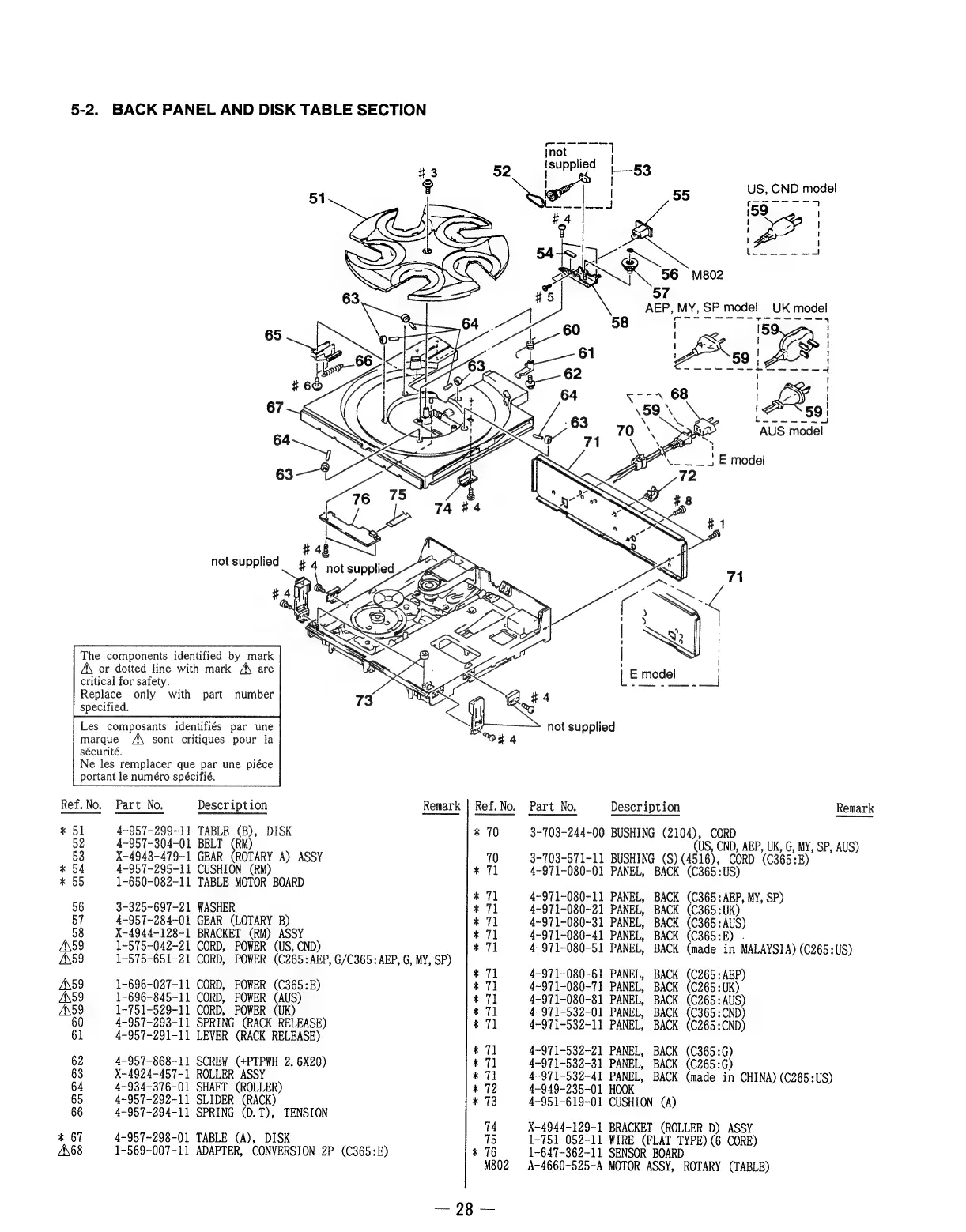

5-2. BACK PANEL AND DISK TABLE SECTION
55 US, CND model
oN
S56» ma02
57
AEP, MY, SP model UK model
ee me me ee oe
not supplied
#4
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque \ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref.
No.
Part
No.
Description
Remark
|
Ref.No.
Part
No.
Description
Remark
*
51
4-957-299-11
TABLE
(B),
DISK
*
70
3-703-244-00
BUSHING
(2104),
CORD
52
4-957-304-01
BELT
(RM)
(US,
CND,
AEP,
UK,
G,
MY,
SP,
AUS)
53
X-4943-479-1
GEAR
(ROTARY
A)
ASSY
70
3-703-571-11
BUSHING
(S)
(4516),
CORD
(C365:E)
*
54
4-957-295-11
CUSHION
(RM)
*
71
4-971-080-01
PANEL,
BACK
(C365:US)
* 55 1-650-082-11 TABLE MOTOR BOARD
56 3-325-697-21 WASHER
57 4~-957-284-01 GEAR (LOTARY B)
58 X-4944-128-1 BRACKET (RM) ASSY
A\59 1-575-042-21 CORD, POWER (US, CND)
A59 1-575-651-21 CORD, POWER (C265:AEP, G/C365: AEP, G, MY, SP)
A\59 1-696-027-11 CORD, POWER (C365:E)
A\59 1-696-845-11 CORD, POWER (AUS)
A\59 1-751-529-11 CORD, POWER (UK)
60 4-957-293-11 SPRING (RACK RELEASE)
61 4-957-291-11 LEVER (RACK RELEASE)
62 4-957-868-11 SCREW (+PTPWH 2. 6X20)
63 X-4924-457-1 ROLLER ASSY
64 4-934-376-01 SHAFT (ROLLER)
65 4~957-292-11 SLIDER (RACK) 73 4-951-619-01 CUSHION (A)
66 4-957-294-11 SPRING (D.T), TENSION
74 X-4944-129-1 BRACKET (ROLLER D) ASSY
*
67
4-957-298-01
TABLE
(A),
DISK
15
1-751-052-11
WIRE
(FLAT
TYPE)
(6
CORE)
A\68 1-569-007-11 ADAPTER, CONVERSION 2P (C365:E) * 76 1-647-362-11 SENSOR BOARD
M802 A-4660-525-A MOTOR ASSY, ROTARY (TABLE)
71 4~971-080-11 PANEL, BACK (C365:AEP, MY, SP)
71 4-971-080-21 PANEL, BACK (C365:UK)
4-971-080-31 PANEL, BACK (C365:AUS)
71 4-971-080-41 PANEL, BACK (C365:E) .
71 4-971-080-51 PANEL, BACK (made in MALAYSIA) (C265:US)
71 4-971-080-61 PANEL, BACK (C265:AEP)
71 4~971-080-71 PANEL, BACK (C265:UK)
4-971-080-81 PANEL, BACK (C265:AUS)
71 4-971-532-01 PANEL, BACK (C365:CND)
71 4-971-532-11 PANEL, BACK (C265:CND)
71 4-971-532-21 PANEL, BACK (C365:G)
71 4-971-532-31 PANEL, BACK (C265:G)
4-971-532-41 PANEL, BACK (made in CHINA) (C265:US)
72 4-949-235-01 HOOK
