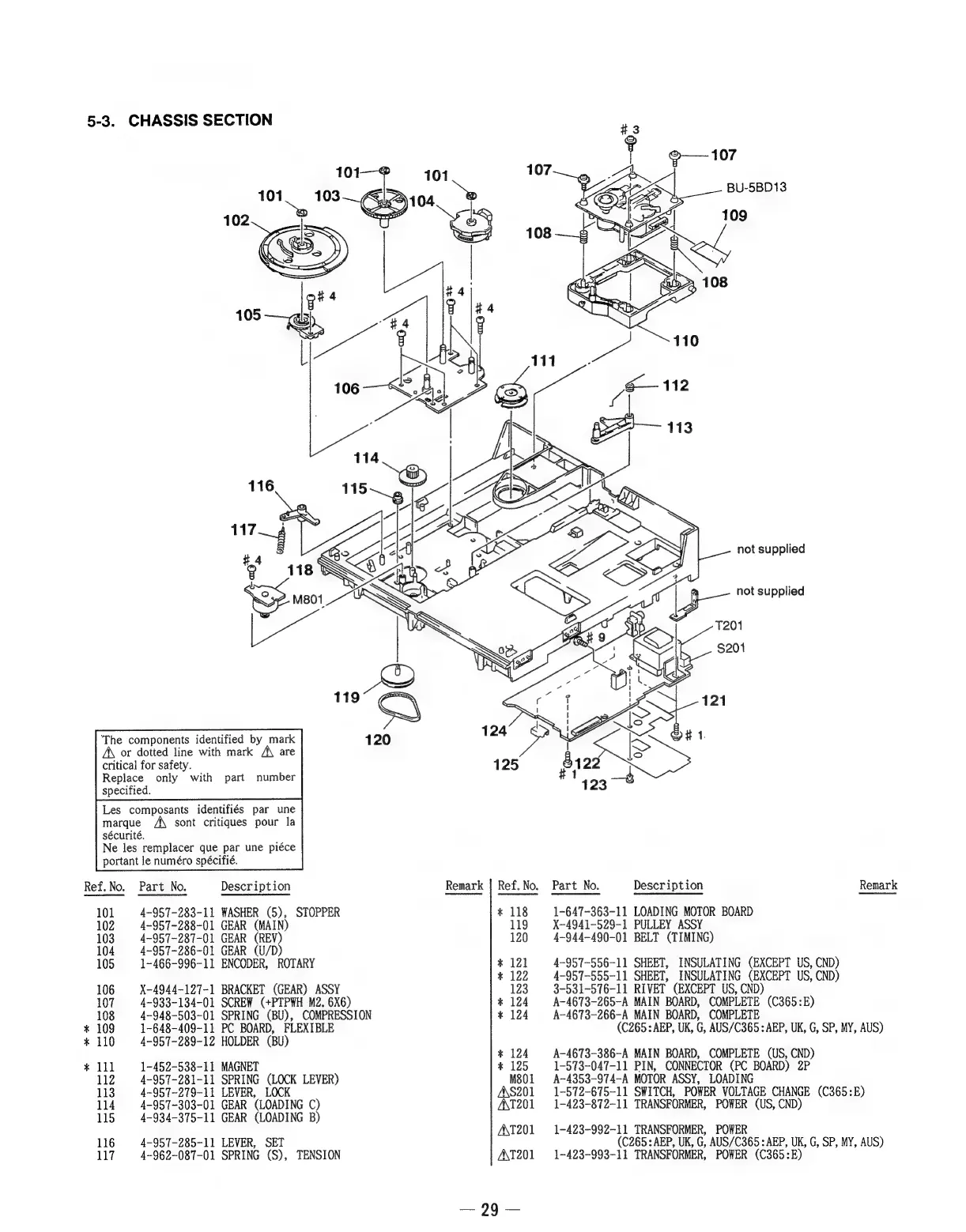

5-3. CHASSIS SECTION
‘The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque /\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No. Part No. Description
101 4-957-283-11 WASHER (5), STOPPER
102 4-957-288-01 GEAR (MAIN)
103 4~957-287-01 GEAR (REV)
104 4-957-286-01 GEAR (U/D)
105 1-466-996-11 ENCODER, ROTARY
Remark
106 X-4944-127-1 BRACKET (GEAR) ASSY
107 4-933-134-01 SCREW (+PTPHH M2. 6X6)
108 4-948-503-01 SPRING (BU), COMPRESSION
* 109 1-648-409-11 PC BOARD, FLEXIBLE
* 110 4-957-289-12 HOLDER (BU)
* 11] 1-452-538-11 MAGNET
112 4-957-281-11 SPRING (LOCK LEVER)
113 4-957-279-11 LEVER, LOCK
114 4-957-303-01 GEAR (LOADING C)
115 4-934-375-11 GEAR (LOADING B)
116 4-957-285-11 LEVER, SET
117 4~962-087-01 SPRING (S), TENSION
* 118
119
120
121
122
123
124
124
me
e %
124
125
M801
AS201
A\T201
A\T201
A\T201
cad
Ref. No.
Part No. Description Remark
1-647-363-11 LOADING MOTOR BOARD
X-494]-529-1 PULLEY ASSY
4-944-490-01 BELT (TIMING)
4-957-556-11 SHEET, INSULATING (EXCEPT US, CND)
4-957-555-11 SHEET, INSULATING (EXCEPT US, CND)
3-531-576-11 RIVET (EXCEPT US, CND)
A-4673-265-A MAIN BOARD, COMPLETE (C365:E)
A-4673-266-A MAIN BOARD, COMPLETE
(C265: AEP, UK, G, AUS/C365: AEP, UK, G, SP, MY, AUS)
A-4673-386-A MAIN BOARD, COMPLETE (US, CND)
1-573-047-11 PIN, CONNECTOR (PC BOARD) 2P
A-4353-974-A MOTOR ASSY, LOADING
1-572-675-11 SWITCH, POWER VOLTAGE CHANGE (C365:E)
1-423-872-11 TRANSFORMER, POWER (US, CND)
1-423-992-11 TRANSFORMER, POWER
(C265: AEP, UK, G, AUS/C365: AEP, UK, G, SP, MY, AUS)
1-423-993-11 TRANSFORMER, POWER (C365:E)
