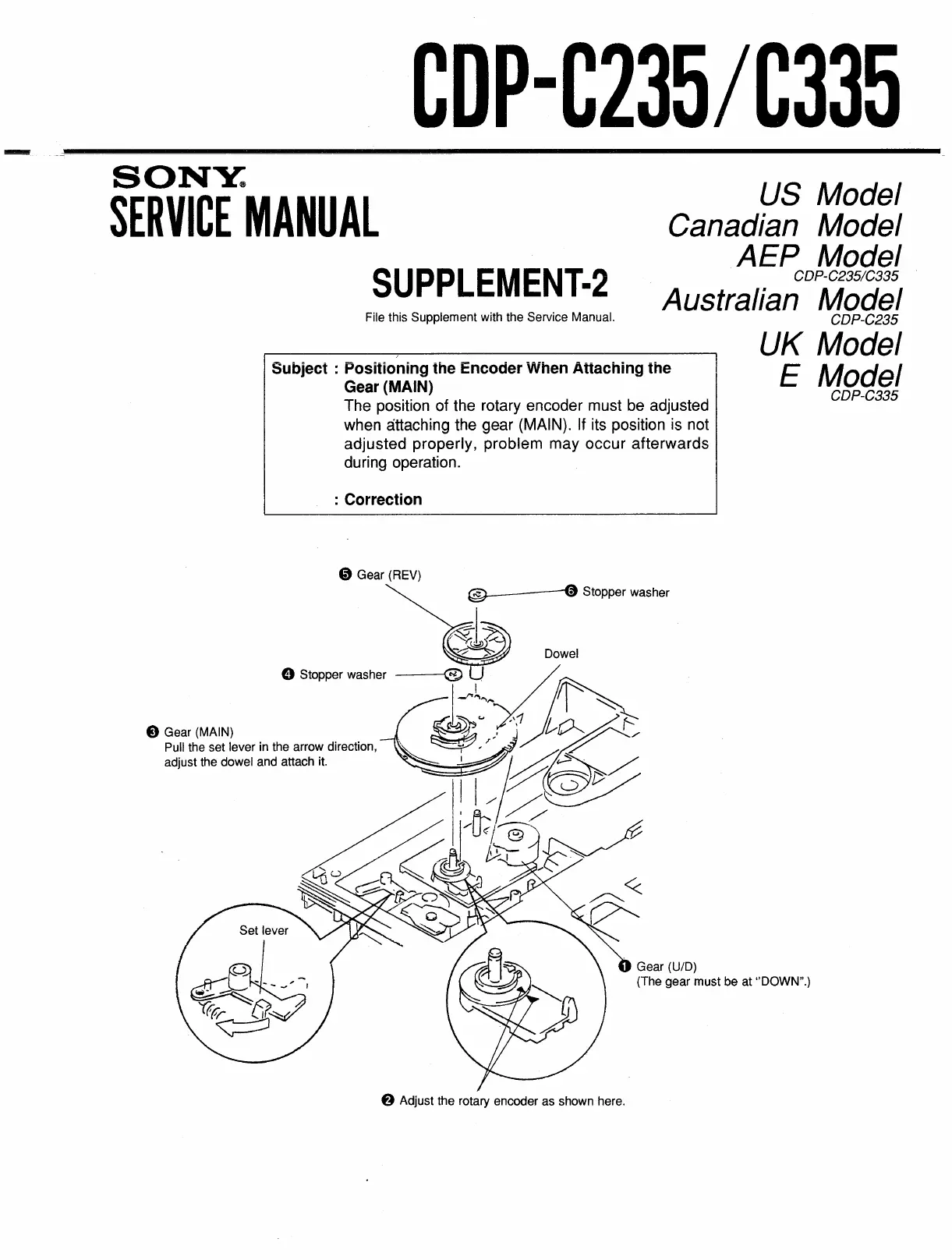

CDP-C235/0335
SERVICE MANUAL Canadian Model
AEP. Model
SU
PPLEM
ENT-2
CDP-C235/C335
Australian Model
UK Model
Subject
:
Positioning
the
Encoder
When
Attaching
the
E
Model
Gear
(MAIN)
The
position
of
the
rotary
encoder
must
be
adjusted
CDP-C335
when attaching the gear (MAIN). If its position is not
File this Supplement with the Service Manual.
adjusted properly, problem may occur afterwards
during operation.
: Correction
© Gear (REV)
©——@ Stopper washer
© Gear (MAIN)
Pull the set lever in the arrow direction,
adjust the dowel and attach it.
Gear (U/D)
(The gear must be at ‘DOWN”.)
© Adjust the rotary encoder as shown here.
