SECTION 7
EXPLODED VIEWS
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.

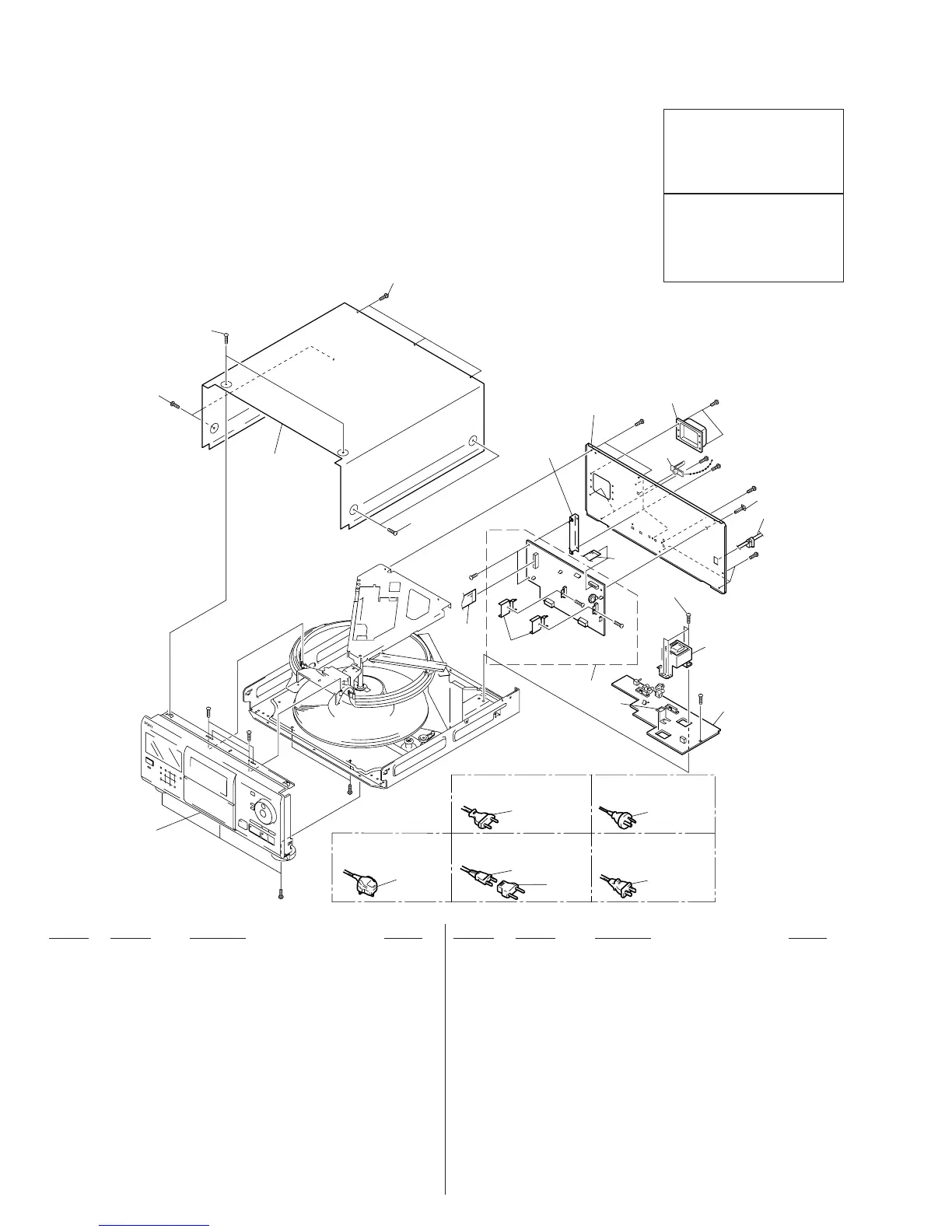

7-1. CASE AND BACK PANEL SECTION
• Abbreviation
CND : Canadian model
G : German model
SP : Singapore model
AUS : Australian model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-363-099-01 SCREW (CASE 3 TP2)
* 2 4-982-946-11 CASE
* 3 A-4699-023-A MAIN BOARD, COMPLETE (US,CND)
* 3 A-4699-024-A MAIN BOARD, COMPLETE (EXCEPT US,CND)
4 1-773-183-11 WIRE (FLAT TYPE) (23 CORE)
5 1-777-345-11 WIRE (FLAT TYPE) (19 CORE)
* 6 4-982-807-01 COVER (FFC)
* 7 4-982-790-01 PANEL, BACK (US)
* 7 4-982-790-11 PANEL, BACK (CND)
* 7 4-982-790-21 PANEL, BACK (AEP,G)
* 7 4-982-790-31 PANEL, BACK (UK)
* 7 4-982-790-41 PANEL, BACK (E,PX)
* 7 4-982-790-51 PANEL, BACK (SP)
* 7 4-982-790-61 PANEL, BACK (AUS)
* 8 3-703-244-00 BUSHING (2104), CORD (EXCEPT E,PX)
8 3-703-571-11 BUSHING (S) (4516), CORD (E,PX)
9 4-956-370-12 BAND, PLUG FIXED (UK,AUS)
* 10 4-962-200-01 PLATE (TR), GROUND
* 11 1-661-459-11 JACK BOARD
12 1-569-007-11 ADAPTOR, CONVERSION 2P (E,PX)
13 4-886-821-11 SCREW, M3 CASE
! CNP901 1-575-042-21 CORD, POWER (US,CND)
! CNP901 1-575-651-21 CORD, POWER (AEP,G,SP)
! CNP901 1-696-027-11 CORD, POWER (E,PX)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! CNP901 1-751-529-11 CORD, POWER (UK)
! T501 1-429-670-11 TRANSFORMER, POWER (US,CND)
! T501 1-429-671-11 TRANSFORMER, POWER (AEP,G,UK,AUS,SP)
! T501 1-429-672-11 TRANSFORMER, POWER (E,PX)
