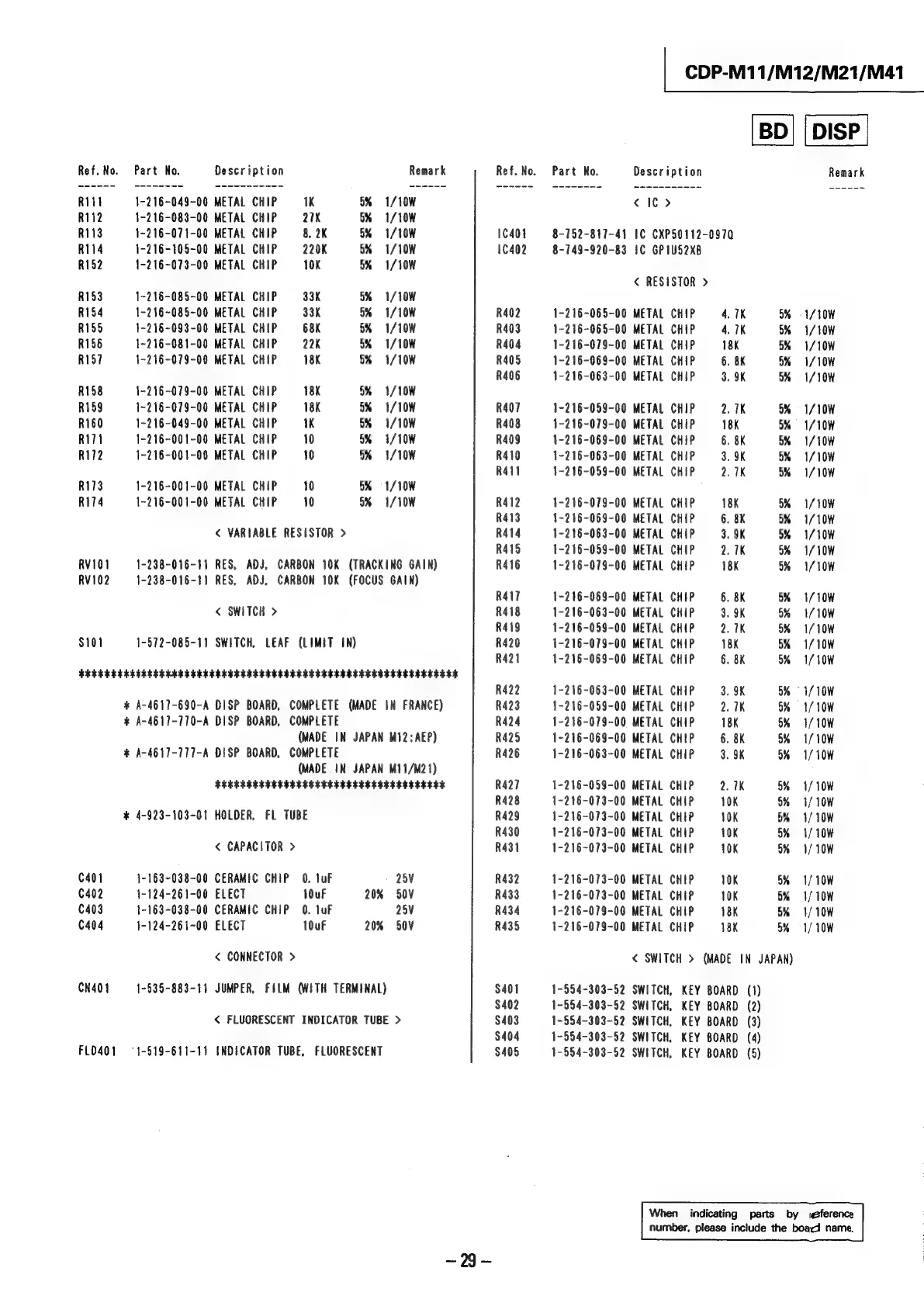

CDP-M11/M12/M21/M41
Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
R1it 1-216-049-00 METAL CHIP 1K 5% 1/10W < IC >
R112 1-216-083-00 METAL CHIP 27K 5% 1/10W
R113 1-216-071-00 METAL CHIP 8. 2K 5% 1/10W 1€4014 8-752-817-41 IC CXP50112-0970
R114 1-216-105-00 METAL CHIP 220K 5% 1/10W 10402 8-749-920-83 1C GPIU52XB
R152 {-216-073-00 METAL CHIP 10K 5% 1/10W
< RESISTOR >
R153 1-216-085-00 METAL CHIP 33K 5% 1/10W
R154 1-216~085-00 METAL CHIP 33K 5% 1/10W R402 1-216-065-00 METAL CHIP 4, 1X 5% = 1/10W
R155 1-216-093-00 METAL CHIP 68K 5% 1/10W R403 1-216-065-00 METAL CHIP 4.7K % «1/10W
R156 1-216-081-00 METAL CHIP 22K 5% 1/10W R404 1-216-079-00 METAL CHIP 18K 5% «1/10W
R157 1-216-079-00 METAL CHIP 18K 5% 1/10W R405 1-216-069-00 METAL CHIP 6. 8k 5% 1/10W
R406 1-216-063-00 METAL CHIP 3. 9K 5% = 1/10W
R158 1-216-079-00 METAL CHIP 18K 5% 1/10W
R159 1-216-079-00 METAL CHIP 18K 5% 1/10 R407 1-216-059-00 METAL CHIP 2. 1K 8% = 1/10W
R160 1-216-049-00 METAL CHIP IK 5% 1/10W R408 1-216-079-00 METAL CHIP 18K 8% = =1/10W
R171 1-216-001-00 METAL CHIP 10 5% 1/10W R409 1-216-069-00 METAL CHIP 6. 8K 5% 1/10W
R172 1-216-001-00 METAL CHIP 10 5% 1/10W R410 1-216-063-00 METAL CHIP 3. 9K 5% 1/10W
R411 1-216-059-00 METAL CHIP 2. 7K 5% 1/10W
R173 1-216-001-00 METAL CHIP 10 5% = 1/10W
R174 1-216-001-00 METAL CHIP 10 5% 1/10W R412 1-216~-079-00 METAL CHIP 18K 9% 1/7 10W
R413 1-216-069-00 METAL CHIP 6. 8K 5% 1/10
< VARIABLE RESISTOR > R414 1-216-063-00 METAL CHIP 3. 9K 5% 17 10W
R416 1-216-059-00 METAL CHIP 2. 7K 5% =1/10W
RVI01 1-238-016-11 RES, ADJ, CARBON 10K (TRACKING GAIN) R416 1-216-079-00 METAL CHIP 18K 5% 1/7 10W
RVI02 1-238-016-11 RES, ADJ, CARBON 10K (FOCUS GAIN)
R4i7 1-216-069-00 METAL CHIP 6. 8k 5% 1/7 10W
< SWITCH > R418 1-216-063-00 METAL CHIP 3. 9K 5% 1/10W
R419 1-216-059-00 METAL CHIP 2. 1K 5% 1/10
$104 1-572-085-11 SWITCH, LEAF (LIMIT IN) R420 1-216-079-00 METAL CHIP 18K 5% 1/10W
R421 1-216-069-00 METAL CHIP 6. 8K 5% 17 10W
RRREREEEE EERE EER ER EERE EREEERERE EEA EERE EE EAEE ERTS EERE EASES
R422 1-216-063-00 METAL CHIP 3. 9K 5% = 1/10W
# A-4617-690-A DISP BOARD, COMPLETE (MADE IN FRANCE) R423 1-216-059-00 METAL CHIP 2. 7K 5% 1/10W
* A-4617-770-A DISP BOARD, COMPLETE R424 1-216-079-00 METAL CHIP 18K 5% 1/7 10W
(MADE IN JAPAN M12:AEP) R425 1-216-069-00 METAL CHIP 6. 8K 5% 1/ 10W
* A-4617-777-A DISP BOARD, COMPLETE R426 1-216-063-00 METAL CHIP 3. 9K 5% «1/10
(MADE IN JAPAN M11/M21)
HREEEREEEESEREREREEREREEREEE EEE REESE R427 1-216-059-00 METAL CHIP 2. 7K 5% =f 10W
R428 1-216-073-00 METAL CHIP 10K 5% =1/10W
* 4-923-103-01 HOLDER, FL TUBE R429 1-216-073-00 METAL CHIP 10K 5% = 1/10W
R430 1-216-073-00 METAL CHIP 10K 5% 1/10W
< CAPACITOR > R431 1-216-073-00 METAL CHIP 10K 5% «1/10
C401 1-163~-038-00 CERAMIC CHIP 0. luF 25V R432 1-216-073-00 METAL CHIP 10K 5% =1/10W
C402 1-124-261-00 ELECT WOuF 20% 50V R433 1-216-073-00 METAL CHIP 10K 5% 1/10W
C403 1-163-038-00 CERAMIC CHIP 0. luF 25V R434 1-216-079-00 METAL CHIP 18K 5% 1/10
C404 1-124-261-00 ELECT lOuF 20% 50V R435 1-216-079-00 METAL CHIP 18K 5% = 1/ 10W
< CONNECTOR > < SWITCH > (MADE IN JAPAN)
CN401
1-535-883-11
JUMPER,
FILM
(WiTH
TERMINAL)
$401
1-554-303-52
SWITCH,
KEY
BOARD
(1)
$402 1-554-303-52 SWITCH, KEY BOARD (2)
< FLUORESCENT INDICATOR TUBE > $403 1-554-303-52 SWITCH, KEY BOARD (3)
$404 1-554-303-52 SWITCH, KEY BOARD (4)
FLD401 = 1-519-6 11-11 INDICATOR TUBE, FLUORESCENT $405 1-554~303-52 SWITCH, KEY BOARD (5)
When indicating parts by ‘eference
number, please include the boacd name,
