SECTION 5
EXPLODED VIEWS
NOTE:
@ —XX, —X mean standardized parts, so @ Items marked “*” are not stocked The components identified by
they may have some differences from since they are seldom required for mark /\ or dotted line with mark
the original one. routine service. Some delay should be A\ are critical for safety.
@ Color Indication of Appearance Parts anticipated when ordering these items. Replace only with part number
Example: @ The mechanical parts with no reference specified.
KNOB, BALANCE (WHITE)...(RED) number in the exploded views are not
. t supplied.
Parts color Cabinet’s color @ Hardware (#mark) list and accessories @ Abbreviation
and packing materials are given in the SP : Singapore G : German
last of this parts list. JE : Tourist IT : Italian

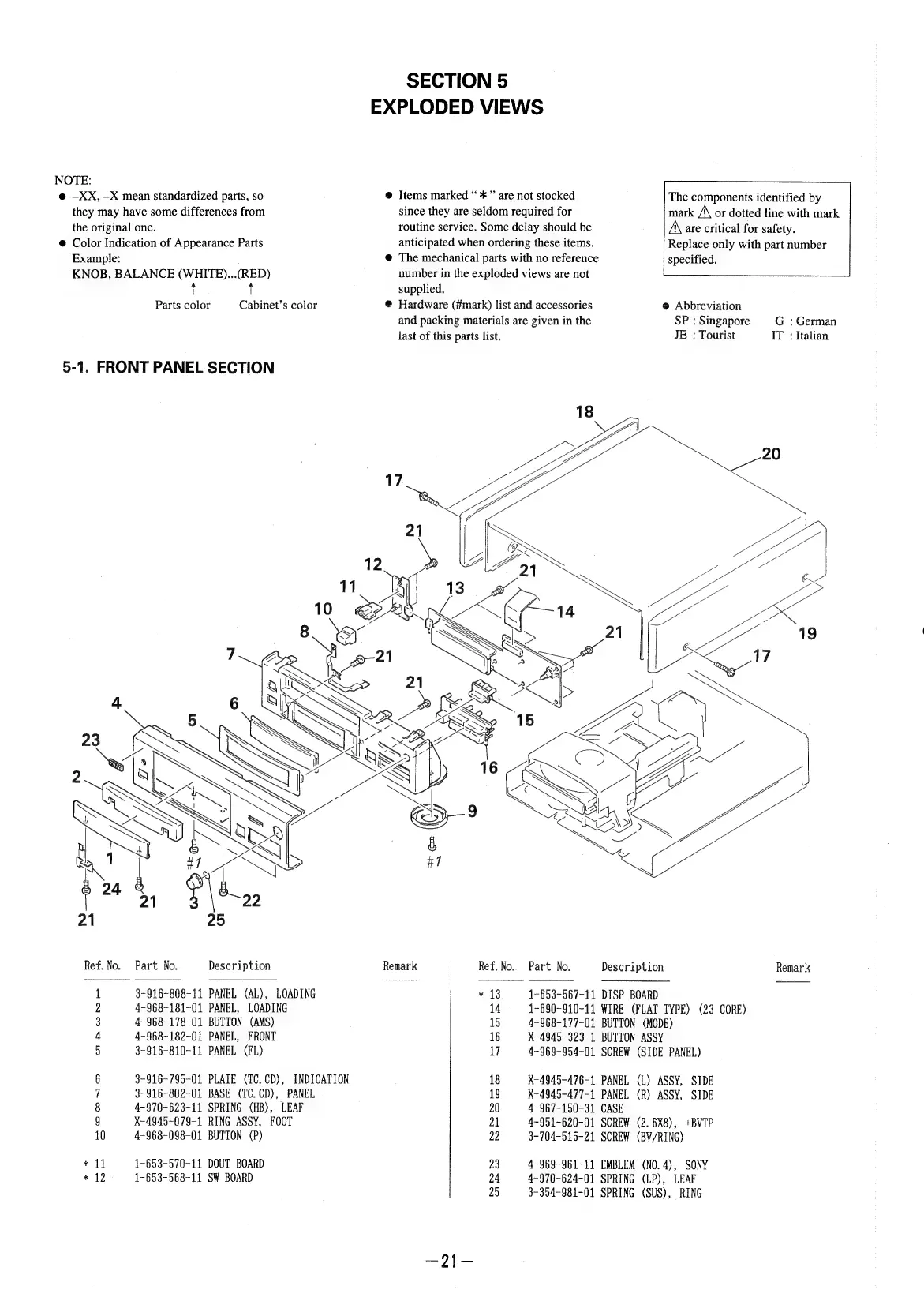

5-1. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No.. Part No. Description Remark
1 3-916~808-11 PANEL (AL), LOADING * 13 1-653-567-11 DISP BOARD
2 4-968-181-01 PANEL, LOADING 14. 1-690-910-11 WIRE (FLAT TYPE) (23 CORE)
3 4-968-178-01 BUTTON (AMS) 15 4-968-177-01 BUTTON (MODE)
4 4-968-182-01 PANEL, FRONT 16 X-4945-323-1 BUTTON ASSY
5 3-916-810-11 PANEL (FL) 17 4-969-954-01 SCREW (SIDE PANEL)
6 3-916-795-01 PLATE (TC.CD), INDICATION 18 X-4945-476-1 PANEL (L) ASSY, SIDE
7 3-916-802-0141 BASE (TC.CD), PANEL 19 X-4945-477-1 PANEL (R) ASSY, SIDE
8 4-970-623-11 SPRING (HB), LEAF 20 4-967-150-31 CASE
9 X-4945-079-1 RING ASSY, FOOT 21 4-951-620-01 SCREW (2. 6X8), +BVTP
10 4-968-098-01 BUTTON (P) 22 3-704-515-21 SCREW (BV/RING)
* 11 1-653-570-11 DOUT BOARD 23 4-96§9-961-11 EMBLEM (NO. 4), SONY
* 12 1-653-568-11 SW BOARD 24 4-970-624-01 SPRING (LP), LEAF
25 3-354-981-01 SPRING (SUS), RING
