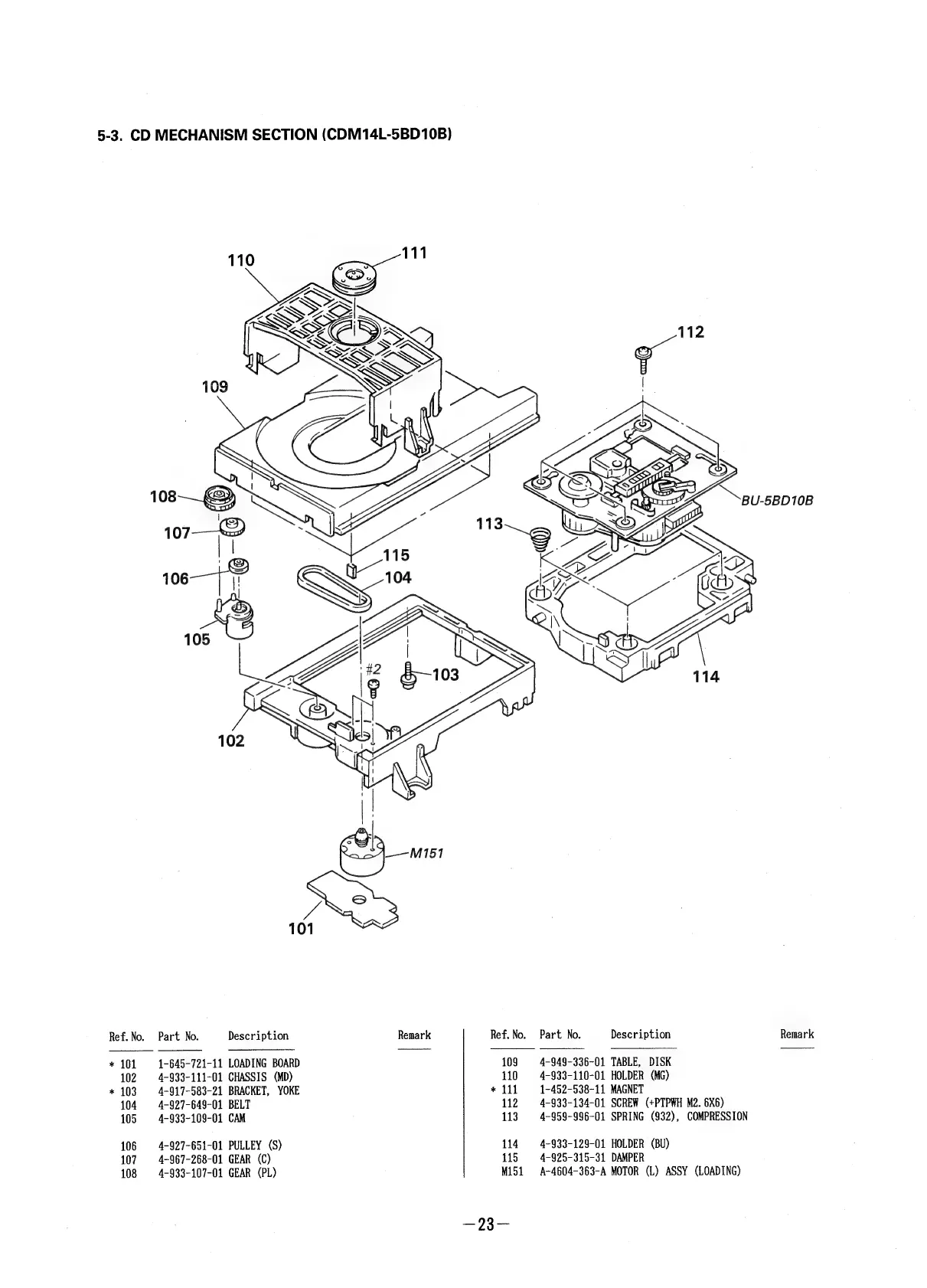

5-3. CD MECHANISM SECTION (CDM14L-5BD10B)
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
* 101 1-645-721-11 LOADING BOARD 109 4-949-336-01 TABLE, DISK
102
4-933-111-01
CHASSIS
(MD)
110
4-933-110-01
HOLDER
(MG)
*
103
4-917-583-21
BRACKET,
YOKE
*
111
1-452-538-11
MAGNET
104. 4-927-649-01 BELT 112 4-933-134-01 SCREW (+PTPWH M2. 6X6)
105
4-933-109-01
CAM
113
4-959-996-01
SPRING
(932),
COMPRESSION
106
4-927-651-01
PULLEY
(S)
114
4-933-129-01
HOLDER
(BU)
107
4-967-268-01
GEAR
(C)
115
4-925-315-31
DAMPER
108
4-933-107-01
GEAR
(PL)
M151
A-4604-363-A
MOTOR
(L)
ASSY
(LOADING)
