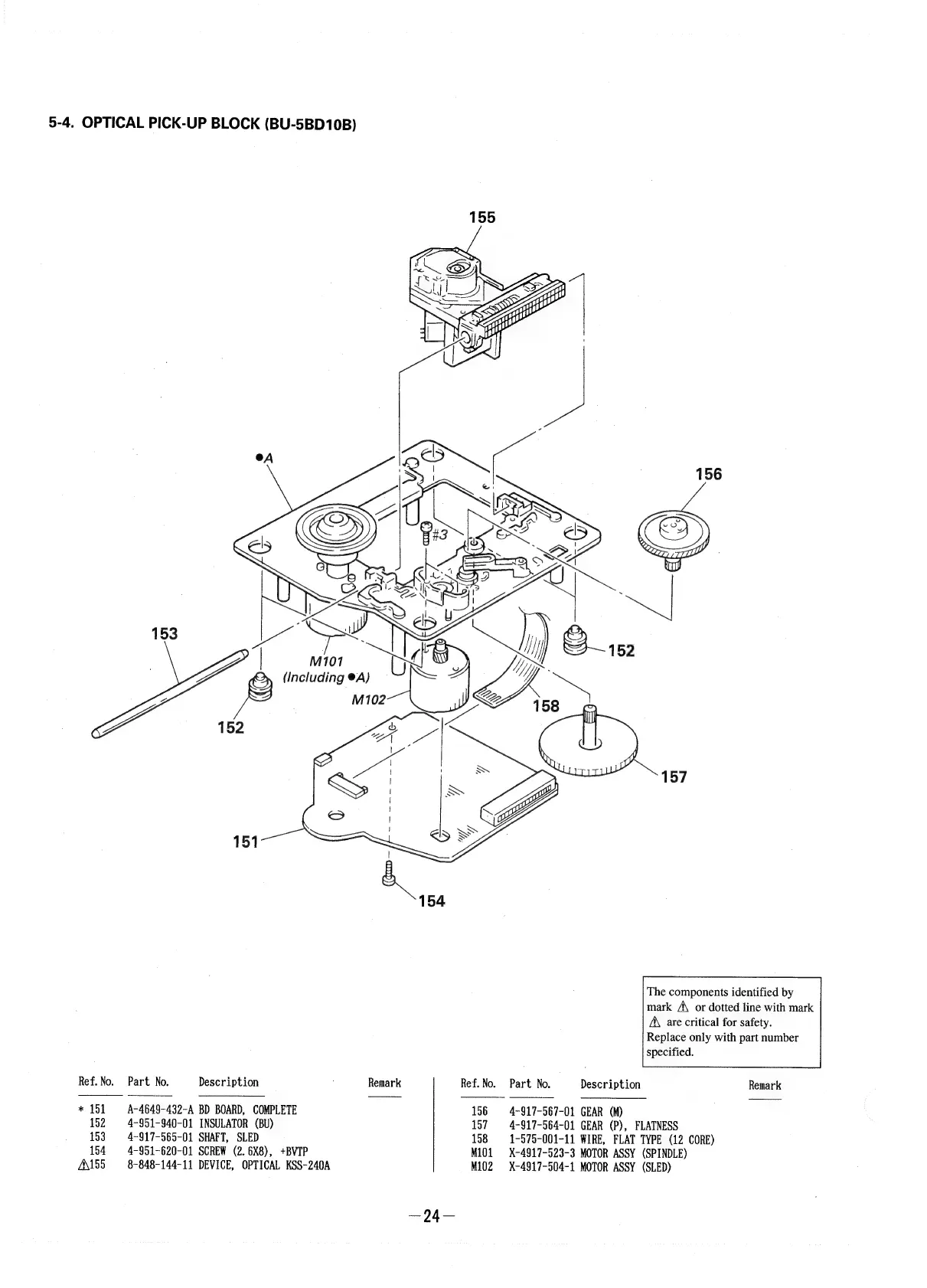

5-4,
OPTICAL
PICK-UP
BLOCK
(BU-5BD10B)
of ean 1]
TR
153 oe 7 |
|
|
M101
“ae
.
Ys
Be (Including @A) = 4 Yy a
152 |
151
Ra
==
ree
o1
N
The components identified by
mark /\ or dotted line with mark
A\ are critical for safety.
Replace only with part number
specified.
Ref.
No.
Part
No.
Description
Remark
Ref.
No.
Part
No.
Description
Remark
*
151
A-4649-432-A
BD
BOARD,
COMPLETE
156
4-917-567-01
GEAR
(M)
152 4-951-940-01 INSULATOR (BU) 157 4-917-564-01 GEAR (P), FLATNESS
153
4~917-565-01
SHAFT,
SLED
158
1-575-001-11
WIRE,
FLAT
TYPE
(12
CORE)
154 4-951~620-01 SCREW (2. 6X8), +BYTP Mi01 X-4917-523-3 MOTOR ASSY (SPINDLE)
A\155
8~-848-144-11
DEVICE,
OPTICAL
KSS-240A
M102
X-4917-504-1
MOTOR
ASSY
(SLED)
