Sony CDP-XB930L - Page 35

35
255
260
262
268
268
268
261
259
263
266
267
267
265
263
264
256
257
255
258
251
252
M151
#4
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
M102
251 4-977-925-01 SPRING(SLIDE BASE),COMPRESSION
252 4-977-926-01 RACK, SLIDE
255 4-977-923-01 SHAFT, SLED
* 256 1-658-708-11 SPINDLE BOARD
257 1-775-990-11 WIRE (FLAT TYPE) (5 CORE)
* 258 4-977-928-01 SPRING (SPINDLE), LEAF
259 4-977-921-01 GEAR (B), FLAT
! 260 8-848-379-31 OPTICAL PICK-UP KSS-213B/K-N
261 1-775-991-11 WIRE (FLAT TYPE) (16 CORE)
* 262 4-993-919-01 SPRING (A) (OP), LEAF
263 4-917-562-01 INSULATOR
* 264 4-977-918-01 BASE (OUTSERT)
265 4-977-920-01 GEAR (C), FLAT
* 266 1-658-709-11 SLED BOARD
267 4-951-620-01 SCREW (2.6 × 8), +BVTP
268 2-279-715-01 RIVET, NYLON
M102 X-4947-303-1 MOTOR ASSY (WITH PULLEY)(SLED)
M151 X-4950-461-1 MOTOR ASSY (SPINDLE)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

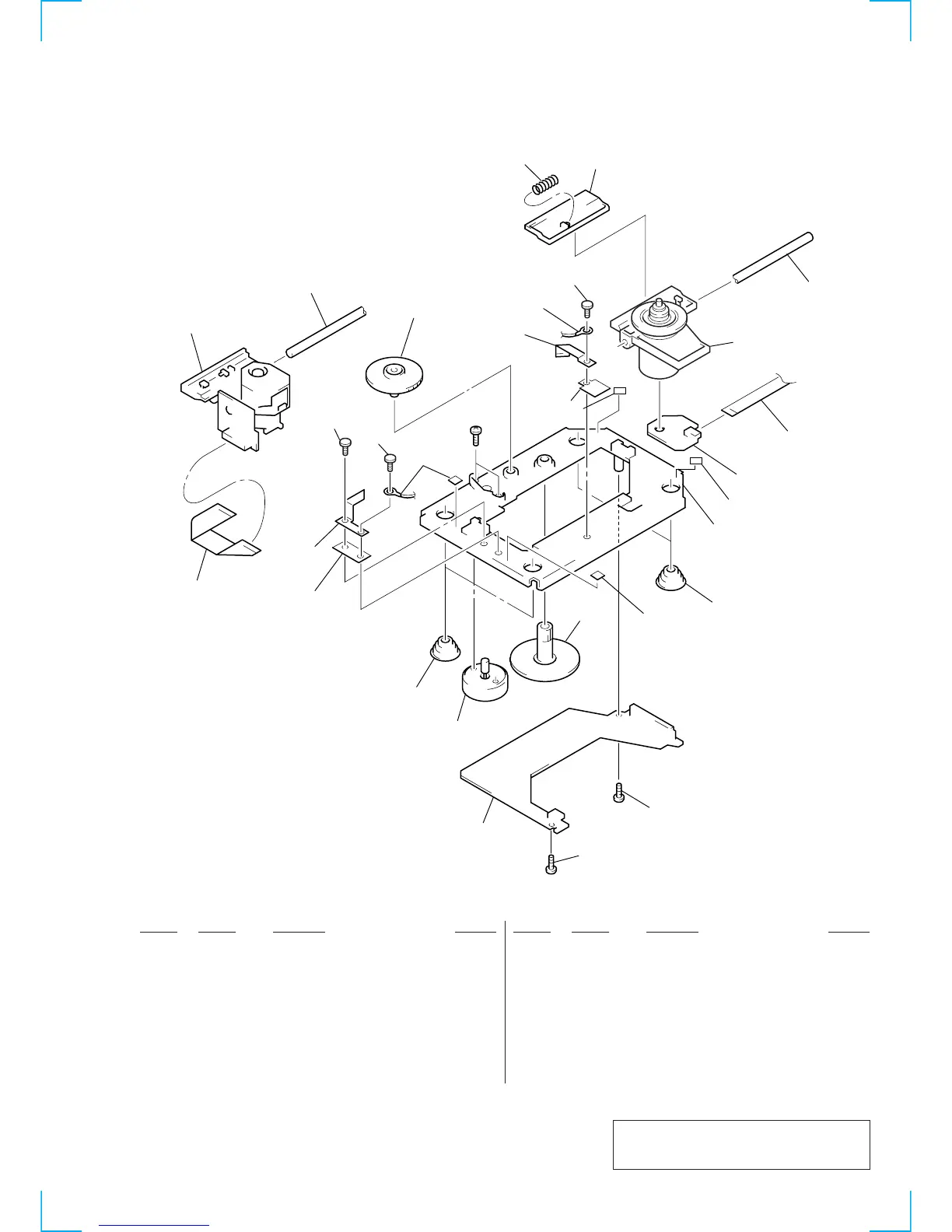

7-5. BASE UNIT SECTION (BU-14D)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
