– 55 –

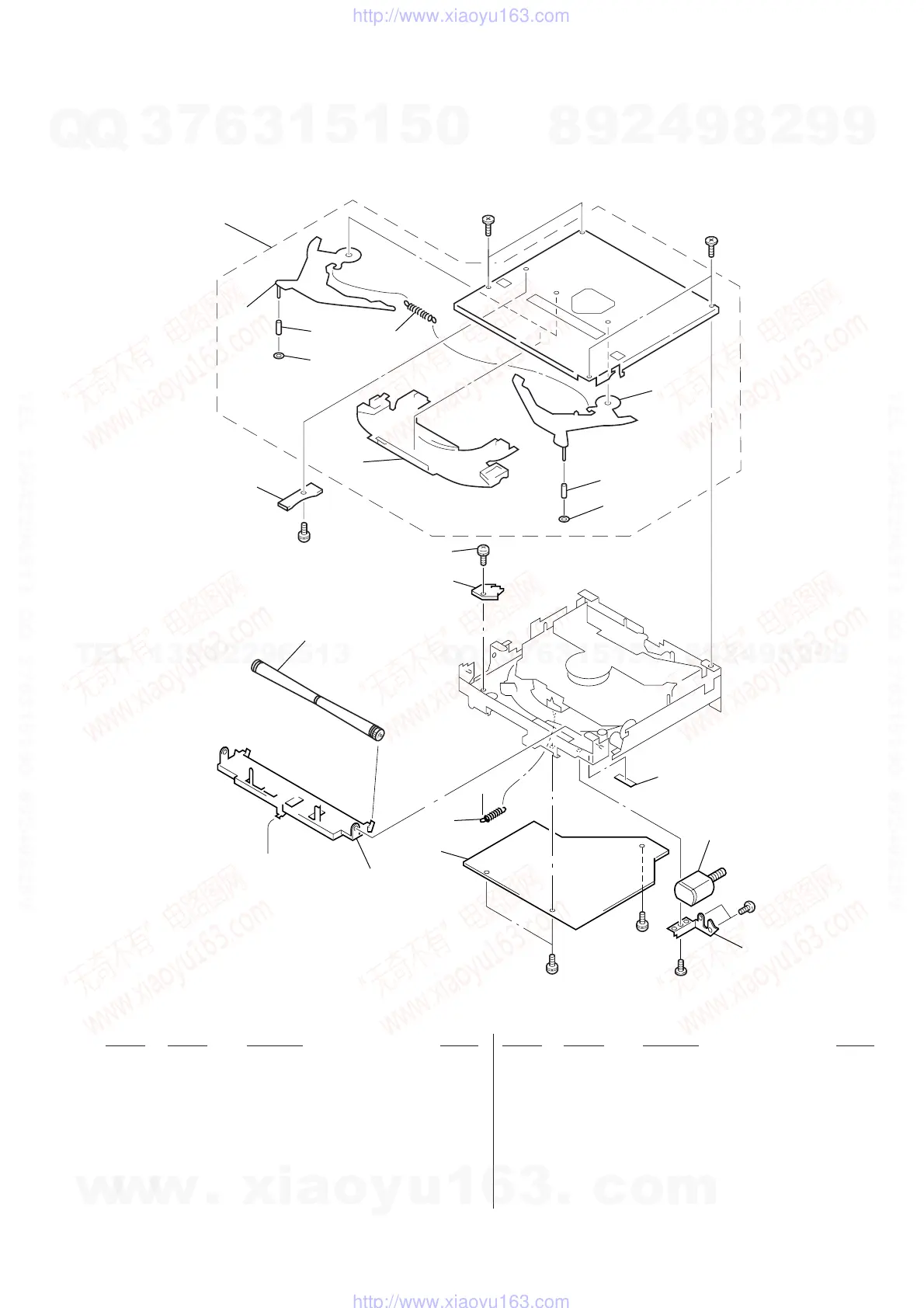

5-3. CD MECHANISM SECTION (1)
(MG-363X-121)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
102
104
111
112
103
109
101
107
111
112
105
106
108
114
115
110
113
116
#8
#8
#7
#7
#7
#8
#9
M903
E
E
* 101 1-659-836-11 DISC IN SW BOARD
* 102 A-3291-816-B CHASSIS (T) SUB ASSY
103 3-931-909-01 SPRING (LR), TENSION
104 X-3371-501-1 LEVER (L) ASSY
105 3-338-737-01 SCREW (2X3), + PS
* 106 1-659-837-11 LOAD SW BOARD
107 X-3371-502-1 LEVER (R) ASSY
108 A-3301-203-A ROLLER ASSY
109 3-931-908-01 GUIDE (DISC)
110 3-931-902-03 ARM (ROLLER)
111 3-936-756-01 ROLLER (D)
112 3-321-393-01 WASHER, STOPPER
* 113 3-939-139-01 SPACER
114 3-931-916-01 SPRING (RA), TENSION
* 115 A-3309-227-A SERVO BOARD, COMPLETE
* 116 3-007-530-01 BRACKET (MOTOR)
M903 A-3291-676-A MOTOR SUB ASSY, LOADING
