– 57 –

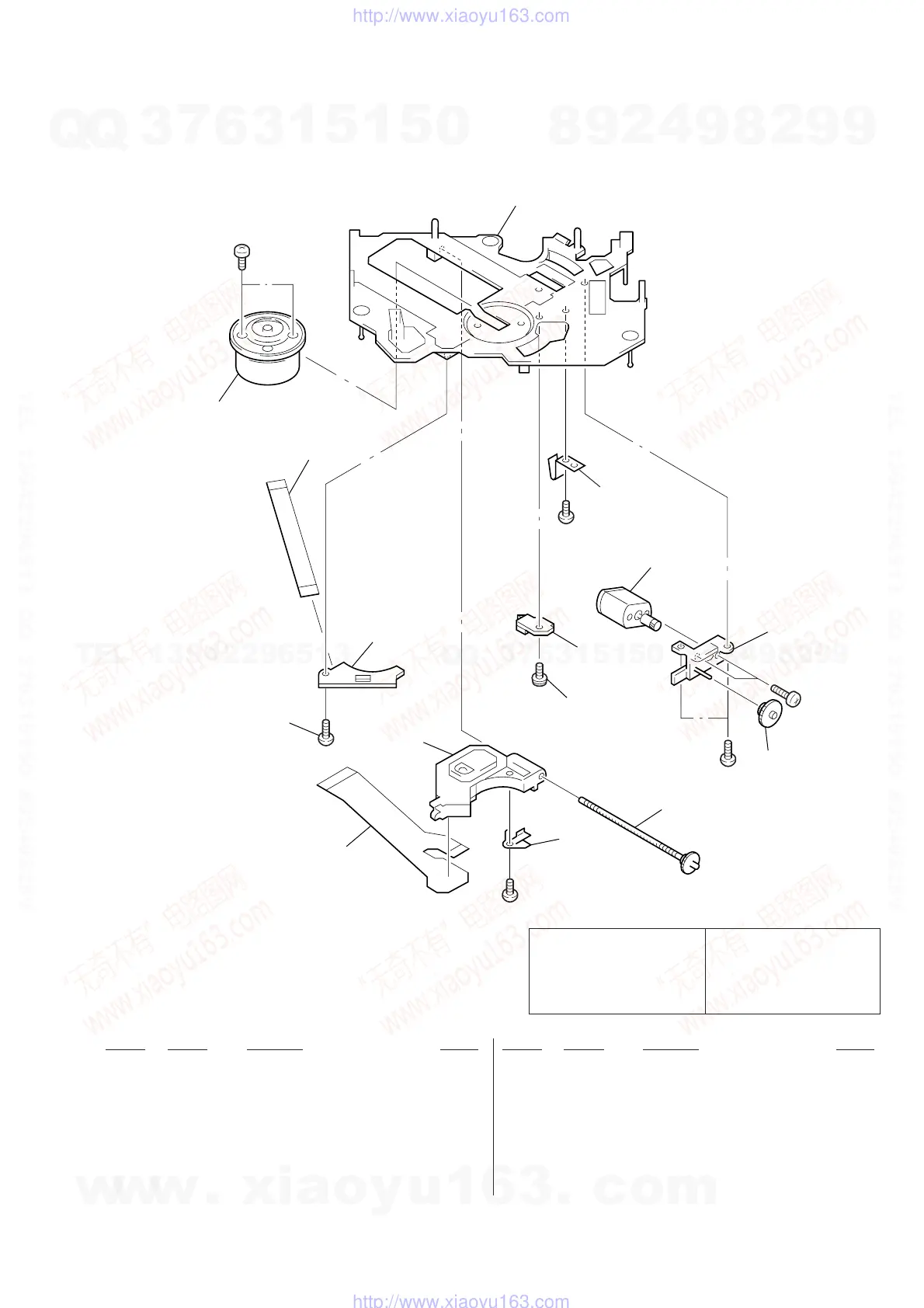

5-5. CD MECHANISM SECTION (3)
(MG-363X-121)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
#6
M901
#9
#8
#8
#5
M902
212
211
209
210
213
208
205
206
204
203
202
207
201
* 201 X-3374-022-1 CHASSIS (OP) (O/S) ASSY
202 3-931-829-01 SPRING (SL), PLATE
203 X-3371-504-1 BASE (DRIVING) ASSY
204 3-931-832-01 GEAR (SL MIDWAY)
* 205 1-659-835-12 LIMIT SW BOARD
206 3-338-737-01 SCREW (2X3), + PS
207 1-659-880-11 MOTOR FLEXIBLE BOARD
* 208 1-659-834-11 SUB BOARD
209 3-909-607-01 SCREW
! 210 8-820-010-06 PICK-UP, OPTICAL KSS-521A/K1RP
211 3-931-834-01 SPRING (FEED), PLATE
212 1-659-881-11 PICK-UP FLEXIBLE BOARD
213 A-3291-669-A SHAFT (FEED) ASSY
M901 X-3371-664-2 MOTOR ASSY (SPINDLE)
M902 A-3291-674-A MOTOR ASSY, SLED
