Sony CDX-CA590X - CD Mechanism Section (1)

32
CDX-CA540X/CA590X

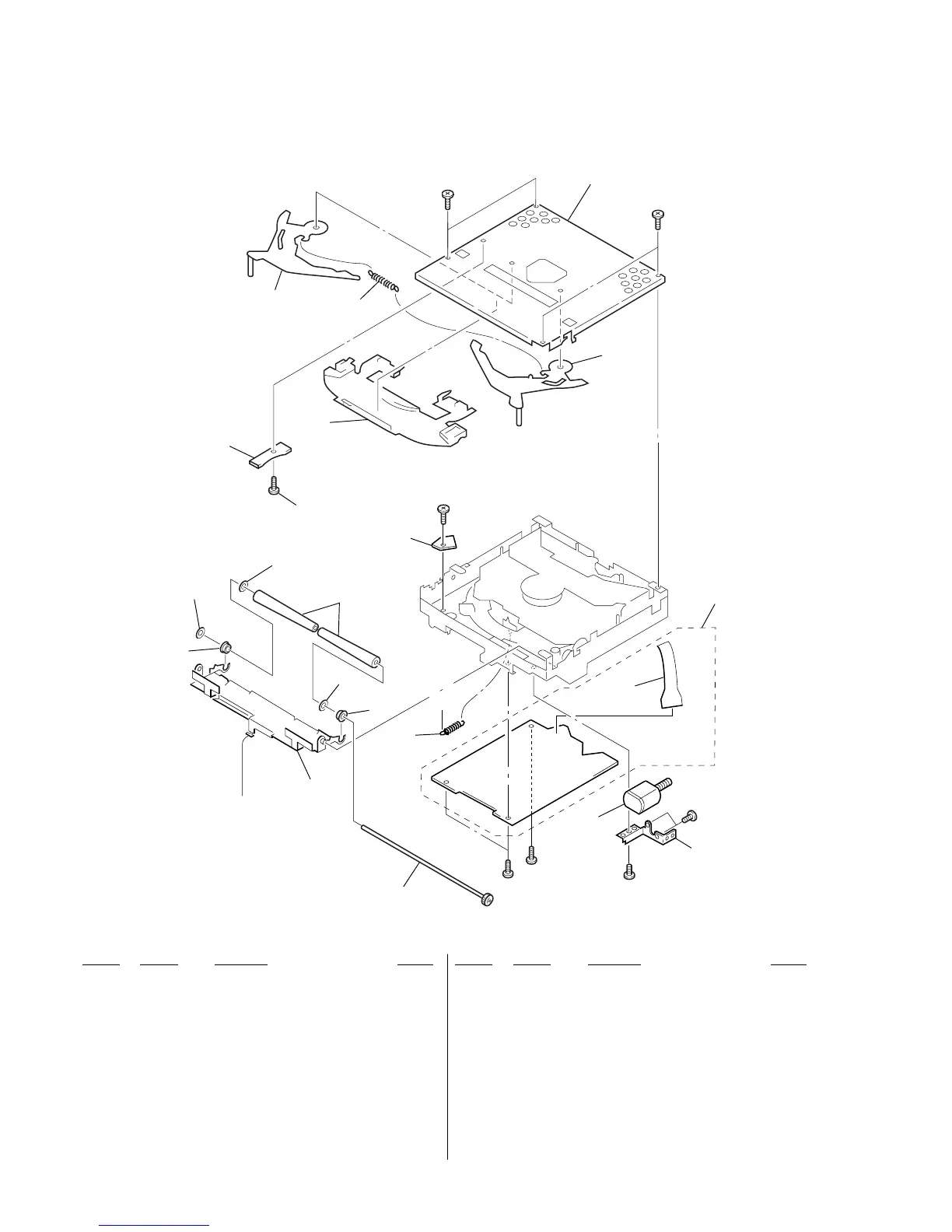

4-3. CD MECHANISM SECTION (1)
(MG-393XC-121//K)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
102
104
103
109
101
107
105
105
108
114
114
115
116
106
113
111
110
112
117
118
#8
#8
#7
#7
#7
#8
#6
M903
C
C
101 1-683-283-11 IN SELF SW BOARD
102 3-040-039-03 CHASSIS (T)
103 3-040-038-01 SPRING (LR), TENSION
104 3-040-050-01 LEVER (L)
105 3-040-022-01 RETAINER (ROLLER), SHAFT
106 3-040-044-01 ROLLER (S)
107 3-040-067-01 LEVER (R)
108 A-3301-980-A SHAFT ROLLER ASSY
109 3-040-037-01 GUIDE (DISC)
110 3-040-040-03 ARM (ROLLER)
111 A-3283-233-A SERVO BOARD, COMPLETE
112 3-221-779-02 BRACKET (MOTOR)
113 3-040-034-01 SPRING (RA), TENSION
114 3-040-042-01 WASHER
115 3-043-880-01 RING (RA), RETAINING
116 3-044-206-11 SCREW, SPECIAL
117 1-683-284-11 FLEXIBLE BOARD
118 1-685-337-11 LOAD SW BOARD
M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)
#6 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3
#7 7-628-253-00 SCREW, SPECIAL
#8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
