CDX-GT55UIW/GT550UI/GT600UI
9
Note: Follow the disassembly procedure in the numerical order given.

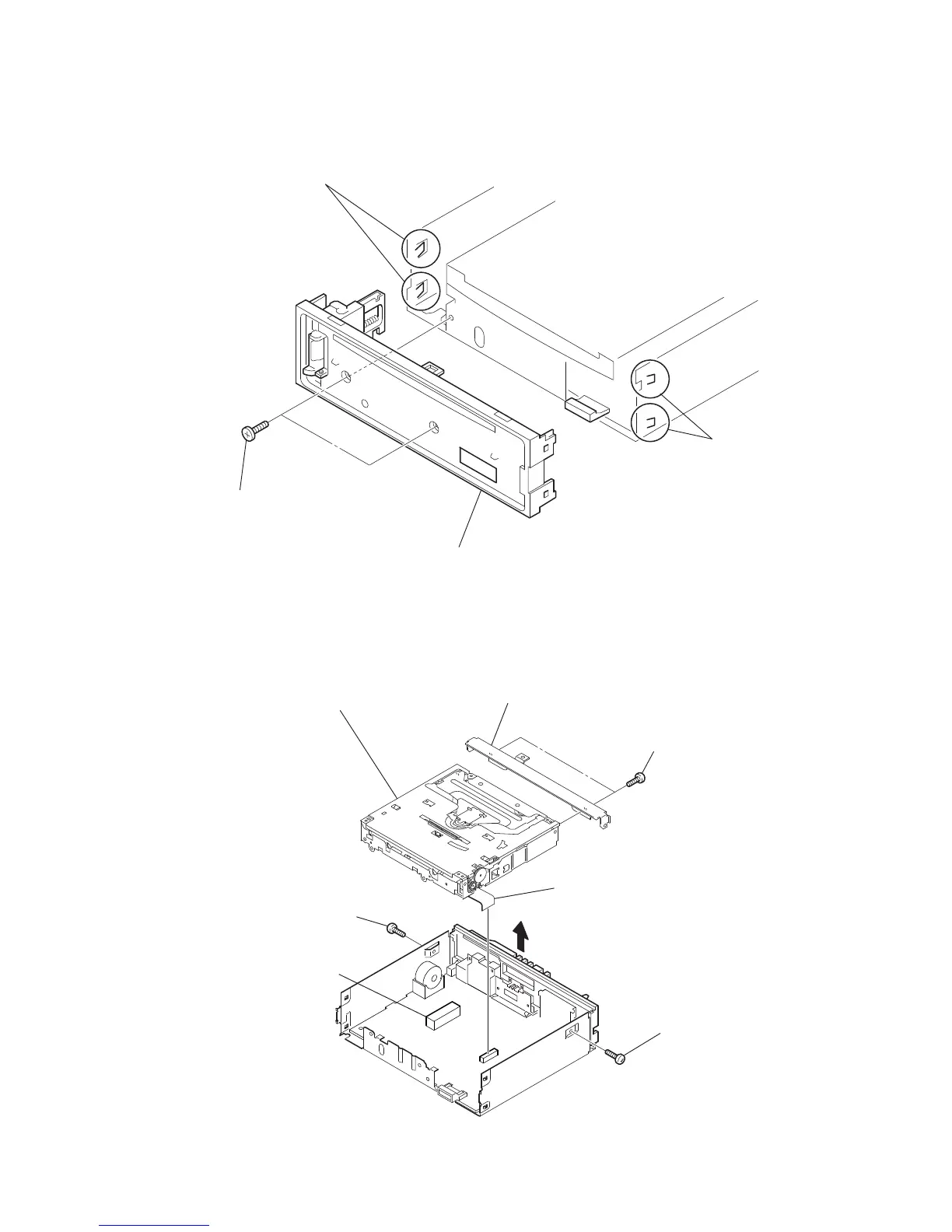

3-1. SUB PANEL ASSY
3-2. CD MECHANISM BLOCK
2 two claws
3 two claws
4 sub panel assy
1 two
screws
(+PTT 2.6
u
6)
4 CN701
3
1
screw
(+PTT 2.6
u
6)
2
screw
(+PTT 2.6
u
6)
6 two
screws
(+PTT 2.6
u
4)
7 bracket (CD)
8 CD mechanism block
5 wire (flat type) (13 core)
(CN402)
