4
CDX-GT61UI/GT610UI
SECTION 1
SERVICE NOTE
SERVO BOAR
CN2
MAIN BOARD
CN350
J-2502-076-1

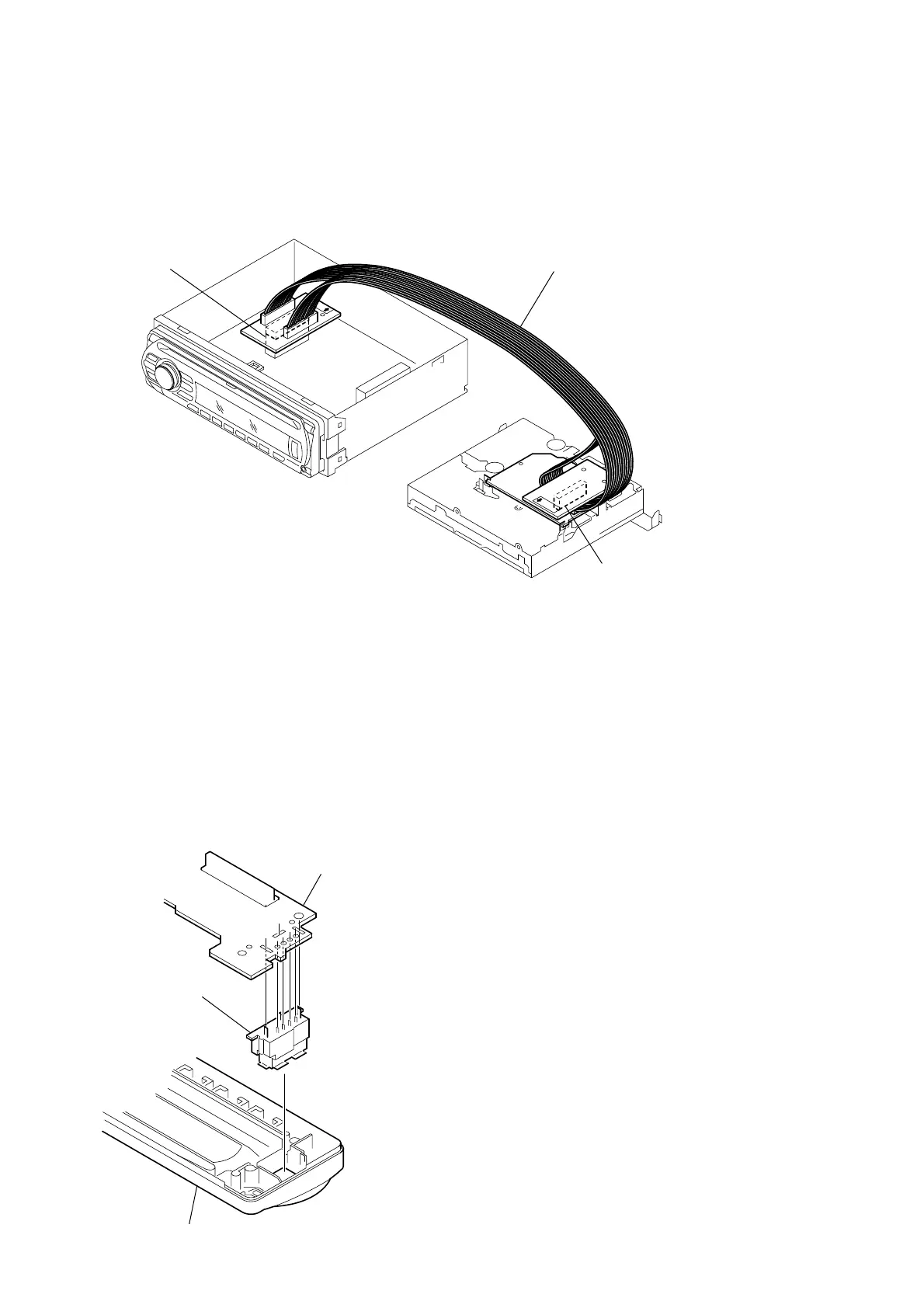

EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)
as shown below.
• Connect the MAIN board (CN350) and the SERVO board (CN2)
with the extension cable (Part No. J-2502-076-1).
NOTE FOR THE 24-PIN CONNECTOR (CN901)
Do not use alcohol to clean the 24-pin connector (CN901) connecting
the front panel with the main body.
Do not touch the connector directly with your bare hand. Poor contact
may be caused.
NOTE FOR REPLACEMENT OF THE SERVO BOARD
When repairing, the complete SERVO board (A-1206-357-A) should
be replaced since any parts in the SERVO board cannot be repaired.
NOTE FOR REPLACEMENT OF THE USB CONNECTOR
(CN902)
To replace the USB connector requires alignment.
1. Insert the USB connector into the front panel.
2. Place the KEY board on the front panel and align the terminals
of the USB connector with the holes in the KEY board.
3. Solder the four terminals of the connector.
KEY boar
front panel
USB (socket) connector
To Next Page
