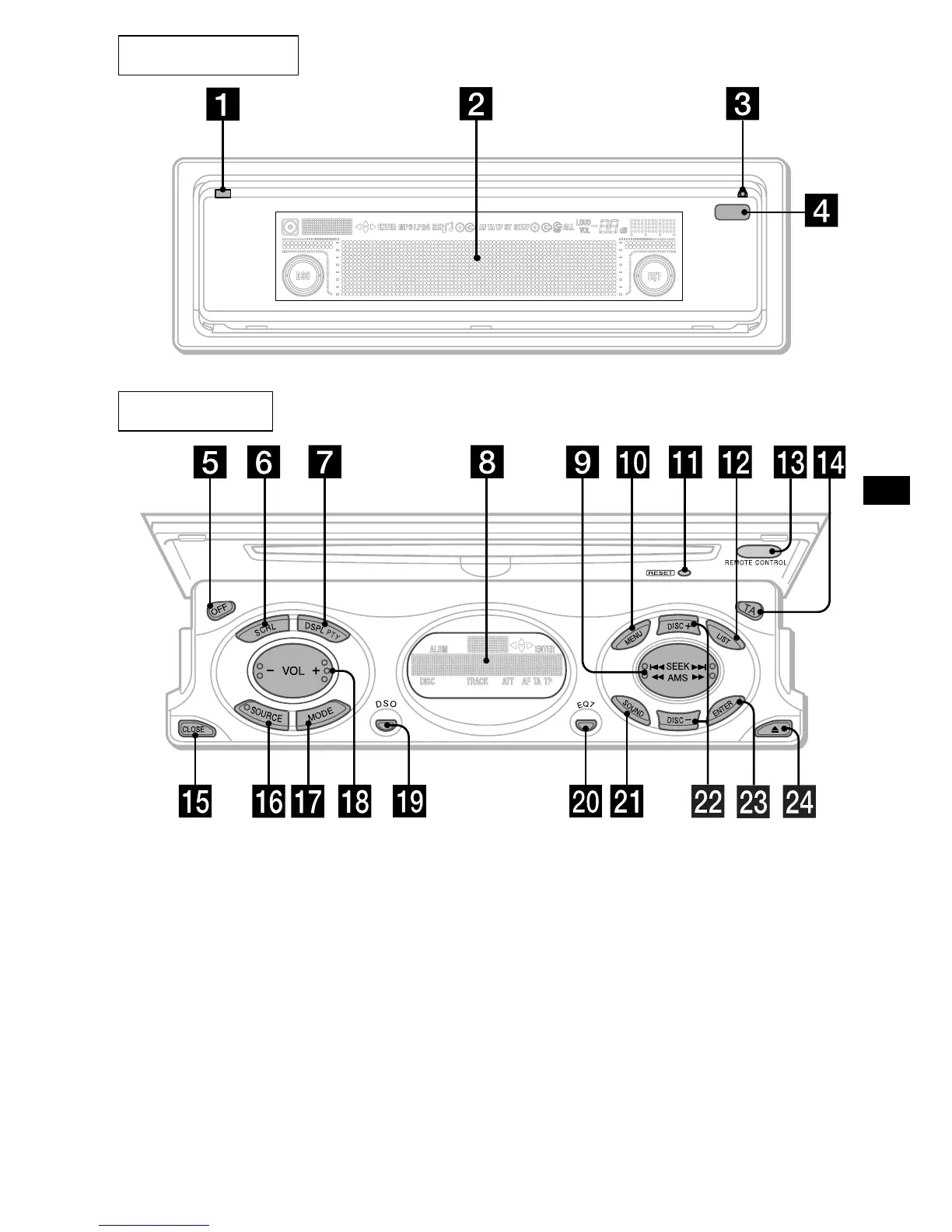

Sony CDX-M630 - Unit Controls Overview; Main Display Side; Operation Side

5
The buttons on the unit share the same
functions as those on the card remote
commander.
a OPEN button 8, 26
b Main display window
c qa RESET button 8
d qd Receptor for the card remote
commander
e OFF (Stop/Power off) button*
f SCRL (scroll) button
g DSPL PTY (display mode change/
programme type) button
h Sub display window
i SEEK/AMS (.m/M>) button
j MENU button
l LIST button
n TA button 17
o
CLOSE (front panel close) button
p SOURCE button
q MODE button
r VOL (–/+) button
s DSO button
t EQ7 button
u SOUND button
v DISC (+/–) buttons
w ENTER button
x Z (eject) button 9
Main display side
Operation side
CDX-M630
continue to next page t
