– 11 –

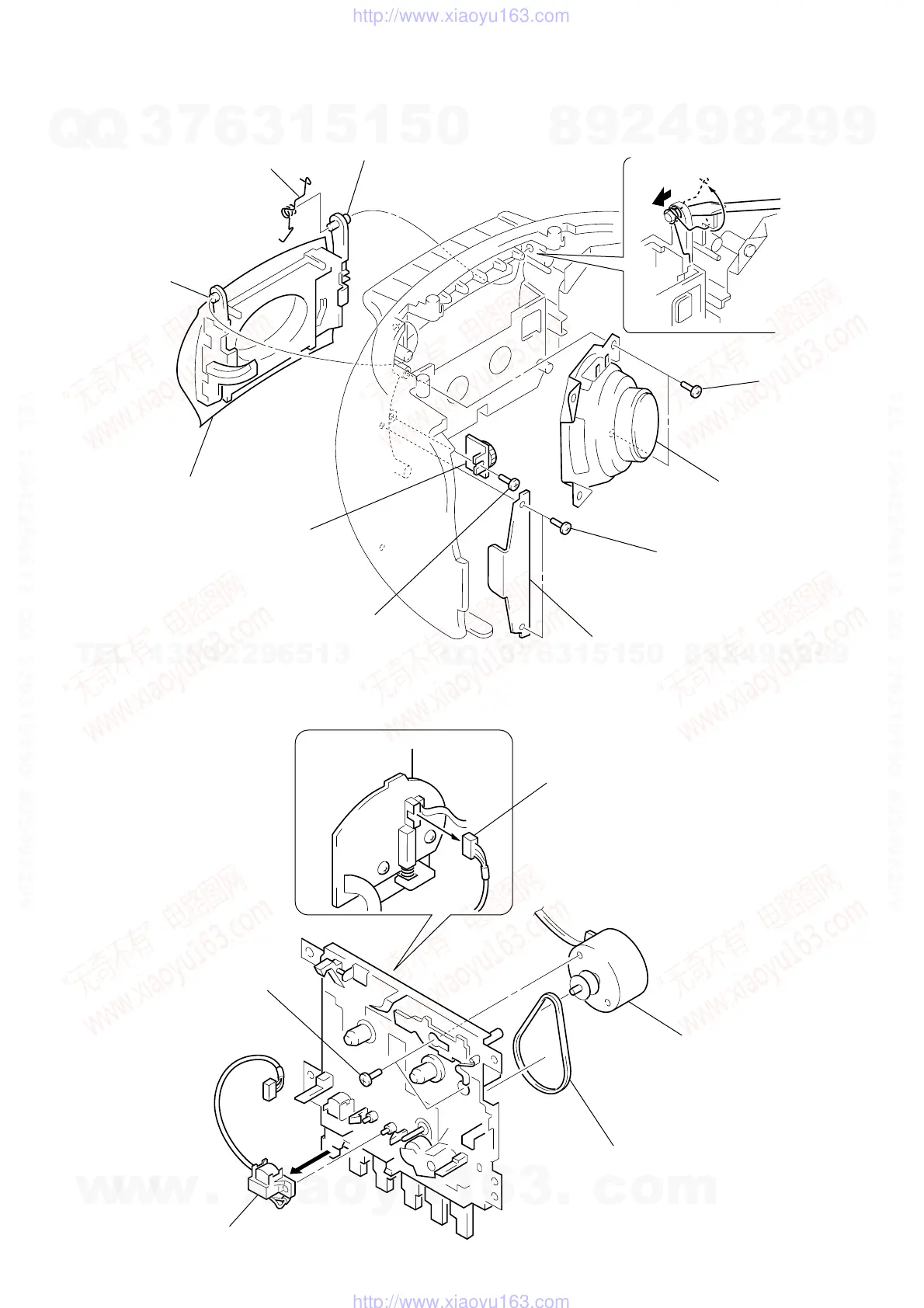

CASSETTE LID ASSY AND CASSETTE HOLDER
HEAD (HRP301), MOTOR ASSY (M301) AND BELT
7
spring
(cassette)
8
boss
8
boss
3
two screws
(BVTP3
×
10
)
4
speaker (R ch)
1
two screws
(BVTP3
×
10)
2
bracket (SP)
5
screw
(BVTP3
×
10)
6
damper
9
cassette lid assy and
cassette holder
3
two screws
(B2.6
×
5)
1
connector
(CNP301)
4
motor assy (M301
)
5
belt
2
head (HRP301)
