Sony CFD-E55L Service Manual

– 7 –
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
Note: Follow the disassembly procedure in the numerical order given.

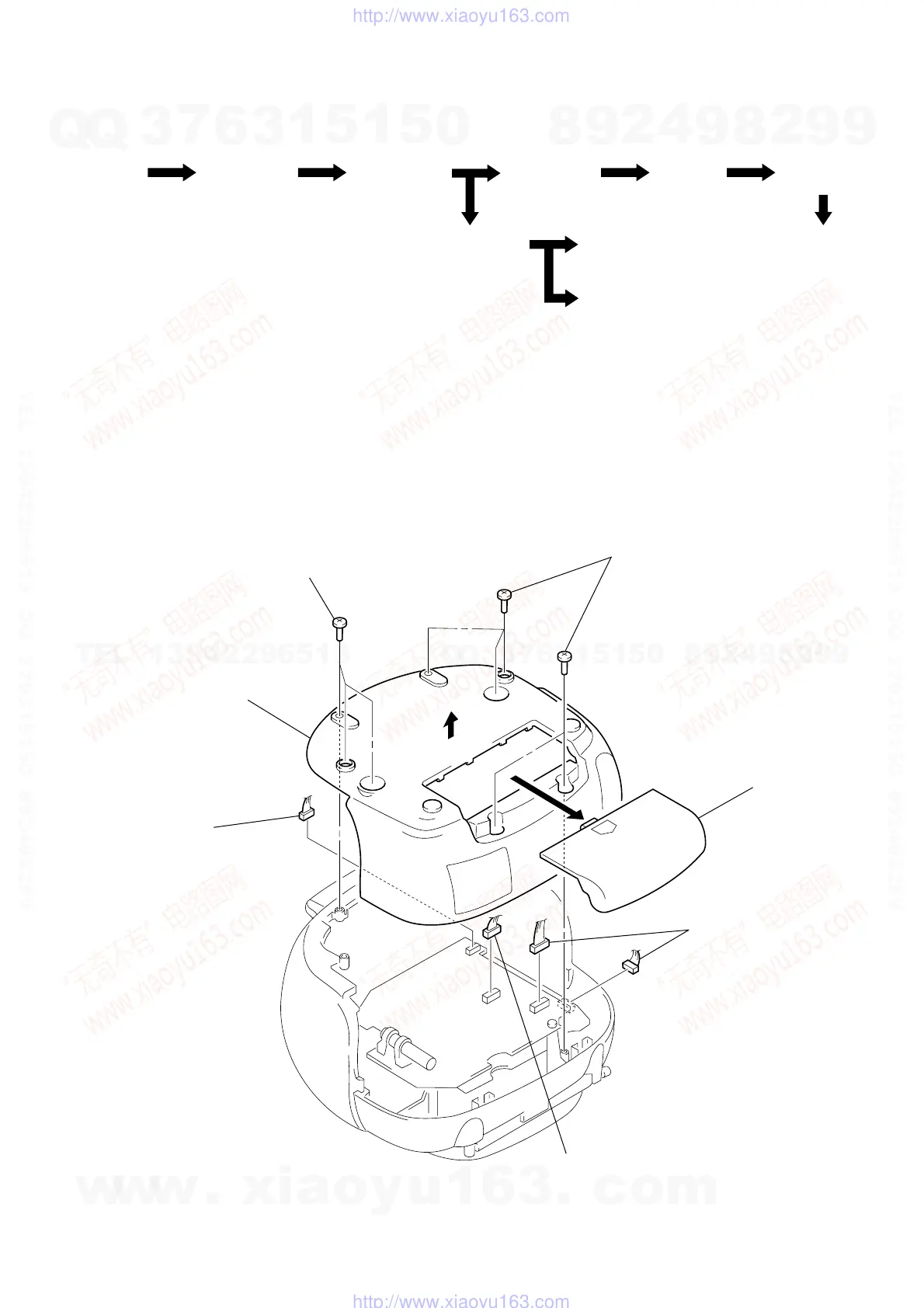

LOWER CABINET SECTION
Set
Lower cabinet
section
MAIN board
Tape mechanism
deck section
Cassette lid assy
and cassette holder
Head (HRP301), Motor assy (M301)
and belt
CD board
Optical pick-up
section
Front cabinet
section
CD lid
section
2 three screws
(BTP3
× 12)
3 lower cabinet section
4 connector
(CNP310)
2 five screws
(BTP3
× 12)
1 battery case li
d
4 two connectors
(CNP704, CNP308)
4 connector
(CNP307)
