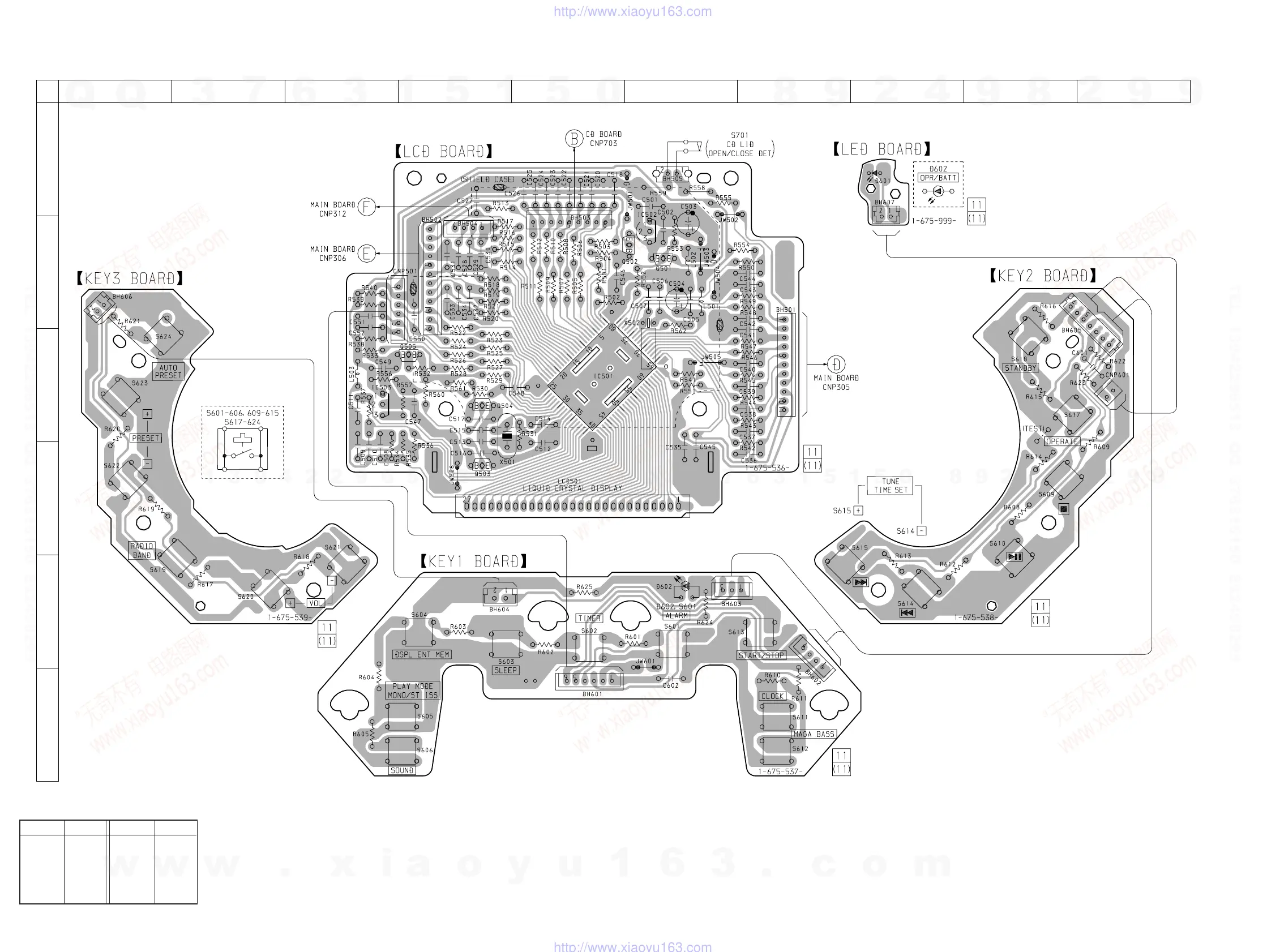

6-11. PRINTED WIRING BOARDS – DISPLAY Section – • See page 26 for Circuit Boards Location.
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• b : Pattern from the side which enables seeing.
Ref. No. LocationRef. No. Location
• Semiconductor Location
D601 A-8
D602 A-8
IC501 C-5
IC502 B-6
IC503 C-3
Q501 B-6
Q502 B-6
Q503 D-4
Q504 C-4
Q505 C-4
