– 57 –

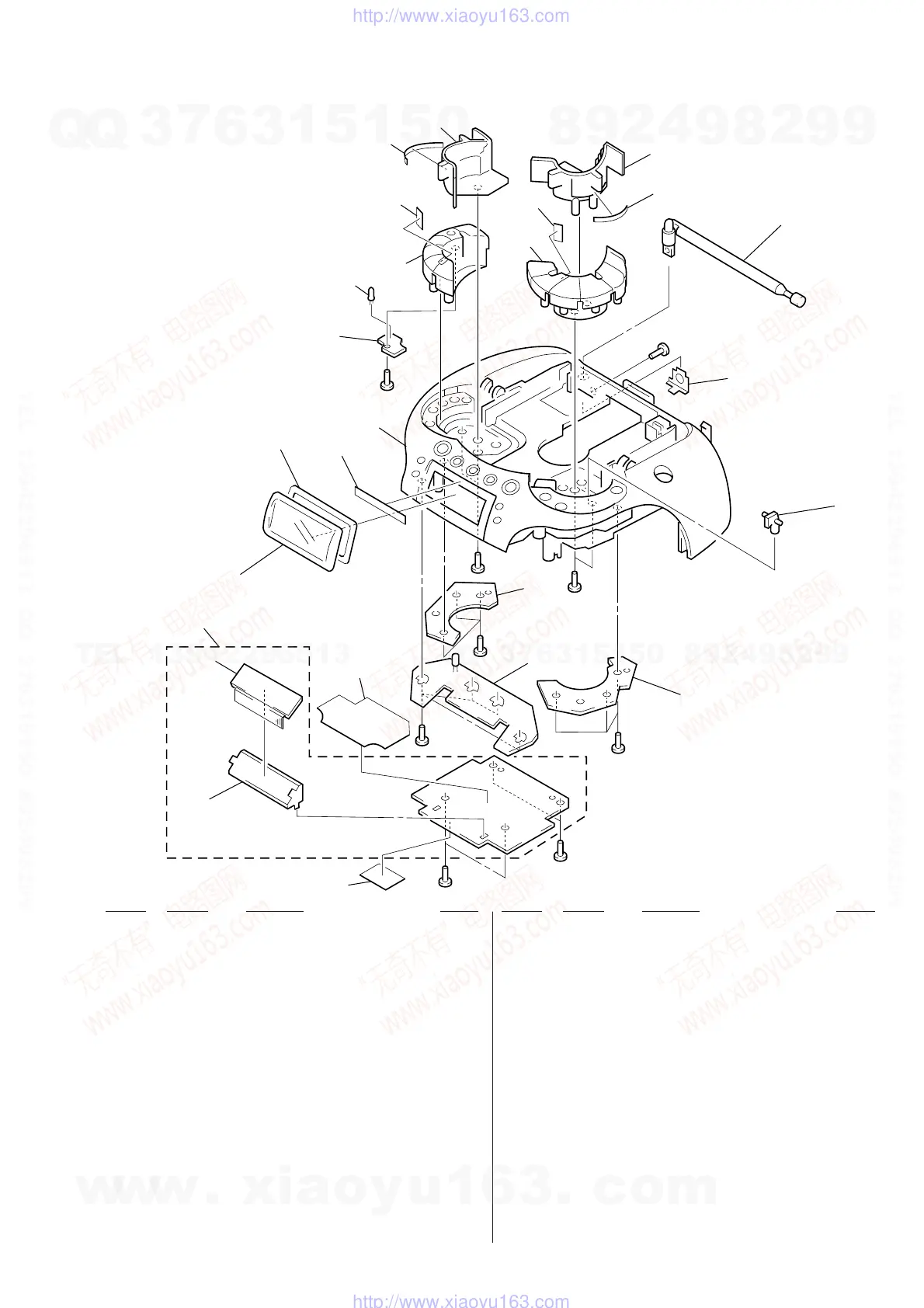

(4) UPPER CABINET SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 151 A-3322-188-A LCD BOARD, COMPLETE
* 152 3-039-322-01 BRACKET (LCD)
153 3-039-334-01 SHEET (LCD), ADHESIVE
154 3-039-337-01 WINDOW (LCD) (SILVER)
154 3-039-337-11 WINDOW (LCD) (GREEN)
154 3-039-337-21 WINDOW (LCD) (BLUE)
155 X-3378-409-1 CABINET (UPPER) SUB ASSY (SILVER)
155 X-3378-410-1 CABINET (UPPER) SUB ASSY (GREEN)
155 X-3378-411-1 CABINET (UPPER) SUB ASSY (BLUE)
156 3-039-339-61 BUTTON (CD) (SILVER)
156 3-039-339-71 BUTTON (CD) (GREEN)
156 3-039-339-81 BUTTON (CD) (BLUE)
157 3-039-340-01 BUTTON (TUNE) (SILVER)
157 3-039-340-11 BUTTON (TUNE) (GREEN)
157 3-039-340-21 BUTTON (TUNE) (BLUE)
158 3-039-326-02 TERMINAL, ANTENNA
159 3-041-268-01 LEVER (CD) (SILVER)
159 3-041-268-11 LEVER (CD) (GREEN)
159 3-041-268-21 LEVER (CD) (BLUE)
* 160 1-675-538-11 KEY 2 BOARD
* 161 1-675-539-11 KEY 3 BOARD
* 162 1-675-537-11 KEY 1 BOARD
* 163 3-039-314-01 COVER (L) (SILVER)
163 3-039-314-11 COVER (L) (GREEN)
163 3-039-314-21 COVER (L) (BLUE)
164 3-039-315-01 COVER (R) (SILVER)
164 3-039-315-11 COVER (R) (GREEN)
164 3-039-315-21 COVER (R) (BLUE)
165 A-3328-831-A LED BOARD, COMPLETE
166 3-040-819-02 PLATE (LCD), SHIELD
167 3-041-117-01 SHEET (LCD)
168 3-831-441-11 CUSHION (A)
169 3-042-520-01 CUSHION (C)
170 8-719-038-29 DIODE SLP-181B-51
ANT1 1-501-820-11 ANTENNA, TELESCOPIC (FM)
LCD501 1-803-763-11 DISPLAY PANEL, LIQUID CRYSTAL
